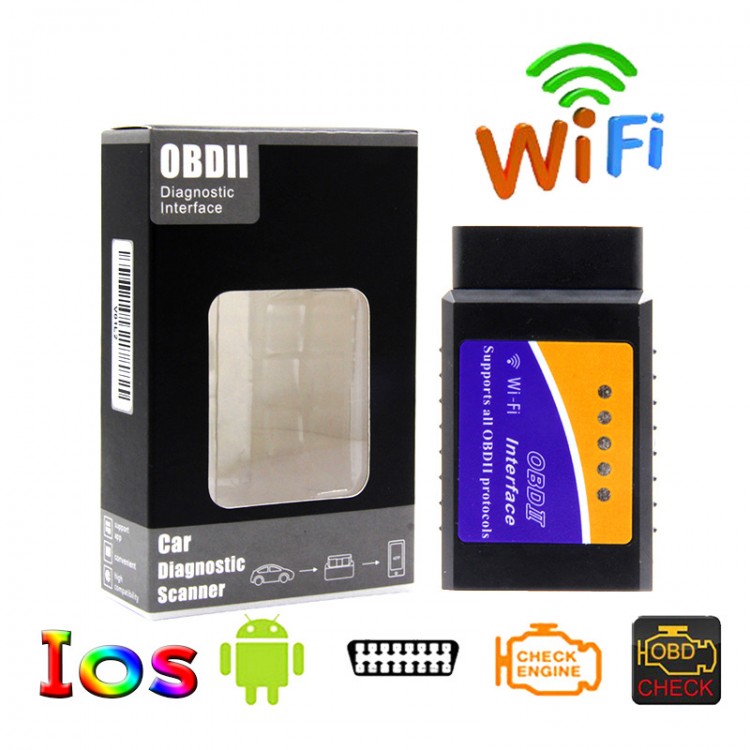

OBD2 Scanner Car Diagnostic Code Reader Wifi Version for IOS Android Windows System

OBD2 Scanner Car Diagnostic Code Reader Wifi Version for IOS Android Windows System

Description:
Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi. It is suitable for all OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi.

Top 5 Reasons To Get Mini OBD2 Wifi Scanner:
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Wifi)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)

Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Mini OBD2 Wifi Scanner Specifications:
- SSID: WiFi_OBDII
- IP: 192.168.0.10
- Port: 35000
- Communication: WIFI
- Master Chip: ST
- Support System: for IOS, Android, Symbian, Windows
- Working Voltage: 9v ~ 16v
- Working Current: 65mA
- Standby Current: 45mA
- Operating temperature: -40 ℃ ~ 85 ℃
- Working Humidity: less than 60%
- Size: 45mm * 25mm * 75mm

Compatible Systems:
- Software support platform: for Windows XP, Windows 7/8, IOS, Android, Symbian.

Compatible Software:
- For Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
- For IOS: Auto Doctor, Mini OBDII
- For Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
- For Symbian: OBDScope

Package Included:
- 1 x Mini OBD2 Wifi Scanner
- 1 x Retail Box
