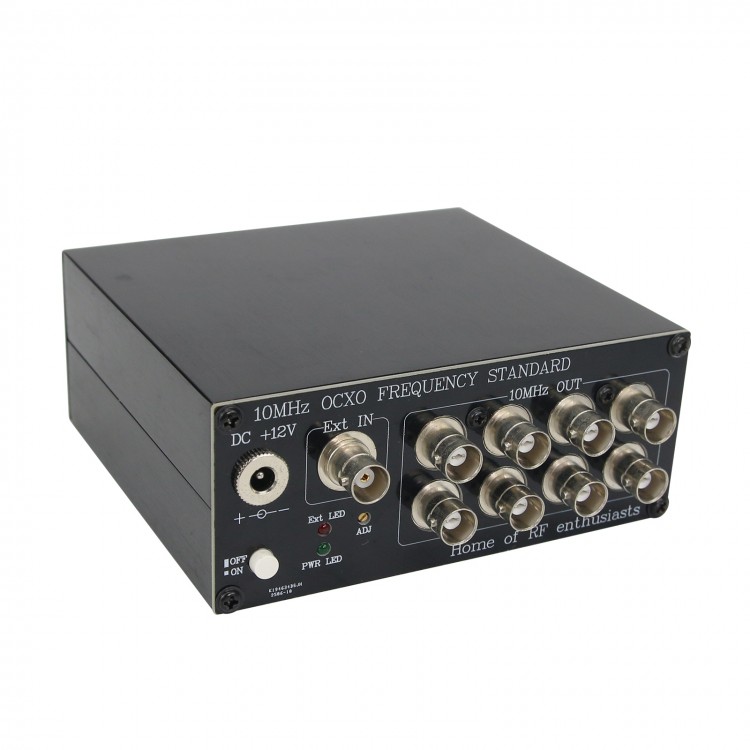

OCXO 10MHz Frequency Standard High Stability BNC/Q9 Version Eight Output Channels
Features:
- 10MHz over controlled crystal oscillator board
- Power supply: +12V 0.8A
- Output: 10MHz/10dBm (eight channels)
- Harmonic suppression: >40dB
- Spurious suppression: >70dB
- RF output interface: BNC\Q9
- Power connector: DC 5.5/2.1
- Provide up to eight outputs and one external input at the same time. When there is an external input, the device will automatically recognize and turn off the internal crystal oscillator, and amplify the external signal output.
Package Included:
- 1 x OCXO Frequency Standard
Note: Other items mentioned in the description are not included.

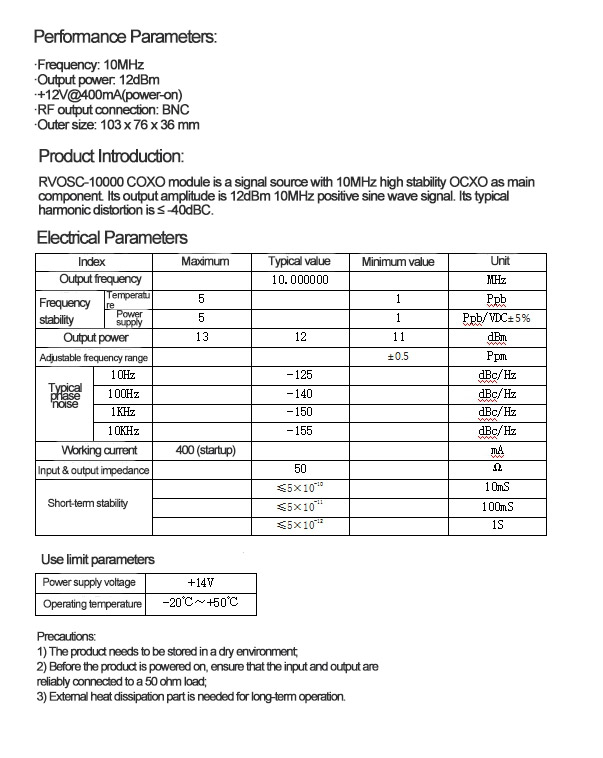

The main indicators of internal crystal oscillator used can refer to our RVOSC-10000 OCXO module:
