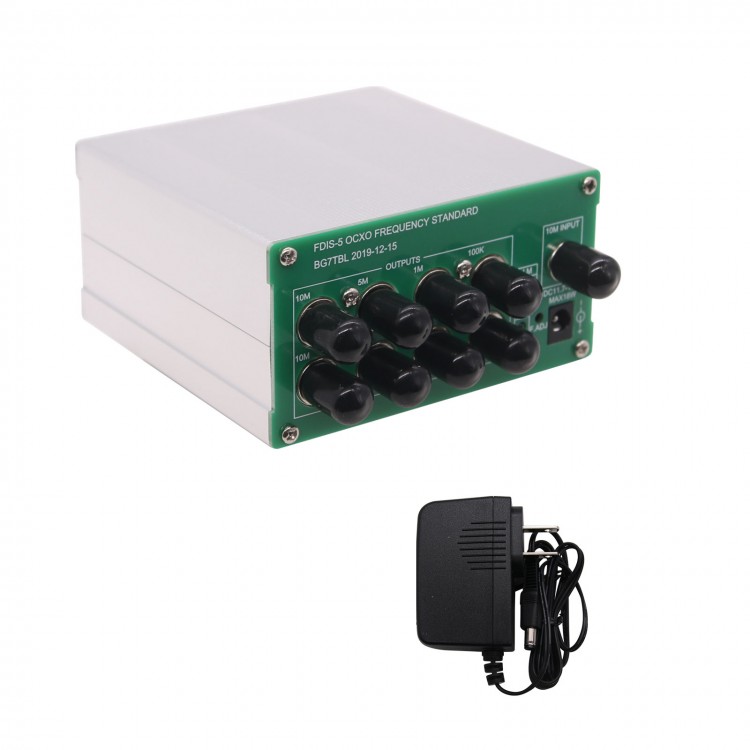

OCXO Frequency Standard with 10MHz 5MHz 1MHz 100KHz 1PPS Outputs + Power Adapter
Features:
- OCXO frequency standard with 10M, 5M, 1M, 100K and 1PPS outputs
- Power Supply: DC11.7-12.9V, Maximum 12W
- Input: 10M, 0.1Vpp-5Vpp, square wave, sine wave, triangular wave and other waveforms
- Outputs:
2-Channel 10MHz: Sine wave 1VRMS (13dBm)
2-Channel 5MHz: Sine wave 1VRMS (13dBm)
2-Channel 1MHz: Sine wave 1VRMS (13dBm)
1-Channel 100KHz: Sine wave 1VRMS (13dBm)
1-Channel 1PPS (1Hz): Square wave with output amplitude 0-5Vpp and 50% duty cycle
- Output/Input Connector Type: BNC
- Built-in High Stability OCXO: Annual aging 0.5Hz
- Indicators:
PWR: Power supply indicator
EXT 10M: External 10M output indicator
ALM: The light is lit when there is no output (The internal OCXO is broken and there is something wrong with its circuit)
- F.ADJ knob used to adjust the frequency of internal OCXO
- Can be used as a frequency standard or a signal divider
Package Included:
- 1 x Frequency Standard
- 1 x AC110-220V-DC12V/1.0A Power Adapter
