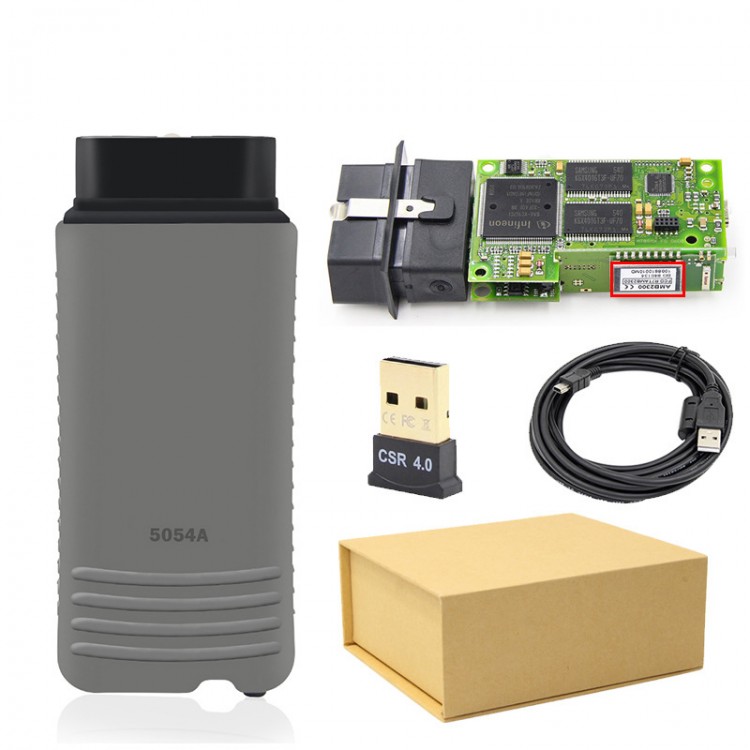

VAS 5054A best quality version, with OKI chip, support UDS protocols.
1.This version vas 5054a support VW AUDI SKODA and SEAT,
2.support multi-language.
3.Newest software version is ODIS V4.13, with bluetooth. If you want high quality VAS 5054A, please choose this one.
4.Supported Car Models: VW, AUDI, SKODA, SEAT Bentley and Lamborghini
Best VAS 5054A ODIS V4.13 Bluetooth Support UDS Protocol with OKI Chip Multi-languages
Top 6 Reasons To Get VAS5054A:
1. With OKI Chip
2. Support UDS Protocol
3. Multi-languages:English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/
Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4. Supported Car Models: VW, AUDI, SKODA, SEAT Bentley and Lamborghini
5. Bluetooth Version(Bluetooth Connection Password: 082145725)
6. Update By CD
Note:
1. VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
2. If you need the software for Lamborghini, Bentley, please leave us information when order
ODIS V4.0 Release:
Contains software bugfixes
VCI exchange not documented in diagnostic protocol
Internal defects
VAS 5054A Software Download:
Good news for sharing! Here you can free download ODIS 3.1.3 + Postsetup+ Launcher+ Certificate for ODIS 2017+ ODIS S 3.1.3
ODIS E 6.7.5 VMware WIN 7 32bit+ ODIS Flash Data! Click vas5054 software download
VAS 5054A ODIS V4.0 Computer Windows System Requirements:
Windows System Language: American English
Win 7 Professional version
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS 5054A
VAS 5054A Descriptions:
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS 5054A Specification:
- The vehicle protocols are handled directly in the VAS 5054A.
- This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
- The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
- The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
- Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
- Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
VAS 5054A Vehicle List:
Support AUDI Models:
Audi A3 2013>
Audi Q3 2012>
Audi A4 2008>
Audi A5 2008>
Audi Q5 2009>
Audi Cabriolet 2003>
Audi A6 2011>
Audi A7 2011>
Audi Q7 2007>
Audi A8 2010>
Audi TT 2007>
... ...
Supported Volkswagen-Models
6X/6E - Lupo 1999 >
12 - up! 2012 >
9N1/9N3 - Polo 2002 >
6R - Polo 2010 >
60/61 - Polo 2010 >
1J - Bora 1999 >
1J - Golf 1998 >
1J - Golf 1998 > only USA/Canada
1K - Golf 2004>
Supported Volkswagen Nutzfahrzeuge-Models
2K - Caddy 2004 >
7H/7J - Transporter 2004 >
2C - Caddy 2011 >
7E/7F - Transporter 2010 >
2H - Amarok 2010 >
Supported Seat-Models
AA - Mii 2012 >
7N - Alhambra 2011 >
7M - Alhambra 2001 >
3R - Exeo 2009 >
5P - Altea 2009 > PA
5P - Altea 2004 >
5P - Altea XL/Freetrack 2009 > PA
5P - Altea XL/Freetrack 2007 >
Supported Skoda-Models
Fabia 1999 >
Fabia 2007 >
Octavia 1997 >
Octavia 2004 >
Octavia 2013 >
Roomster 2006 >
Rapid NA (Indien) 2012 >
Superb 2001 >
Superb 2008 >
Yeti 2010 >
Rapid NH (EU) 2013 >
Citigo 2012 ... ...
Supported Bentley-Models
Continental GT 2004>
Continental GT 2012>
Continental GT Diamond Series 2007
Continental GT Speed 2008>
Continental Supersports 2010>
Continental Flying Spur 2005 ... ...
Supported Lamborghini-Models
Gallardo MY09-10-11-12
Aventador LP700-4
Detail about vas5054a vehicle list pls contact us for the the PDF document
