OEM Orange5 Programmer V1.37 Full Set Programming Device and Full Adapters for XP WIN7 WIN8

OEM Orange5 Programmer V1.37 Full Set Programming Device and Full Adapters for XP WIN7 WIN8

Introduction:

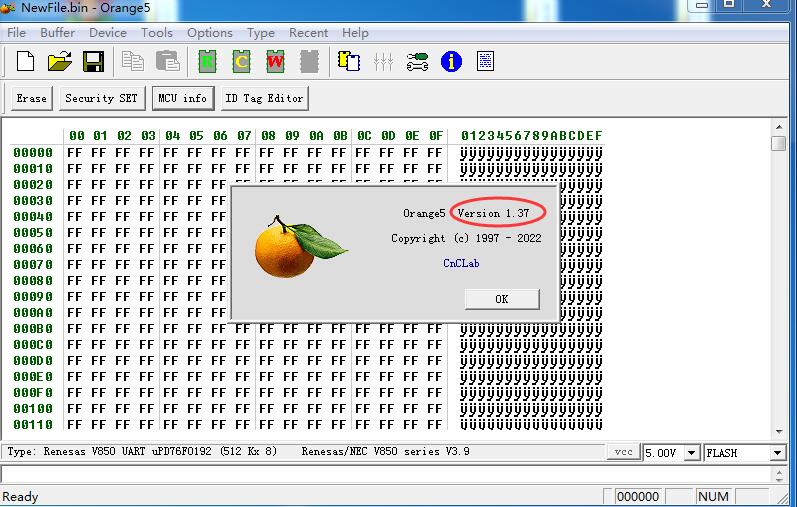

- Software Version: V1.37, Software Does not Support Update
- Language: English and Russian
- Systems: For XP WIN7 WIN8

Software Licenses:
- MTRK (Included in Orange-5 base)
- TMS (Included in Orange-5 base)
- M08V NEW
- Immo HPX 9V0

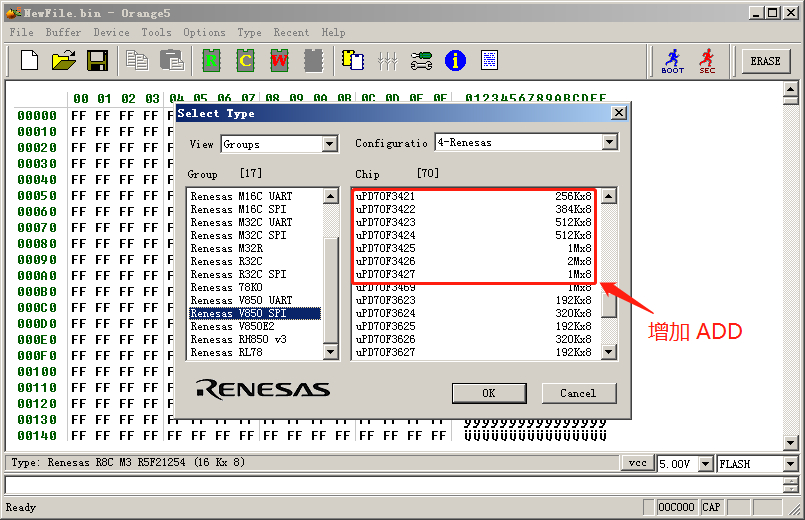

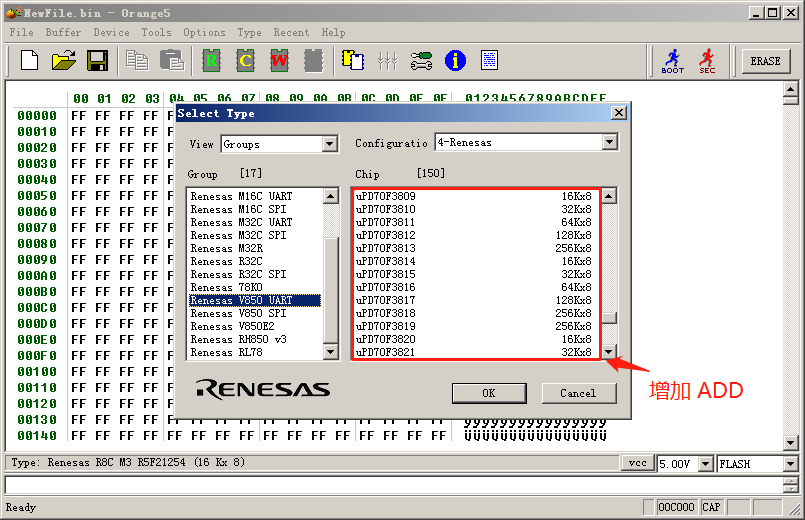

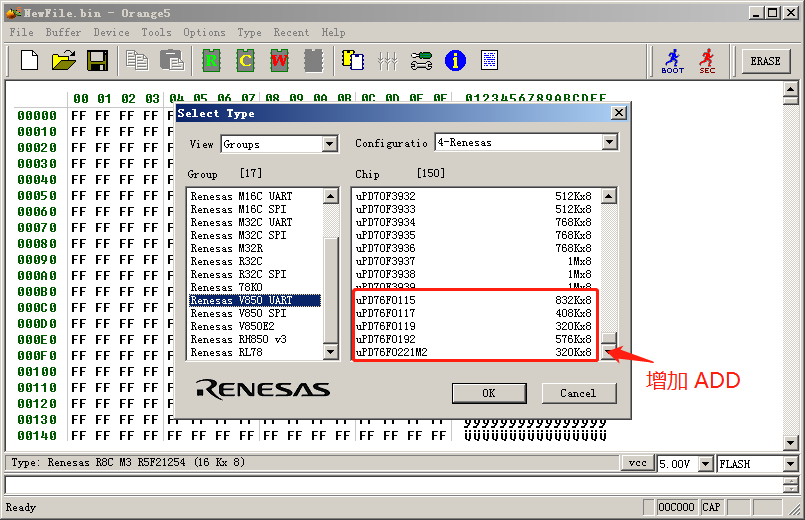

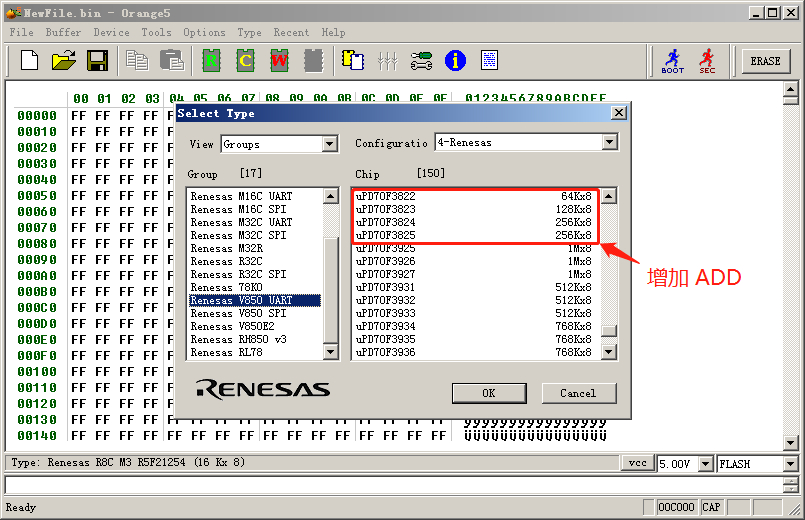

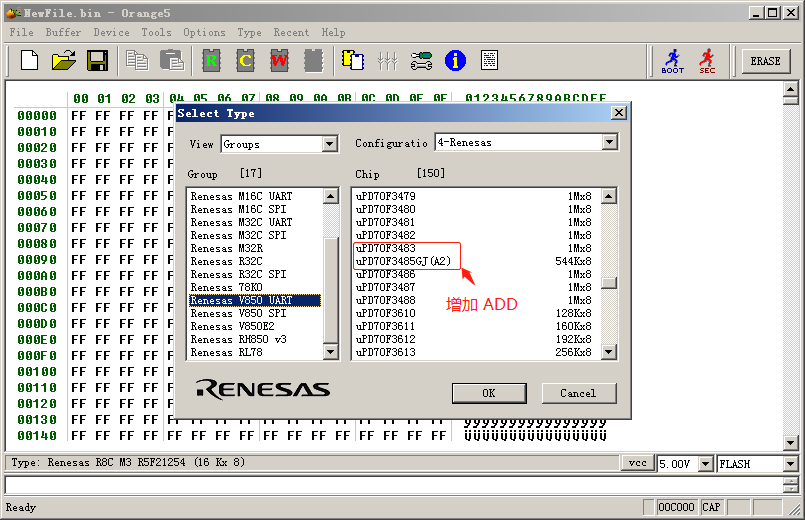

- NEC V850ES/SJ3 V850ES/SG3 UART

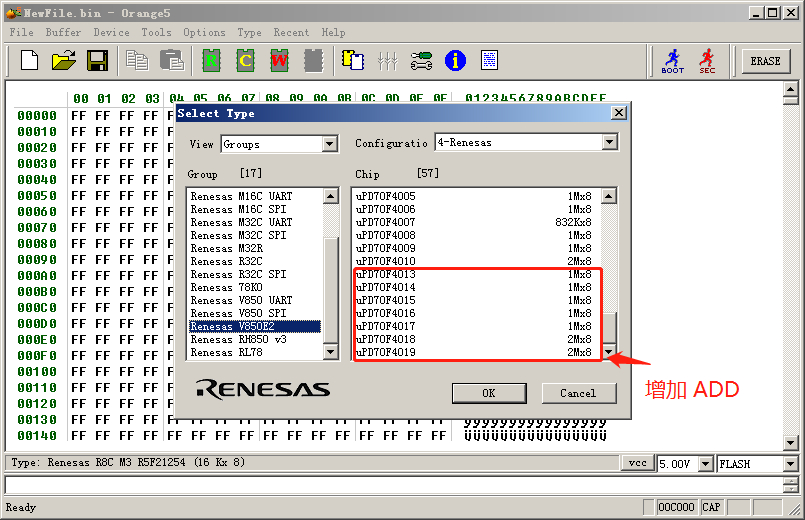

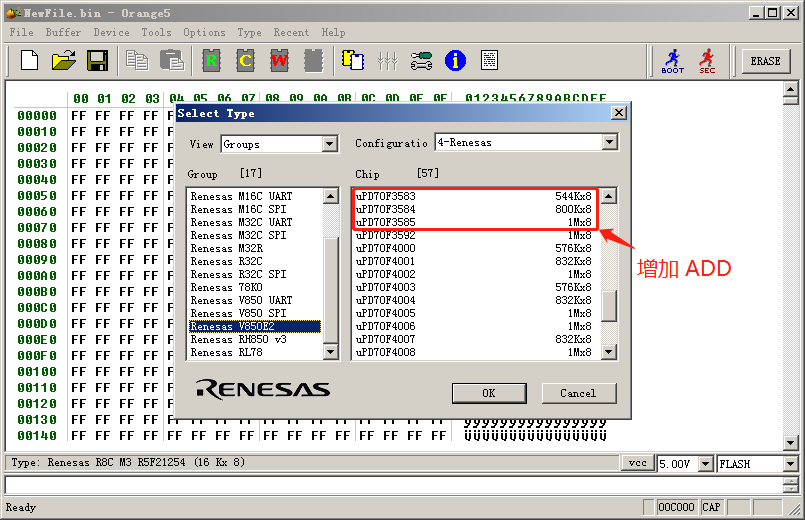

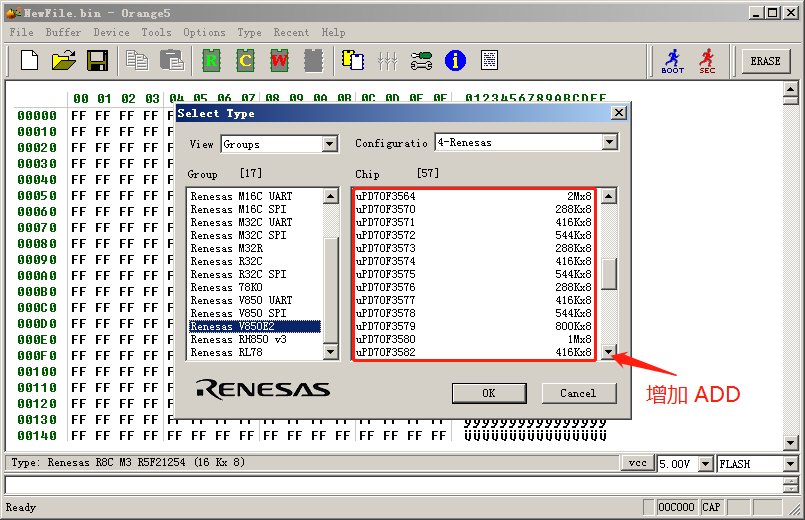

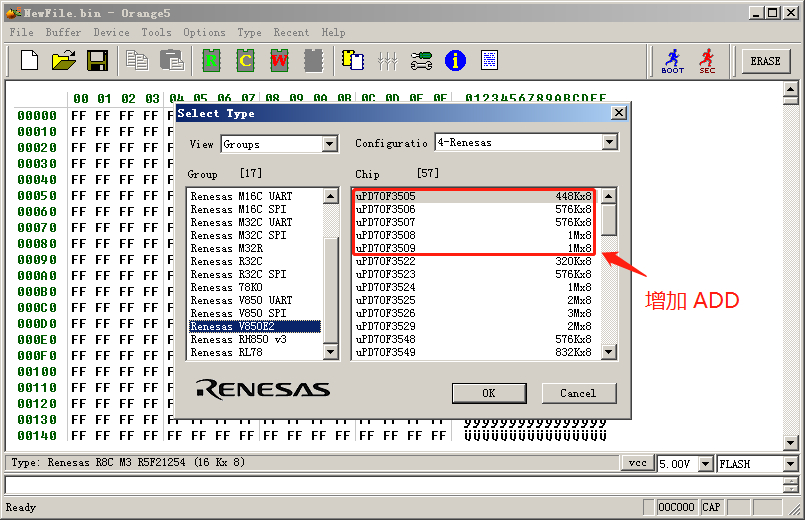

- NEC V850E2 NEW

Technical Information:
- USB power supply (USB2.0/3.0)
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions for Orange4 and Omega MTRK
- Protection against over-current
- Overload voltage protection
- Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
- Three 3 adjustable voltage and current control: Voltage of power supply (2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Wave cycle generator with frequency ( up to 24Mhz) and out voltage(2.0...5.0V) adjustment
- Capability of functional emulation of class CDC USB devices
- Built-in 32-bit virtual machine
- Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
- Programmer is enclosed in a functional box. Supported working under the systems for Windows XP/7 32bit. [*For Win8.1]
- Installation and Work with Orange-5 under the systems for Windows 7 and Windows 8.1
- CnCterm - Terminal program for work with COM ports.

Features:
- Supports any COM ports, including virtual ones from 1 to 20
- Works with text (ASCII) and HEX mode
- Creating a list of commands that allows editing and fast sending
- Fine-tuning the exchange rate
- Saving files including command and port settings
- Saving incoming data in binary files
- File transfer via serial port.
- Delay settings for bytes and blocks
- "Echo" mode
- Delay settings between incoming data
- Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
- Program doesn't need to be installed
- Supports Orange5 programmer in emulation mode
- Orange-5 Chip list v1.34 [November 2015] (Contact me for the details)

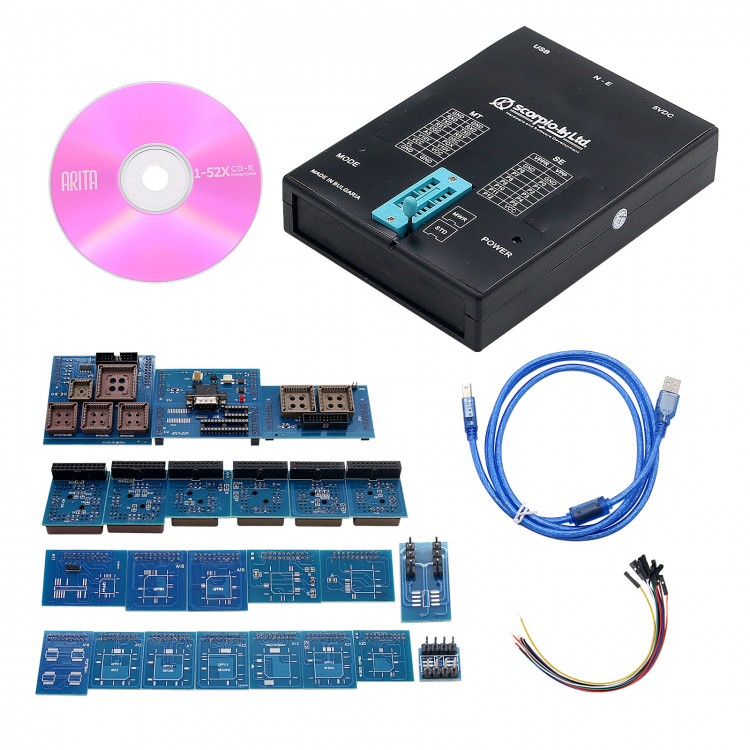

Packing List:
- Orange5 programmer x 1
- Power adapter x 1
- USB cable x 1
- In-circuit wire x 10s
- SOIC8/DIP8 Expert adapter x 1
- SOIC8/DIP8 adapter x 1
- SOIC8_14_93Cxx adapter x 1
- SSOP8/DIP8 x 1
- Lead with clips SOIC8 & DIP8 x 1
- Adapter 05L28/05B x 1
- Adapter 908AS60/AZ60 QFP64 x 1
- Adapter 68HC(7)05P3/E6 x 1
- Adapter 05B/X_705B/X QFP64 V2 x 1
- Adapter 11PA8/11E9 QFP64 x 1
- Adapter 68HC05H12 x 1
- Adapter 68HC11EA9 x 1
- Adapter 908AS60 x 1
- Adapter 9S12Dxx x 1
- Adapter 912Dxx x 1
- Adapter 9S12X x 1
- Adapter 912B32 QFP80 x 1
- Adapter 68HC11F1 x 1
- Adapter 68HC11L6 x 1
- Adapter 68HC11KA4 x 1
- Lead 11E9(20) with power x 1
- Lead for EWS3 mask 0D46J x 1
- Adapter TMS374C003A x 1
- Adapter MSP430F x 1
- Adapter 68HC11KA4 PLCC68 x 1
- Adapter 908JL x 1
- Adapter PCF7941 x 1
- Adapter 9S12XE x 1
