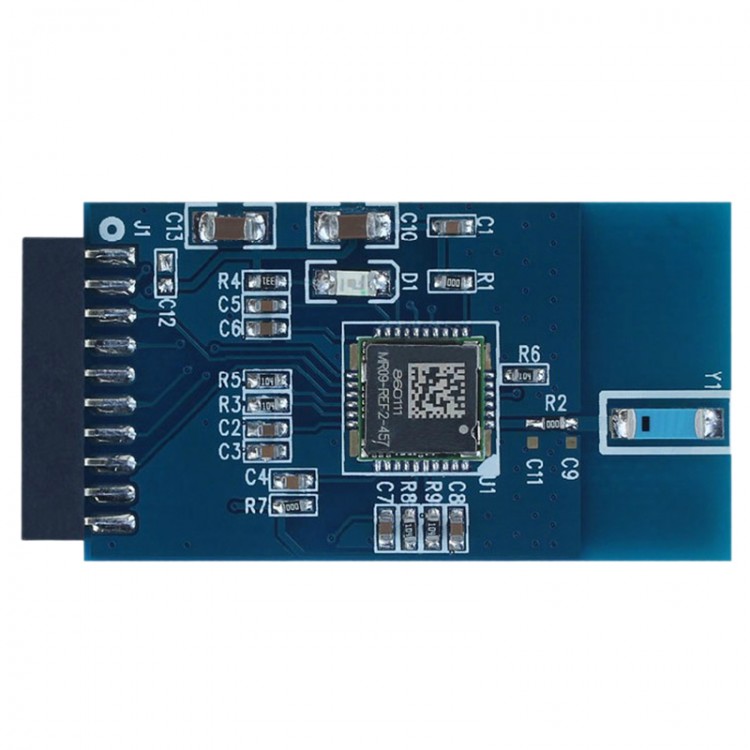

OK6410 TE6410 SDIO Interface WIFI Module Wireless Network Card DIY Remote Control Development Board

OK6410 TE6410 SDIO Interface WIFI Module Wireless Network Card DIY Remote Control Development Board

Specification:
- Product Name: WIFI module
- Type: WM-G-MR-09 (Marvell8686)
- Interface: SDIO (1bit/4bit)
- Network standard: IEEE 802.11b/g
- Data transfer rate: 54Mbps
- Power sleep state: 0.6mA
- Receive data: 170mA
- Transmit data: 265mA
- Sensitivity: -70 DBM @ 54Mbps
 -85 DBM @ 11Mbps
 -90 DBM @ 1Mpbs
- Safety performance: the WEP 64/128 bit, AES, TKIP, WPA, WPA2, CCX, V1, V2
- Size: 2.2cmX4.4cm

Using introduction
This module, interface for 2 spacing double Jack"CN4"; development board end interface for.2.0 spacing of the flat base "SDI interface". The main chip type "WM-G-MR-09".

The matters needing attention when connecting:
Pay attention to the module end "small white triangle CN4 (" the small white triangle logo for 1feet, the small white triangle this side for the odd pin, the other side is even pin) small white triangle and development board "SDI interface at the end".

Both ends of the module and the development board of the small white triangle alignment(small white triangle is a small white triangle module end to end and development boardtogether)

Finally the SDIO module into the flat base plate end of development.

Application:
For OK6410, TE6410 and OK6410-B development board, Wince system, Linux and Android system.

Package included:
- 1 x SDIO WIFI Module
