User Manual Link Password:r5bu

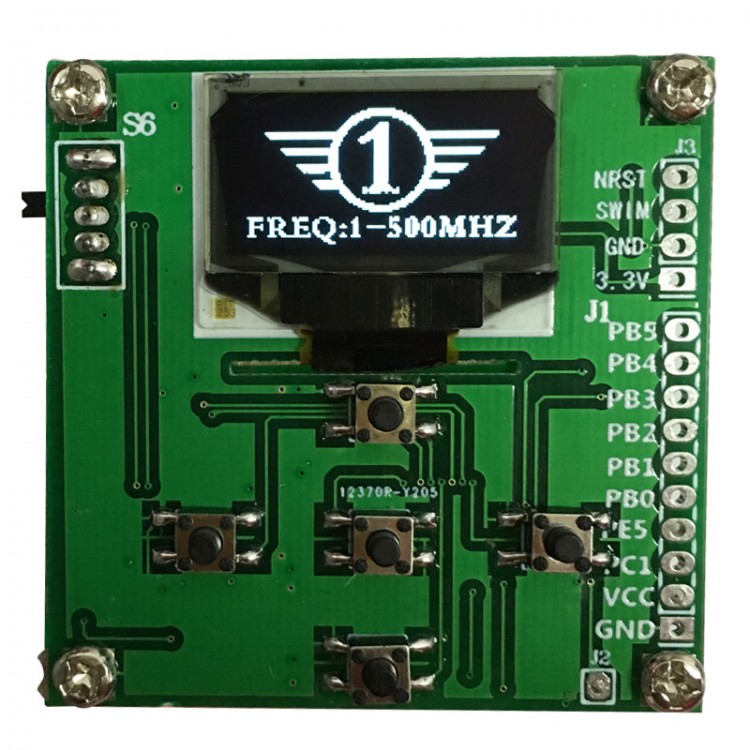

RF-Power500 Parameter:
1.Measuring power range:-65~+ 15 dBm (external RF attenuator can be extended to 100dBm)
2.The measurement resolution of:0.1 dBm power
3.Measurement frequency range:1~500 MHz
4.The measured power:1nW~2W
5.The working voltage of 5VDC can work MICRO-USB powered)
6.The working current:<50 mA
7.Error:<+-1dB
8.Dynamic range:>80dB
9.The working temperature of:-40 ℃~65 ℃ degrees Celsius
10.Storage temperature:-40 ℃~65 ℃ degrees Celsius
11.Size:50x50x25mm(LxWxH)
Fourth,the RF common sense science:
dB is a pure count of unit:
For power,dB = 10xlg (A/B).
For voltage or current,dB = 20 * lg (A / B).
dBm is defined miliwatt (mW).0 dBm = 1mw;
dBw defined watt.0 dBW = 10lg1 W = 10lg1000 mw = 30 dBm.
dB power units are always defined by default,to 10lg for scoring.Of course,some cases may signal strength (Amplitude) to describe the work and power,this time with 20lg for scoring.Whether in the field or control signal processing field like this.For example, sometimes you can see the expression dBmV.
