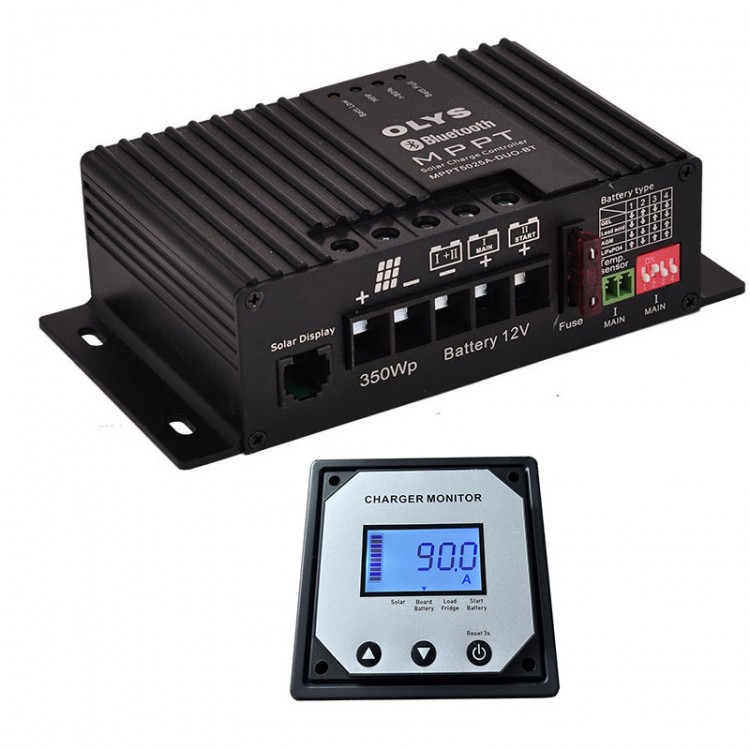

OLYS MPPT5025A-DUO-BT 25A Bluetooth Solar Charge Controller + MT-4-BT Charge Monitor for RVs

OLYS MPPT5025A-DUO-BT 25A Bluetooth Solar Charge Controller + MT-4-BT Charge Monitor for RVs

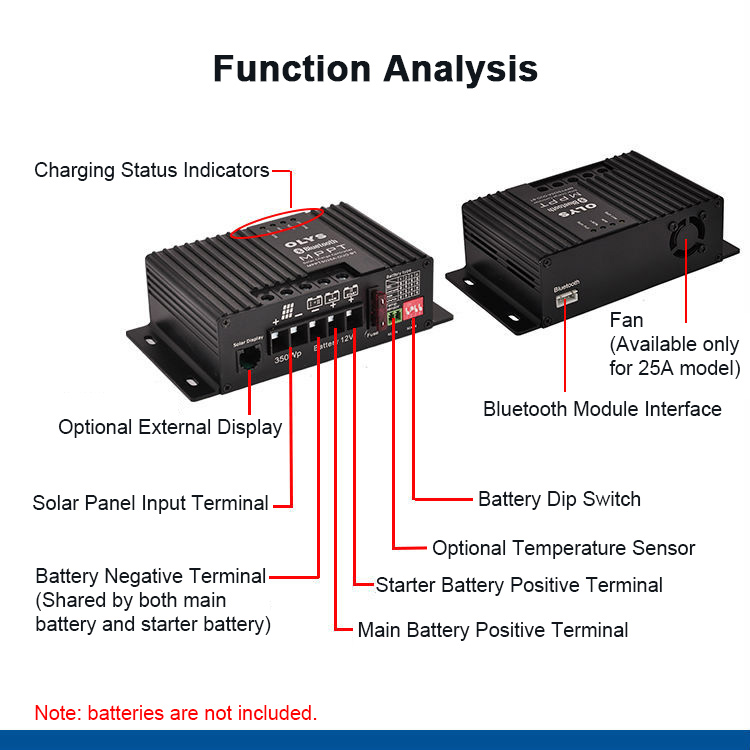

Features of Solar Charge Controller:
MPPT Solar Charge Controller for RVs
- Can be used to charge two batteries
- Maximum power point tracking
- Compatible with lead-acid & lithium batteries

Fully Independent R&D Process
- We master core technologies and can provide customized development based on customer requirements, including functions, colors, logos, and printed materials.

MPPT Charging Technology
- When used with solar panels of the same power, it can increase charging efficiency by 10% to 30%.

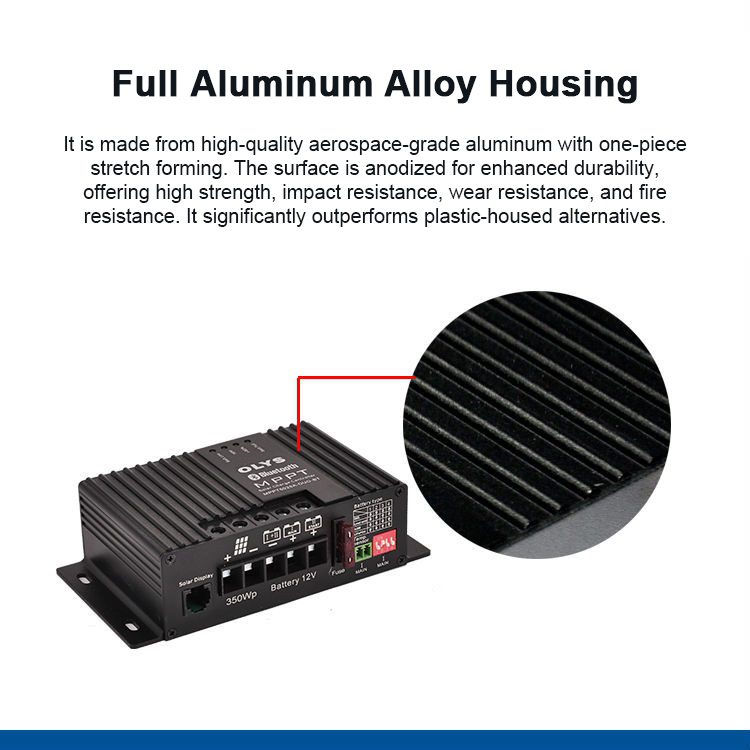

Full Aluminum Alloy Housing
- It is made from high-quality aerospace-grade aluminum with one-piece stretch forming. The surface is anodized for enhanced durability, offering high strength, impact resistance, wear resistance, and fire resistance. It significantly outperforms plastic-housed alternatives.

Supports Four Battery Types
- Gel battery
- Lead-acid battery
- AGM battery
- LiFePO₄battery

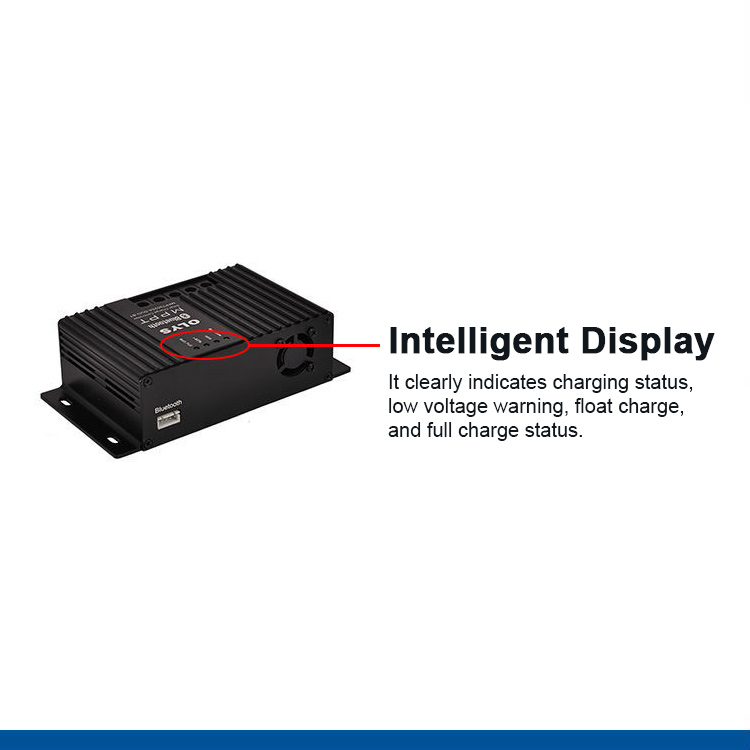

Intelligent Display
- It clearly indicates charging status, low voltage warning, float charge, and full charge status.

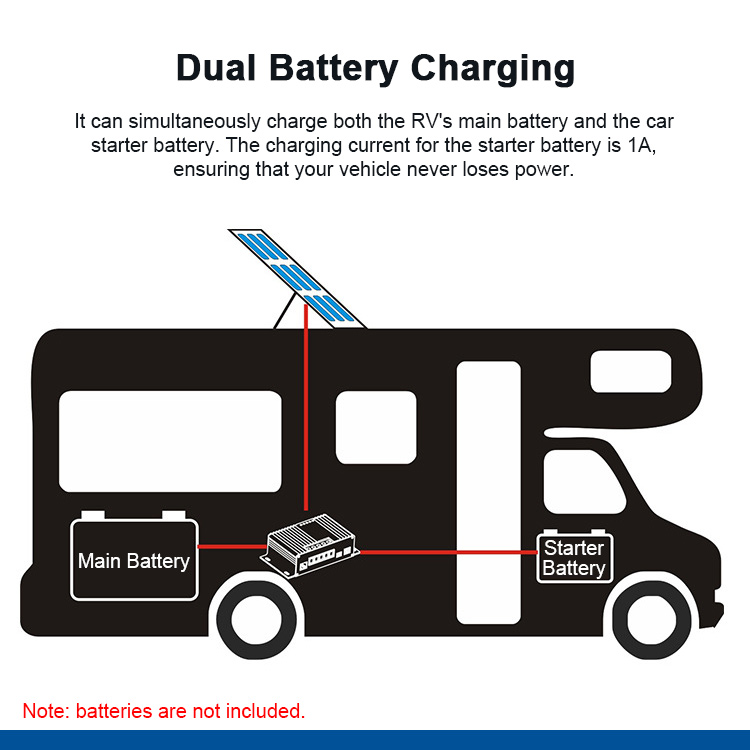

Dual Battery Charging
- It can simultaneously charge both the RV's main battery and the car starter battery. The charging current for the starter battery is 1A, ensuring that your vehicle never loses power.

Specifications of Solar Charge Controller:
- Product Model: MPPT5025A-DUO-BT
- Maximum Solar Panel Power: 350W
- Maximum Solar Panel Voltage: 50V
- Maximum Charging Current (Main Battery): 25A
- Car Starter Battery Charging Current: 1A
- Battery Voltage: 12V
- Battery Types: Lead-acid, Gel, AGM and LiFePO₄
- Charging Technology: Maximum Power Point Tracking (MPPT)
- Optional Accessories: External Display and Temperature Sensor

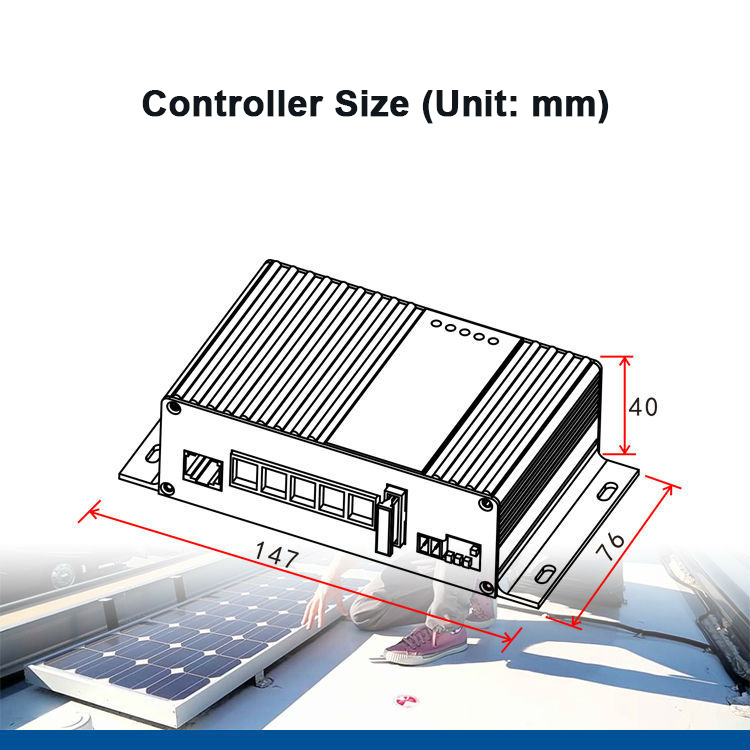

- Dimensions: 147mm × 76mm × 40mm
- Weight: 400g

Features of MT-4-BT Charge Monitor:
- LCD display shows charging current, battery voltage, charge power, PV power, charge capacity, load voltage, and load current
- Charge AH values can be reset to zero at any time
- Adjustable backlight brightness
- Simple and convenient installation

Specifications of MT-4-BT Charge Monitor:
- Operating Voltage: 12V or 24V
- Voltage Range: 8V–32V
- Operating Current: 3–30 mA (depending on backlight brightness)
- Capacity Range: 20–999 Wp
- Display Area: 49mm x 28mm
- Backlight: LED
- Size: 110mm x 110mm x 40mm
- Weight: 75g

Packing List:
- 1 x Solar Charger Controller
- 1 x Charge Monitor
- 1 x 3m Cable

Packaging Details:
- Weight: 0.7kg

Note:
- Batteries are not included.
