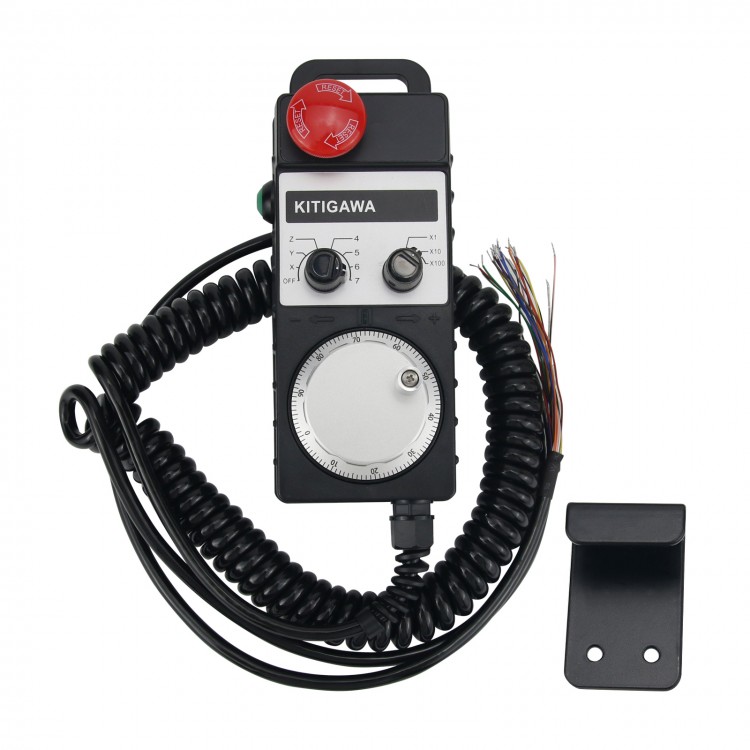

OMT004 7Axis Manual Pulse Generator CNC Handwheel 100PPR 5V with Emergency Stop Button Universal Type

OMT004 7Axis Manual Pulse Generator CNC Handwheel 100PPR 5V with Emergency Stop Button Universal Type

Features:
- 7-Axis MPG manual pulse generator
- Comes with emergency stop button
- Voltage 5V 100PPR, Output Phases A A- B B-: It fits for 98% of Chinese systems
- Its switch is provided by well-known producers
- Light weight and metal panel
- Elegant appearance and fine workmanship
- Perfect for manual pulse input such as NC line board, CNC machines, zero correction and division of printing machinery

Technical Parameters:
Electrical Parameters:
- Output Waveform: Square Wave
- Output Phase: AB Phases
- Current Consumption: ≤100mA
- Response Frequency: 0 to 20KHz
- Duty Ratio: 0.5T±0.1T
- Phase Difference: 90°±45°
- Power Supply Voltage: DC 5V
- Output Voltage: High Level ≥ 85%Vcc, Low Level ≤ 0.3V
- Number of Pulses: 100 PPR

Mechanical Specifications:
- Position Signal: 2 Kinds
- Max. Speed: 500rpm
- Starting Torque: 2 x 10 -2 to 6 x 10-2 Nm (+25℃)
- Shock Resistance: 980m/s2, 6ms, twice in X Y Z directions
- Anti-Vibration: 50m/s2, 10 to 200Hz, 2h for X Y Z directions separately
- Life Span: MTBF ≥ 10000hg (+25℃, 2000rpm)
- Weight: approx. 640g

Environmental Specifications:
- Operating Humidity: 30% to 85% (Without condensation)
- Storage Temperature: -30℃ to 85℃
- Operating Temperature: -10℃ to 70℃
- Protection: Waterproof, Oil-proof, Dust-proof IP54

Package Included:
- 1 x Manual Pulse Generator w/ 1.6m Spring Cable

Note: Please not that this MPG comes with emergency stop button.
