ON-DMI-16E HDMI Video Encoder H.265/H.264 Encoder RTMP For IPTV PC Recording CCTV NVR Live Streaming

ON-DMI-16E HDMI Video Encoder H.265/H.264 Encoder RTMP For IPTV PC Recording CCTV NVR Live Streaming

Advantages:
- H.265 HDMI live streaming HD encoder
- Support multiple protocols: for Hikvision, Dahua private protocol, NVR H.265 recording
- Computer management software: Support for Hikvision iVMS-4200, Dahua SmartPSS
- Audio compression coding: Support AAC, G.711U and G.711A, etc.
- Support UDP multicast, support VLC player. Push stream: RTMP protocol; Pull stream: TS stream (H.265 encoding)

Features:
- Adopt high-end video processing chip for Huawei HiSilicon, support H.265/H.264 video compression algorithm
- Support for TS stream/RTMP/RTSP/UDP/TCP/IP/HTTP/ONVIF and other protocols
- The device supports three streams at the same time (D1, 720P, 1080P)
- Support audio compression coding such as AAC, G.711U and G.711A
- Push stream: RTMP protocol; Pull stream: TS stream (support H.265 encoding); Support UDP multicast; Support VLC player
- Support for Hikvision and Dahua private protocol, support NVR h.265 recording for Hikvision and Dahua, and support access to these two computer management software
- Unique function, for IE preview image. Support for browsers such as Google, IE, Safari and FireFox; Browser for Google is recommended
- On the encoder page, when you fill in the live streaming address, you can select the primary stream and the secondary stream. If there are two lines of push stream address, fill in the method as follows: push stream address/stream key. Pay attention to the connection symbol / in the middle. In order to ensure that the relevant parameters are displayed correctly for IE or browsers containing the kernel for IE, please clear the cache in IE before setting the parameters (historical records)
- Software interface display: Support for Dahua SmartPSS software and Hikvision IVMS-4200 management software

Live Encoder Application Industry:
- Suitable for a variety of live broadcast occasions, high-definition picture quality. It can be used for multimedia teaching, web TV, video conference, KTV/hotel IPTV, technology exhibition, drone live broadcast, game event live broadcast, party/wedding live broadcast, web live broadcast
- Support all major live broadcast platforms: Adopt H.265 low bit stream encoding technology, save more memory, and video playing is smooth. For Huawei Cloud, Alibaba Cloud, Tencent Cloud, Baidu Cloud, Aodianyun, Netease Cloud, Qiniu Cloud, KSYUN, Douyu, Mudu, YouTube, Twitter and other first-class live streaming platform in China and overseas

Specifications:
Chipset:
- Product Information: User name: admin; Password: 12345; IP: 192.168.120
- Product model: ON-DMI-16E
- Chip performance: Hi3516E (default) (1080p at 30fps)
- Video input: up to 1080P at 45FPS

Compression Standard:
- Video encoding: H.265 encoding; H.264 encoding
- Audio coding: AAC, G.711U and G.711A audio coding
- Stream type: fixed stream and variable stream (CBR and VBR); 64KBPS-12Mbps adjustable
- Video frame rate: 45Hz: 1-25 frames per second
- Stream: Main stream: 1920*1080, 1280*960, 1280*800, 1280*720, etc. Sub stream: 1280*720, 1024*768, 1024*576, 960*540 and so on. Phone stream : 720*576, 640*480, 640*352, 320*240 and the like

Internet Function:
- Network protocol: TCP/IP, UDP, RTP, RTSP, RTCP, Ts stream and DHCP

Interface Functions:
- Network interface: 1CH RJ45 10M/100M adaptive Ethernet port
- Audio interface: 1CH audio MIC linear input
- HDMI interface: 1CH HDMI video input
- Reset button: 1CH reset signal

Others:
- Working environment: temperature: -10C to 55℃; humidity is less than or equal to 95% (non-condensing)
- Access to NVR: support for Hikvision private protocol, support for Hikvision NVR's H.265 recording
- Power input: DC12V at 1A or more
- Power consumption: ≤2W
- Product size: 105 x 70mm/4.1 x 2.8"
- Net weight: about 0.5kg

Video Streaming:
- UDP multicast:
- TS video stream: http://192.168.1.120:80/ts/0 (main stream); http://192.168.1.120:80/ts/1
 (sub stream)
- RTSP stream: rtsp://192.168.1.120:554/live/0 (main stream); rtsp://192.168.1.120:554/live/1 (sub stream)

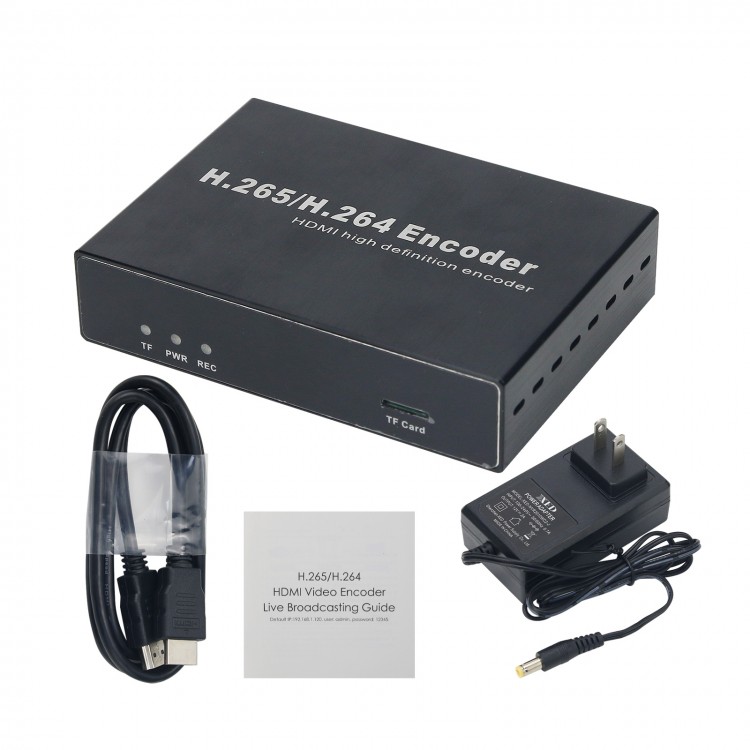

Package Included:
- 1 x Set of Video Encoder
