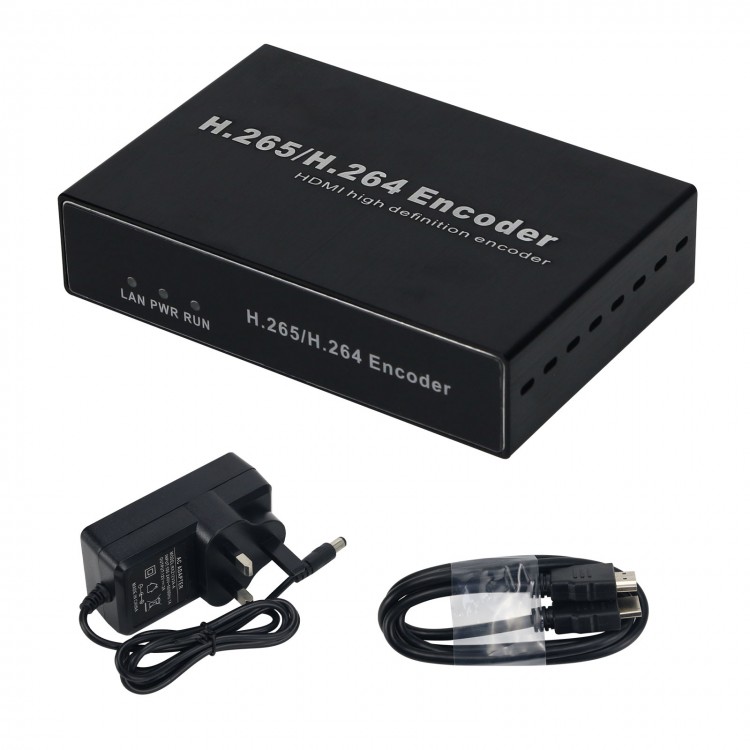

ON-DMI-16E Video Encoder H.265/H.264 Encoder HDMI High Definition Encoder For Livestreaming Platform

ON-DMI-16E Video Encoder H.265/H.264 Encoder HDMI High Definition Encoder For Livestreaming Platform

Encoder Product Information:
Link: https://pan.baidu.com/s/1FrekgXJ1NgJIy8_u-QDMQQ Password: 1vcd

Features:
- H.265 HDMI live streaming HD encoder
- Support multiple protocols: support for Hikvision and Dahua private protocol, support NVR H.265 recording
- Computer management software: support for Hikvision iVMS-4200, support for Dahua SmartPSS
- Audio compression coding: support AAC, G.711U and G.711A, etc.
- Support UDP multicast, support VLC player. Push stream: RTMP protocol; Pull stream: TS stream (support H.265 encoding)
- Suitable for a variety of live broadcast occasions, high-definition picture quality adds luster
- Support all major live broadcast platforms. Using H.265 low bit stream encoding technology, storage is halved to save more memory, and video playing is smooth. For Huawei Cloud, Alibaba Cloud, Tencent Cloud, Baidu Cloud, Aodianyun, Netease Cloud, Qiniu Cloud, KSYUN, Douyu, Mudu, YouTube, Twitter and the like

Application:
- Multimedia teaching
- Online TV
- Video conference
- KTV/Hotel IPTV
- Technology Exhibition
- Drone live broadcast
- Game event live broadcast
- Party/Wedding Live Broadcast
- Live streaming

Advantages:
1. Adopt high-end video processing chip for Huawei HiSilicon, support H.265/H.264 video compression algorithm
2. Support for TS stream/RTMP/RTSP/UDP/TCP/IP/HTTP/ONVIF and other protocols
3. The device supports three streams at the same time [D1, 720P, 1080P]
4. Support audio compression coding such as AAC, G.711U and G.711A
5. Push stream: RTMP protocol; Pull stream: TS stream (support H.265 encoding); Support UDP multicast; Support VLC player
6. Support the private agreement for Hikvision and Dahua, support the NVR h.265 recording for Hikvision and Dahua, and support access to their computer management software
7. IE preview image. Support browsers such as for Google, IE, Safari and FireFox; It is recommended to use browser for Google

Specifications:
Chipset:
- Product Information: Username: admin; Password: 12345; IP: 192.168.120
- Product model: ON-DMI-16E
- Chip performance: Hi3516E (default) (1080p at 30fps)
- Video input: Max. 1080P at 45FPS

Compression standard:
- Video encoding: H.265 encoding; H.264 encoding
- Audio coding: AAC, G.711U and G.711A audio coding
- Stream type: fixed stream and variable stream (CBR and VBR); 64KBPS-12Mbps adjustable
- Video frame rate: 45Hz: 1-25 frames per second
- Stream: Main stream: 1920*1080, 1280*960, 1280*800, 1280*720, etc. Sub stream: 1280*720, 1024*768, 1024*576, 960*540, etc. Mobile stream: 720*576, 640*480, 640*352, 320*240, etc.

Network features:
- Network protocol: TCP/IP, UDP, RTP, RTSP, RTCP, Ts stream and DHCP

Interface function:
- Network interface: 1ch RJ45 10M/100M adaptive Ethernet port
- Audio interface: 1ch audio MIC linear input
- HDMI interface: 1ch HDMI video input
- Reset button: 1ch reset signal

Others:
- Working environment: Temperature: -10℃ to 55℃; humidity is less than or equal to 95% (non-condensing)
- Access to NVR: support for Hikvision private protocol, support for H.265 recording for Hikvision NVR
- Power supply input: DC12V at 1A or more
- Power consumption: ≤2W
- Product size: 105*70mm
- Product weight: about 0.5 kg

Video stream:
- UDP multicast:
- TS video stream:
* http: //192.168.1.120:80/ts/0 (main stream)
* http: //192.168.1.120:80/ts/1 (sub stream)
- RTSP stream:
* rtsp: //192.168.1.120:554/live/0 (main stream)
* rtsp: //192.168.1.120:554/live/1 (sub stream)

Package Included:
- 1 x Set of HDMI Encoder

Note:
- Fill in the push stream address for live broadcast, and you can choose the primary stream and the secondary stream. How to fill in the two-line push steam address: push address/stream key, pay attention to the connection symbol /.
