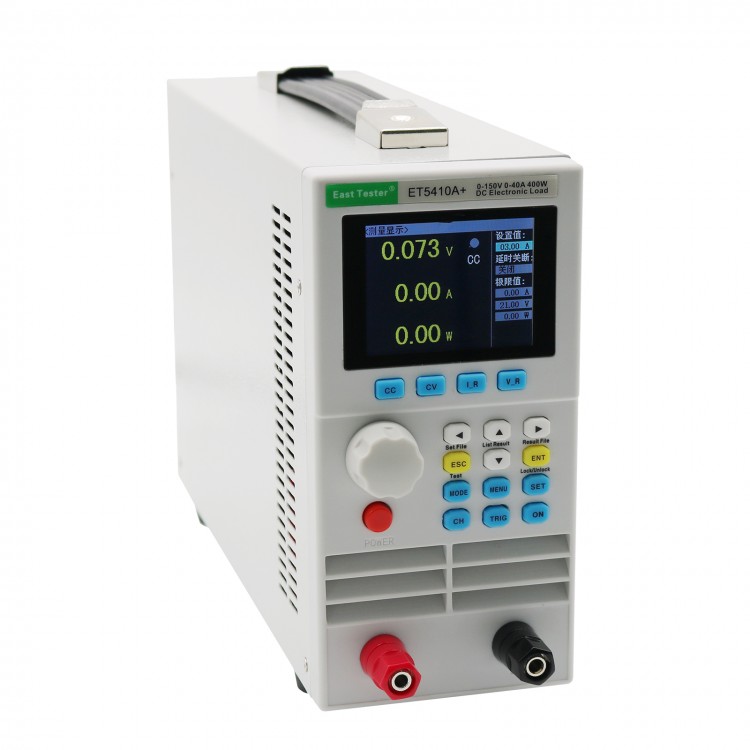

One-Channel Programmable Load 150V 40A 400W DC Electronic Load of High Resolution Precision ET5410A+

Availability: In stock, usually dispatched in 1 business day

  • Price:$236.60
  • Price in reward points: 2366 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $231.87 $227.14 $220.04 $210.57 Contact US
Quantity:

One-Channel Programmable Load 150V 40A 400W DC Electronic Load of High Resolution Precision ET5410A+



Description:
The programmable DC electronic load provides 1mV/ 1mA high resolution and precision with superior performance, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing, as well as the research institutions and other research and development fields.

Product Features:
User-friendly Design:
- It adopts 2.8-inch TFT LCD screen with rich display contents; Support Chinese and English
- The operation process is simple and convenient; with visual interface display system, it is easy to get started
- Key lock function to prevent misoperation

High Performance Load:
- Six basic measurement function modes: CC, CV, CR, CP, CC+CV and CR+CV

Eight professional measurement function modes:
- It provides professional Battery test mode: Can be used for all kinds of battery capacity test
- It provides professional LED test mode: Can be used to simulate the performance of LED power supply test
- It provides professional Tran test mode: Can test the dynamic output performance of the power supply
- It provides professional scan test mode: Can test the continuity of power output within a certain range
- It provides professional list test mode: Can simulate a variety of loading status changes
- It provides professional short circuit test mode: Can be used to simulate load short circuit
- It provide battery/power internal resistance test function
- It provide conformity testing function
- Provide one key to enter and one key to exit operation keys, the operation is more simple
- Built-in buzzer alarm
- Maintain data storage in case of power failure
- Remote operation via USB
- Equipped with software remote compensation

Multiple Safety Protection:
- It provides over-current, over-voltage, overpower, over temperature protection. The over-voltage and over-current parameters can be set flexibly, so as to effectively protect the load
- It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working
- With input polarity reverse prompt

General Specifications:
- Power supply voltage: 100Vac~240Vac, 50/60Hz
- Display: 2.8-inch TFT LCD screen with resolution of 320x240
- Operating temperature: 0℃ to 40℃
- Storage temperature: -10℃ to 70℃
- Relative humidity: < 80%
- Interface: standard USB
- Size: 90 x 190 x 300mm/3.5 x 7.5 x 11.8" (WxHxD)
- Weight: 2.9kg/6.4lb

Package Included:
- 1 x Electronic Load
- 1 x Power Cable
- 2 x Fuses
- 1 x Quality Certificate
- 1 x User Manual

Note:
- Battery is not included.
