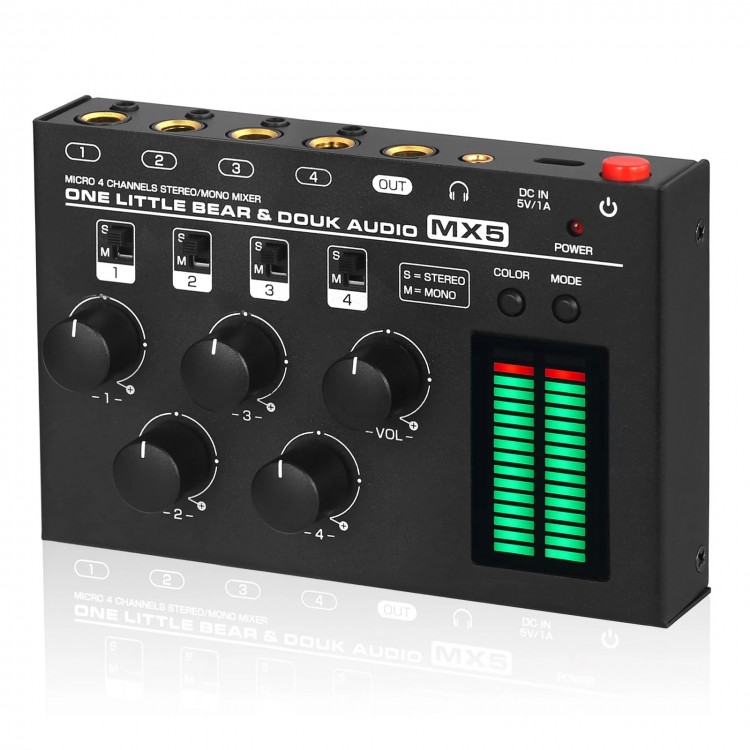

One Little Bear MX5 Mono/Stereo 4 Channel Mixer Ultra Low Noise Linear Mixer w/ 6.35mm/3.5mm Jacks
Features:
* 4-channel mixer supports stereo and mono: MX5 audio mixer with 4 groups of 6.35mm/3.5mm inputs and 1 group of 6.35mm/3.5mm output. It is compatible with most audio devices such as CD players, computers, cellphones, preamplifiers and amplifiers. Each channel supports independent mono/stereo switches to mix different audio signals to satisfy more mixing needs.
* LED level meter shows the level visually: Built-in 16-bit stereo dual-color LED level meter can display modes and colors. And gain can be adjusted freely to suit different uses, making it easy for you to monitor the output level of the MX5. It can also dynamically decorate your listening and mixing space.
* Rich adjustments and easy to use: With one main volume knob and four independent volume knobs. The input level of each group can be controlled separately, without interference to each other. It is powered by DC 5V, a separate power supply not required. Thus, it is convenient to use in most scenarios.
* Compact design and exquisite appearance: Full metal shell and aluminum knobs. It is sturdy and durable, maximizing isolation from external interference signals. Gold-plated RCA terminals ensure tight connection and smooth transmission of the original audio signal, and minimize loss.
Tips:
* 3.5mm headphone jack output is prioritized. If the 3.5mm jack is connected, the 6.35mm OUT port will be automatically disconnected.
* MX5 only supports standard audio signals such as CD/DVD/telephone, and can not be directly connected to a turntable or microphone.
* Stereo/mono mode can be used freely. If you want to create different mixes and LED display modes, please refer to the user manual.
* Please prepare a DC 5V power adapter by yourselves.
Specifications:
* Audio input: 4 sets of 6.35mm/3.5mm jacks
* Audio output: 1 set of 6.35mm/3.5mm jack
* Headphone impedance: 16-200 Ω
* Input impedance: 50kΩ
* Channel mode: Stereo/Mono
* Display color and mode: switchable
* Display gain: 1-6 levels
* Power off memory: supported
* Working voltage: DC5V (≥0.5A)
* Power interface: Type-C USB
* Dimensions (WxDxH): 132mm x 86mm x 24mm/5.20" x 3.39" x 0.94"
* Net weight: 350g/0.77lbs

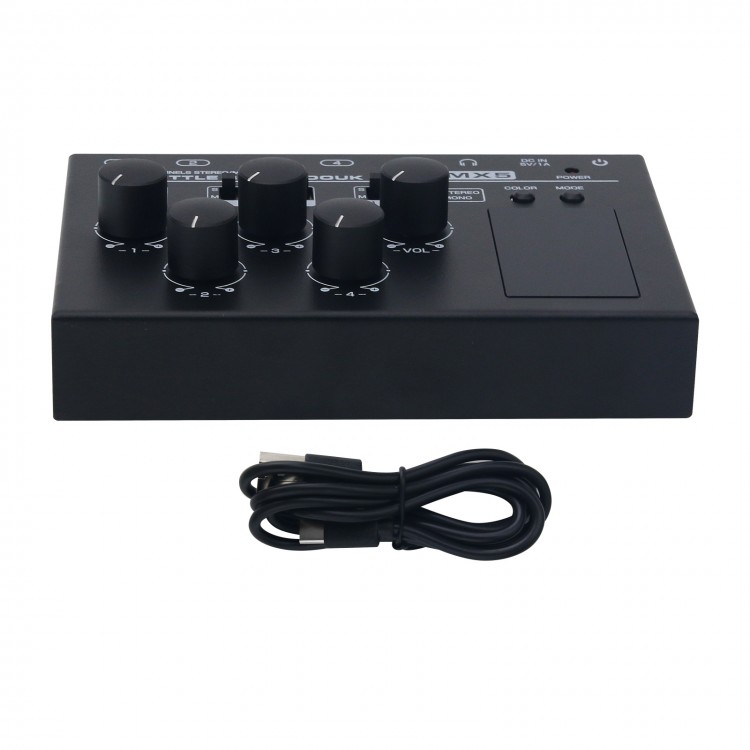

Package Included:
* 1 x MX5 mixer
* 1 x USB cable (type-c)
Packaging Details:
* Packing size (WxDxH): 190mm x 115mm x 65mm/7.48" x 4.53" x 2.56"
* Weight: 500g/1.10lbs
