One Little Bear VU29 29-Segment Creative Voice Control Musics Spectrum Display Desktop Full Color Rhythm Light

One Little Bear VU29 29-Segment Creative Voice Control Musics Spectrum Display Desktop Full Color Rhythm Light

Description:
VU29 is a novel full-color music visualizer spectrum. It is the perfect combination of music and art. So, it is suitable for music lovers as well as electronic lovers.

The spectrum display has 8 classic display modes. And the modes can be set by pressing the keys. Support left and right channel income; set power-off memory; adjust input volume and gain to make the display amplitude within a suitable range. The VU29 can be placed vertically or flat on your desktop. It has power and audio input ports on the side and back for easy wiring.

Features:
- 29 individual full color W2812 lights+ and 29 pieces of clear acrylic boards
- The falling speed of the main beam of the light bar, the holding time of the peak light, and the falling speed of the peak light can be adjusted individually
- Quick manual adjustment: signal gain/main beam descending speed/display brightness
- Monochrome mode and color mode can be selected
- Main light bar and peak light color can be selected (divided into rainbow mode and monochrome mode)

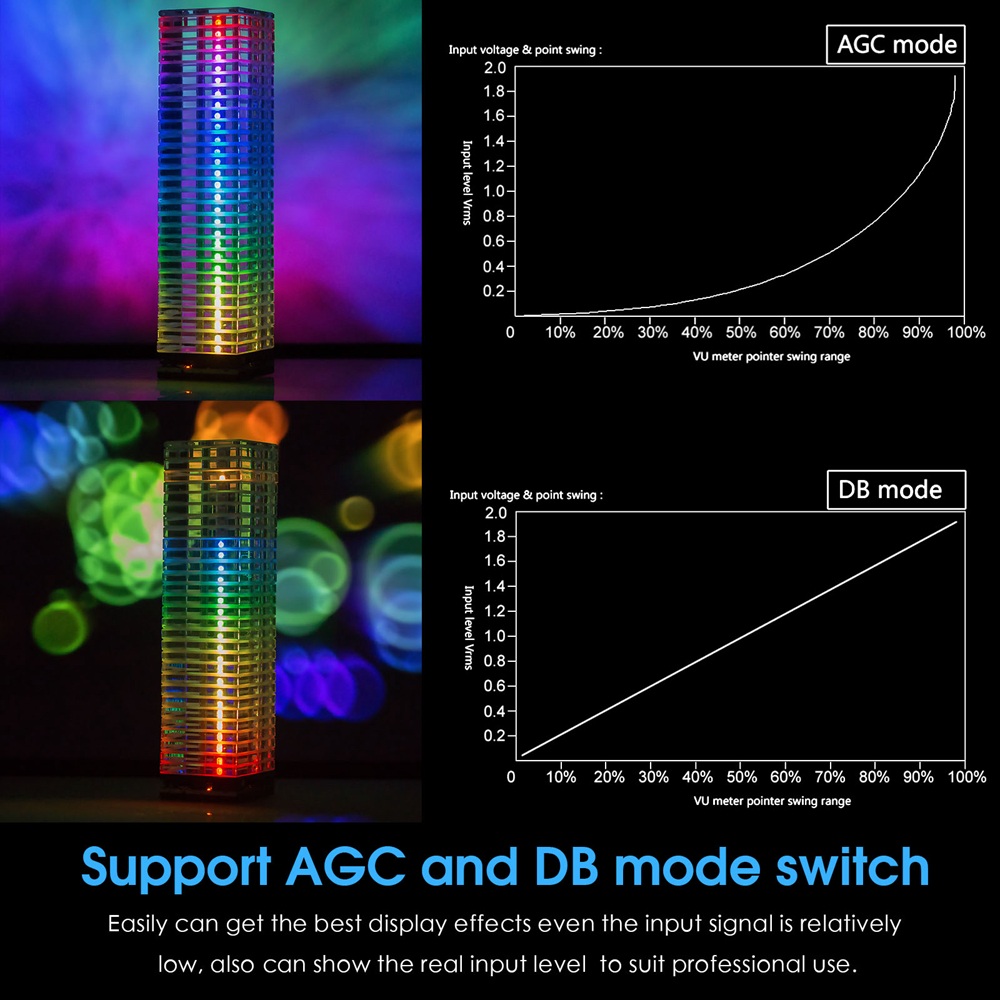

- DB mode and AGC mode are optional
- Gradient effect can be enabled and disabled

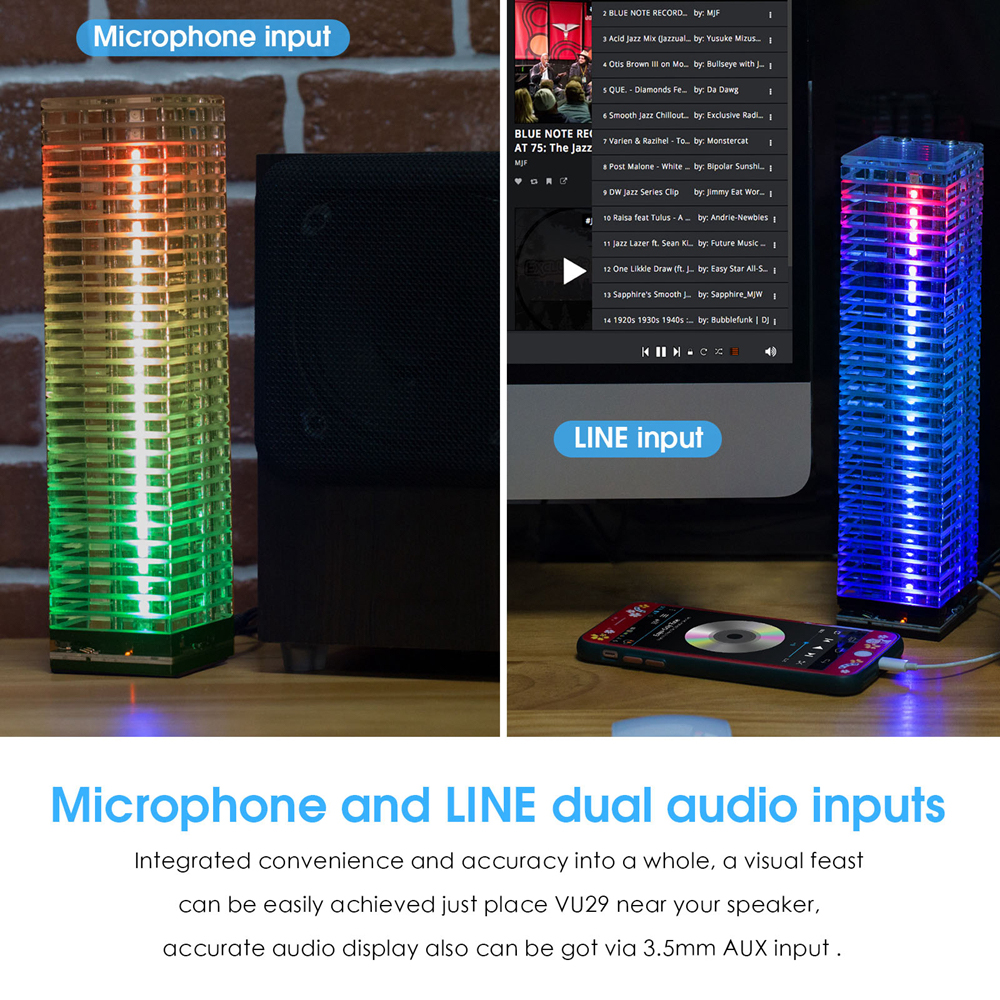

- Input method: microphone pickup (MIC)/ line input (LINE IN) (selected by remote control)
- 10-level manual quick adjustment of its brightness
- Small desk lamp. Color selection and brightness adjustment are also supported in desk lamp mode
- Support infrared remote control
- The power-off memory function can save all the setting parameters. It is convenient to use the original setting scheme when the machine is turned on next time
- 8 beat rhythm patterns and 10 built-in color schemes. Each beat pattern and color scheme supports manual as well as random selection
- As for LINE input, it can display left channel, right channel, or stereo (selected by remote control). Through this selection, two VU29s can be used to display left and right channels respectively. In this way, a stereo display scheme is formed

Attention:
- Please not share the VU29 with a music player in a USB design. This will cause common ground noise. The VU29 requires a separate USB power supply.
- If it is full screen, please reduce the gain or input volume; if the display is still beating when there is no sound source input, please change the power supply to test or use a better audio cable.
- If you need to connect the audio input terminal to a amplifier output or speakers, use capacitors and potentiometers to attenuate the signal, and make sure that the audio signal input voltage should be within 5V, otherwise it will damage the spectrum display.
- Please not twist the acrylic too hard. It will easily damage or loosen the level meter!

Specifications:
- Audio input: MIC/LINE (3.5mm AUX)

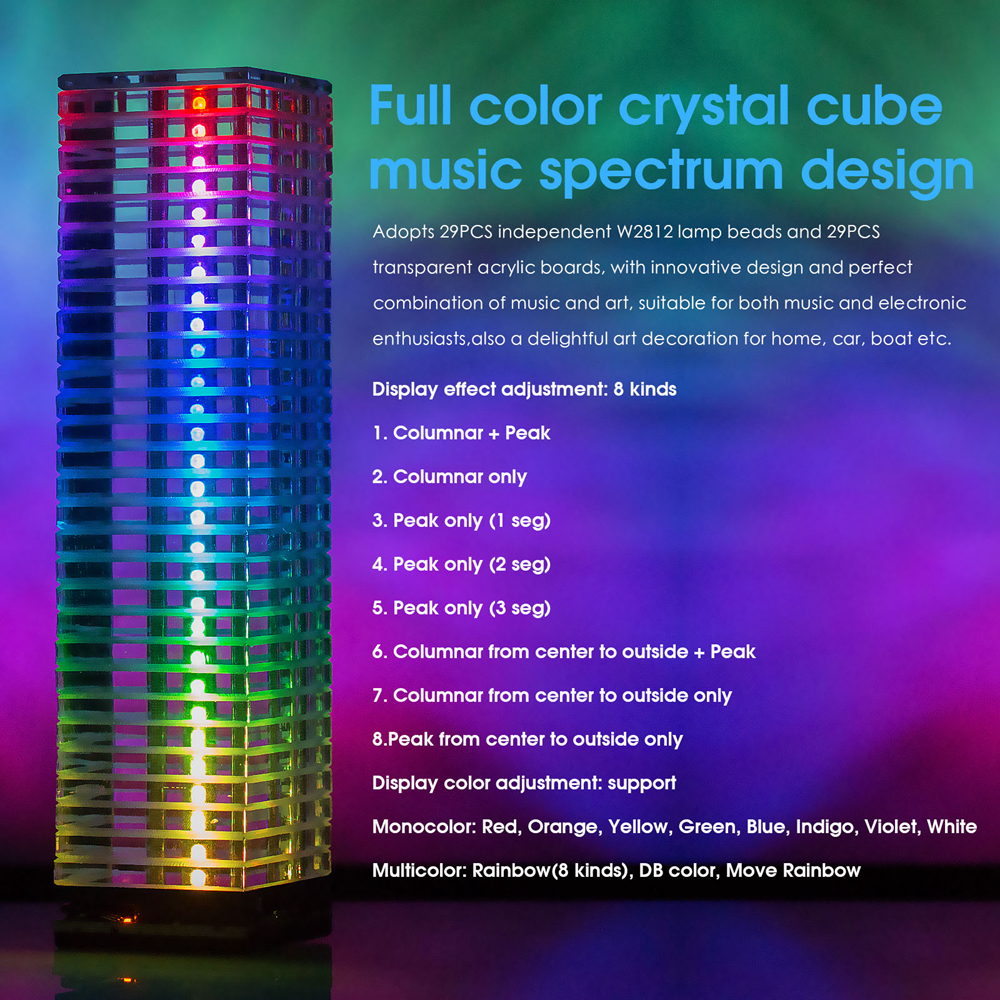

- 8 Display modes: 1. Columnar + Peak; 2. Columnar only; 3. Peak only (1 seg); 4. Peak only (2 seg); 5. Peak only (3 seg); 6. Columnar from center to outside + Peak; 7. Columnar from center to outside only; 8. Peak from center to outside only
- 8 monochrome schemes: Red, Orange, Yellow, Green, Blue, Indigo, Violet and White
- Multi-color: Rainbow (8 kinds), DB color, and Move Rainbow
- Input signal gain adjustment: support
- Brightness adjustment: support
- Gain adjustment: support
- Fall speed adjustment: support
- Holding time adjustment: support
- Display mode: AGC/DB
- Remote control: supported
- Power-off memory: supported
- Working voltage: DC 5V (Micro USB / Type-C)
- Dimensions: 60 x 60 x 245mm / 2.4 x 2.4 x 9.6" (WxDxH)
- Net weight: 1.1kg/2.4lb

Package Included:
- 1 x LED Music Spectrum Finished
- 1 x Remote Control
- 1 x User Manual
- 1 x Audio Splitter Cable (1 to 2)
- 1 x Micro USB Cable

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
