| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $89.35 | $87.52 | $84.79 | $81.14 | Contact US |

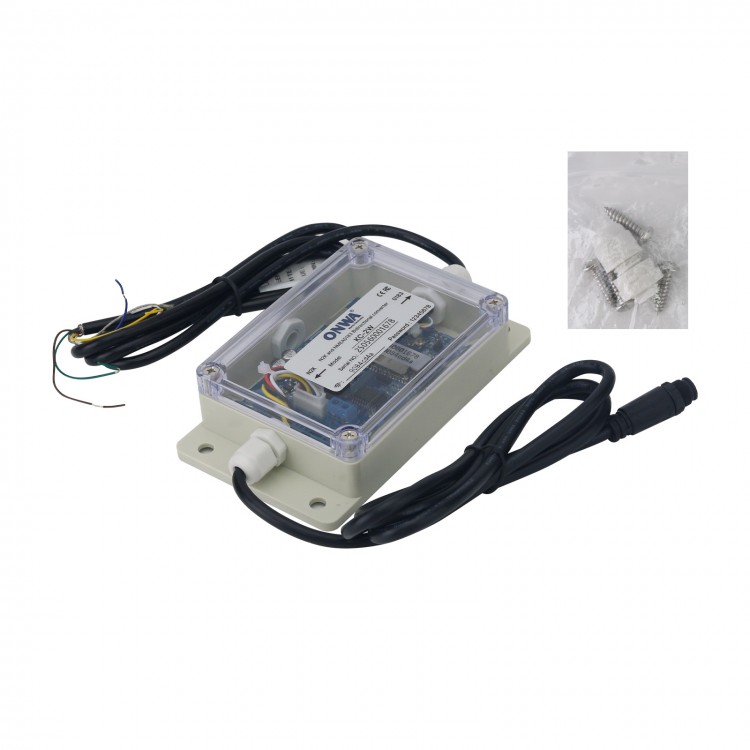

ONWA KC-2W Converter N2K (NMEA2000) and NMEA0183 Bidirectional Converter with Built-in Wifi Solution
Features:
* NMEA2000 certified
* Converts NMEA0183 sentences to N2K (NMEA2000) PGNs
* Converts N2K (NMEA2000) PGNS to NMEA0183 sentences
* Supports fuel flow sensor
* Firmware upgrade and NMEA0183 output baud-rate by webpage configuration
* Built-in WIFI solution
Specifications:
General:
Power supply (N2K Port):
* Electrical: 9 ~ 30VDC
* Current drain: 50mA at 12VDC
* Protection: over-voltage, power transient and accidental reverse polarity protection
N2K Port (IEC61162-3):
* Supported PGNs: 126992 , 127237, 127245, 127250, 127251 , 127258 , 127488, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129044, 129283, 129284 , 129291 , 129539 , 129540 , 129793 , 129794 , 129795, 129797, 129798, 129801, 129802, 129809, 129810, 129811, 129812, 130306, 130310, 130311 and 130312
* Electrical: Opto-isolated on N2K Can bus
* Connector: M12 male
* Cable length: 1.2 meter
* Factory default: All above supported PGNs are enabled
NMEA0183 Port (IEC61162-1):
* Supported Sentences: AAM, AMB, APB, BBM, BWC, DBT, DPT, DSC, DSE, GGA, GLL, GSA, GST, GSV, HDG, HDM, HDT, HSC, MDA, MTW, MWD, MWV, RMB, RMC, ROT, RPM, RSA, VBW, VDM, VDO, VDR, VHW, VLW, VTG, VWR, XTE, XDR and ZDA
* Electrical: Output: RS422 & RS232; Input: RS422 & RS232
* Baudrate: Input: Automatic detection (up to 115200); Output: Configurable (factory default 38400)
* Factory default: All above supported NMEA0183 are enabled
Environmental Conditions:
* Working temperature: -20°C to +55°C
* Humidity: 93% ±3% on 40°C
* Waterproofing: IPX67
Package Included:
* 1 x Main unit
* 1 x White terminal block
* 1 x Four screws
* 1 x Instruction manual
Packaging Details:
* Weight: 0.5kg
