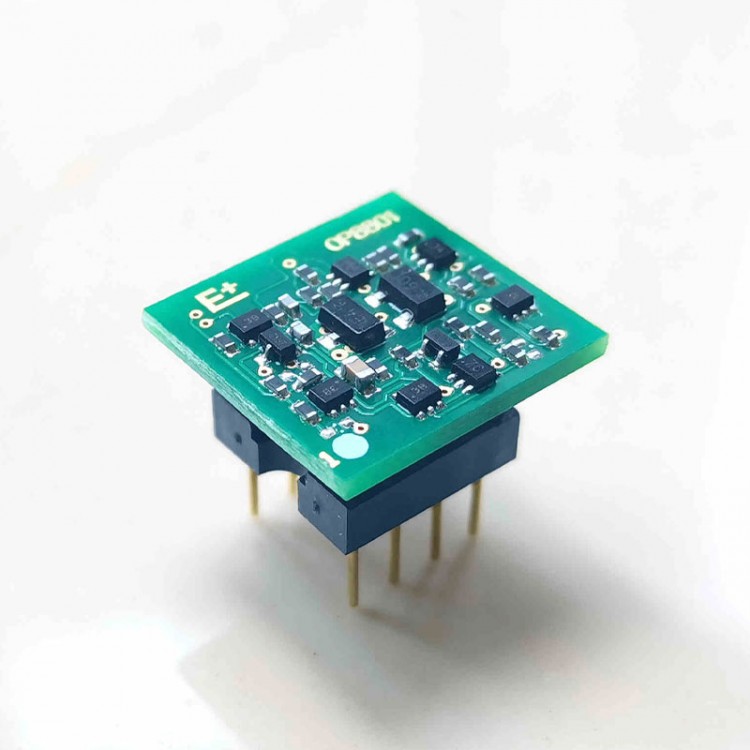

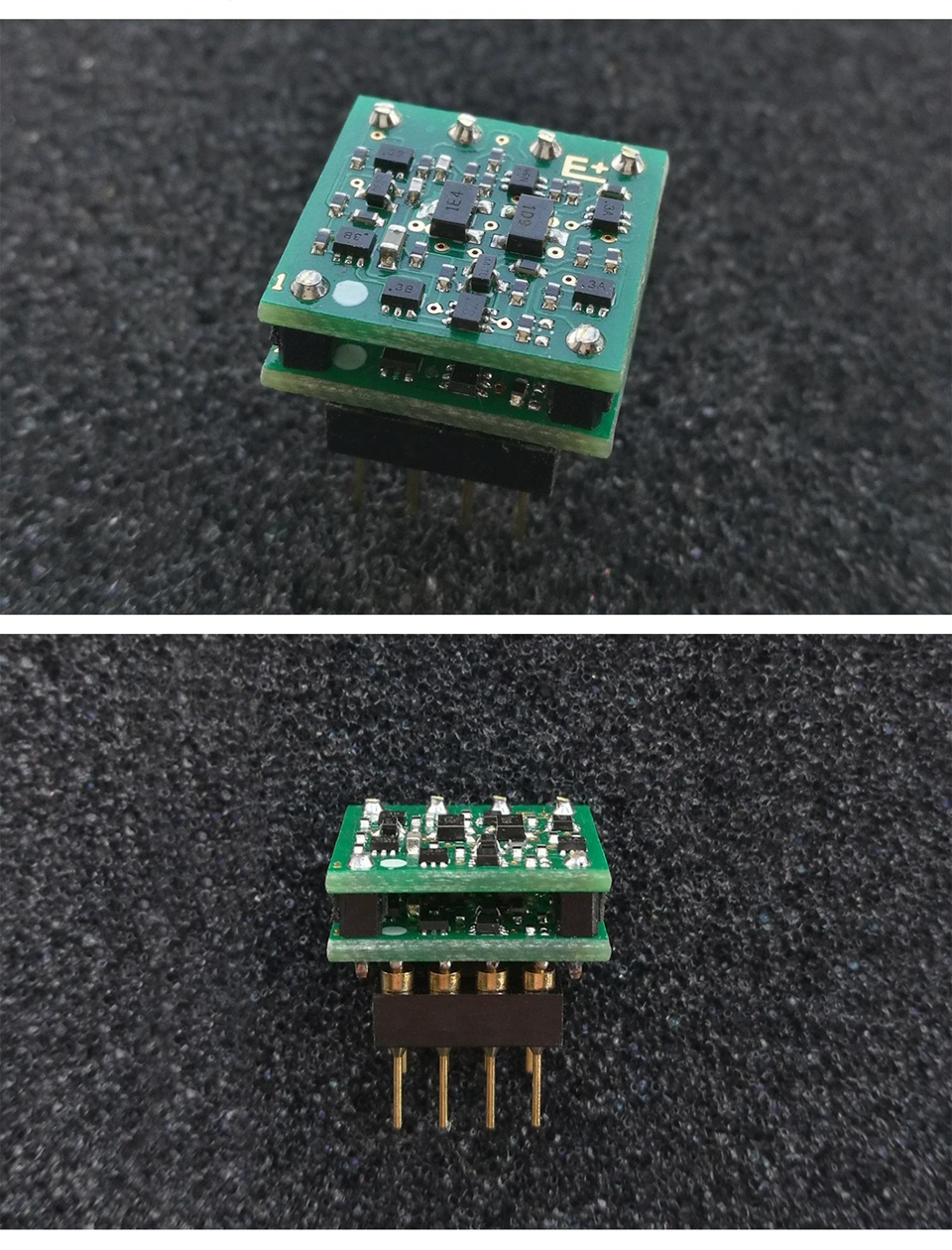

OP8801 Fully Discrete Dual Operational Amplifier Module 65mA Maximum Output with 14 Pairs of Transistors
Description:

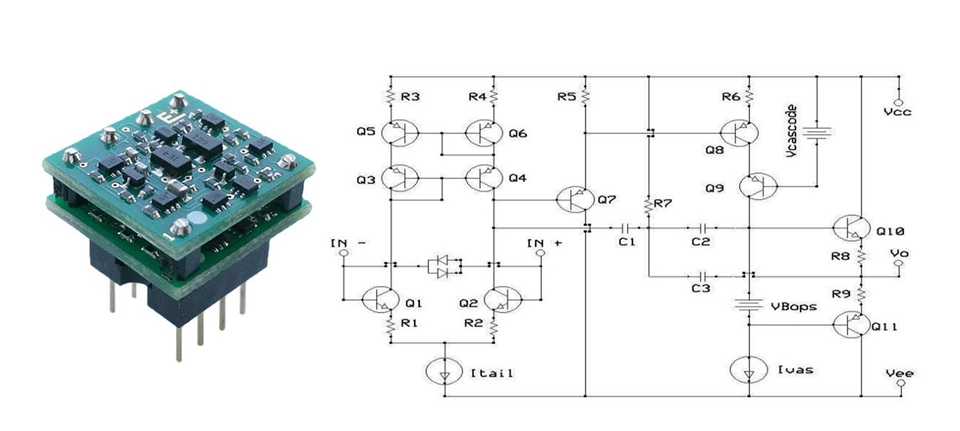

- This dual operational amplifier is made of fully discrete components, with original imported 14 pairs of twin transistors, 4 pairs of transistors, and 2 pairs of medium power transistors for current amplification. The components of the upper and lower layers are basically the same, which can achieve better consistency in pairing.
- Class A OUTPUT is 15mA, with a maximum output of 65mA.
- As a result, the overall sound field is wide and full, the scene is grand, the layers are distinct, the mid frequency is bright and clear, the density is high, and the low frequency is deep and elastic.
Features:
- High frequency performance: Excellent high-frequency resolution, relaxed and lively sound, suitable for string instruments such as violin, guitar, and harp.
- In terms of performance, transient control is excellent. Under better device driving, its dynamics and density perform better.
- Mid frequency performance: The vocal performance is relatively full, with good resolution and resolution, the sound is smooth, the vocal details are natural, the layers are clear, and the sound is clean.
- Low frequency performance: Low frequency is sturdy, powerful, and faster, clean.
- Note: The overall sound quality and style are generally similar, but there may be differences among different devices. Please be cautious when payment if you mind. Thank you.
Specification:
- Power supply: ±6V to ±18V
- Class A output current: 15mA
- Maximum output current: 65mA
- THD+N: 0.0003% (1kHz), -112dB
- Low noise: 3.6nV/√Hz at 10kHz
- Open loop gain: -25dB

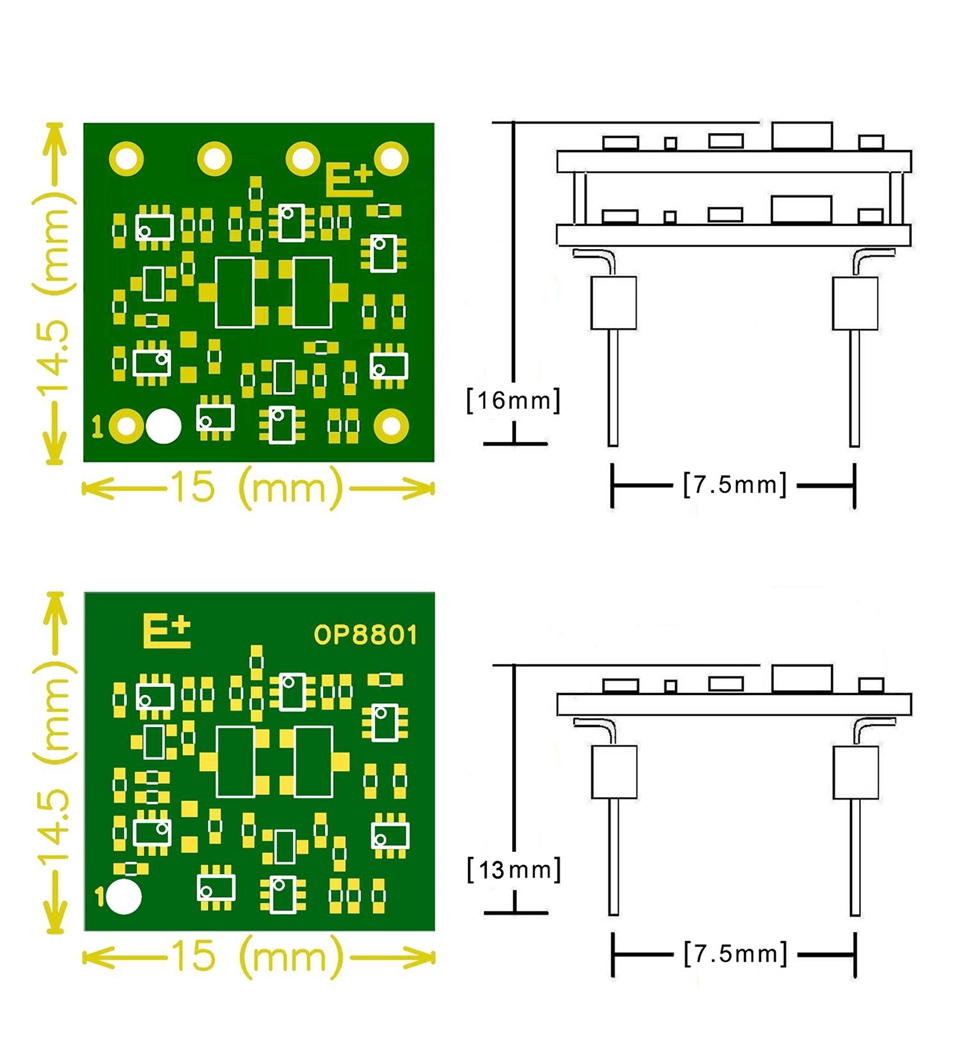

- Size: 14.5 x 15 x 16mm

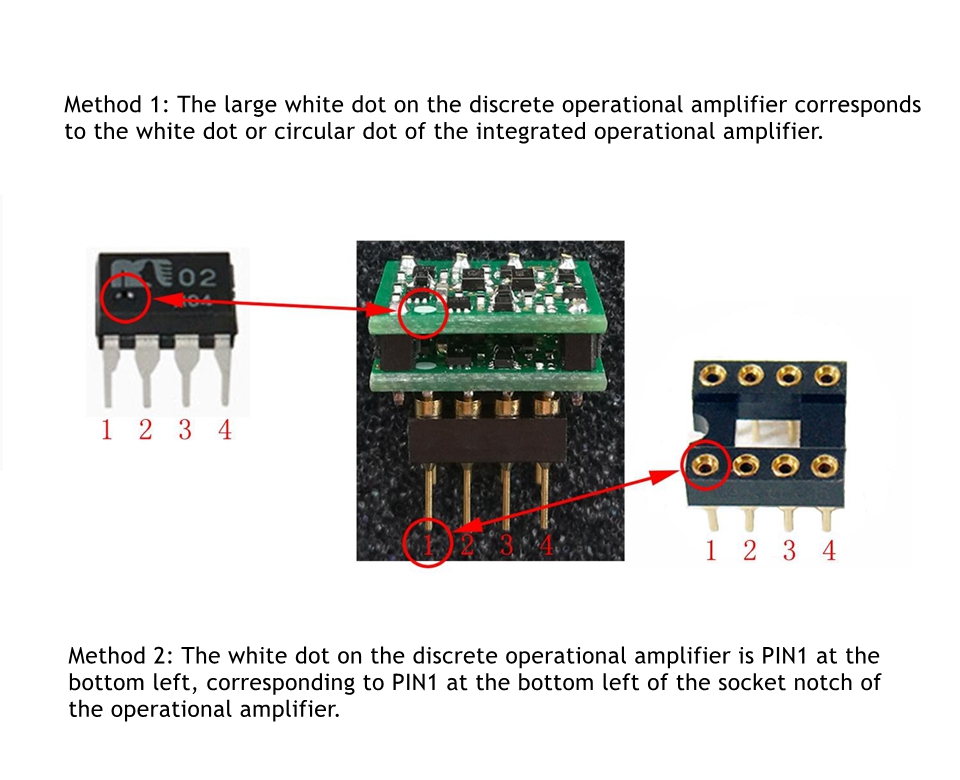

Replacement for:
- AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5534, LF353, LM4562, LME49860, LM833N, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, 0P275, OPA1612, OPA2277PA, OPA2132, OPA2134, 0PA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSESO1, MUSES02, MUSES8820, MUSES8920, MUSES8832, BA15532.
Package Included:
- 1 x Operational Amplifier Module
