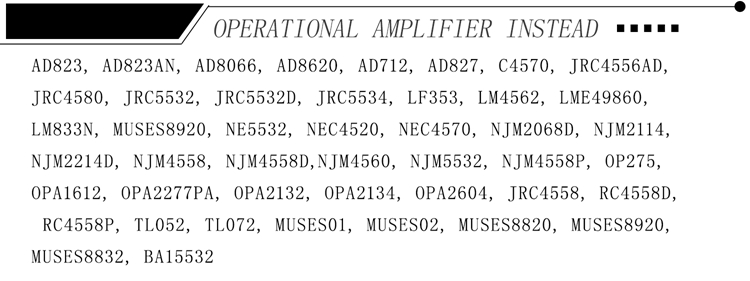

OP8802 Dual Op Amp Module Discrete Component Class A Large Current For SS3602 OPA1612 LME49720

OP8802 Dual Op Amp Module Discrete Component Class A Large Current For SS3602 OPA1612 LME49720

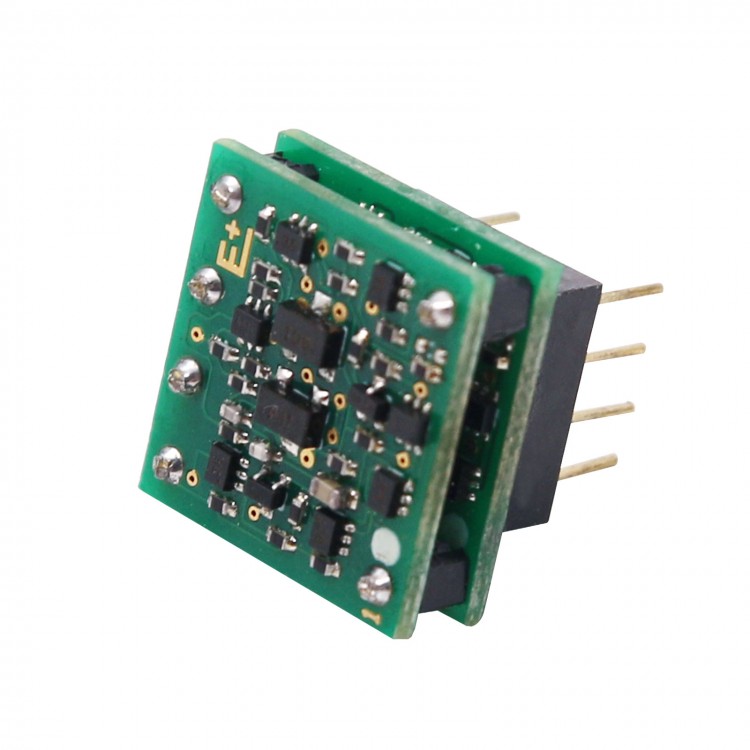

Description:

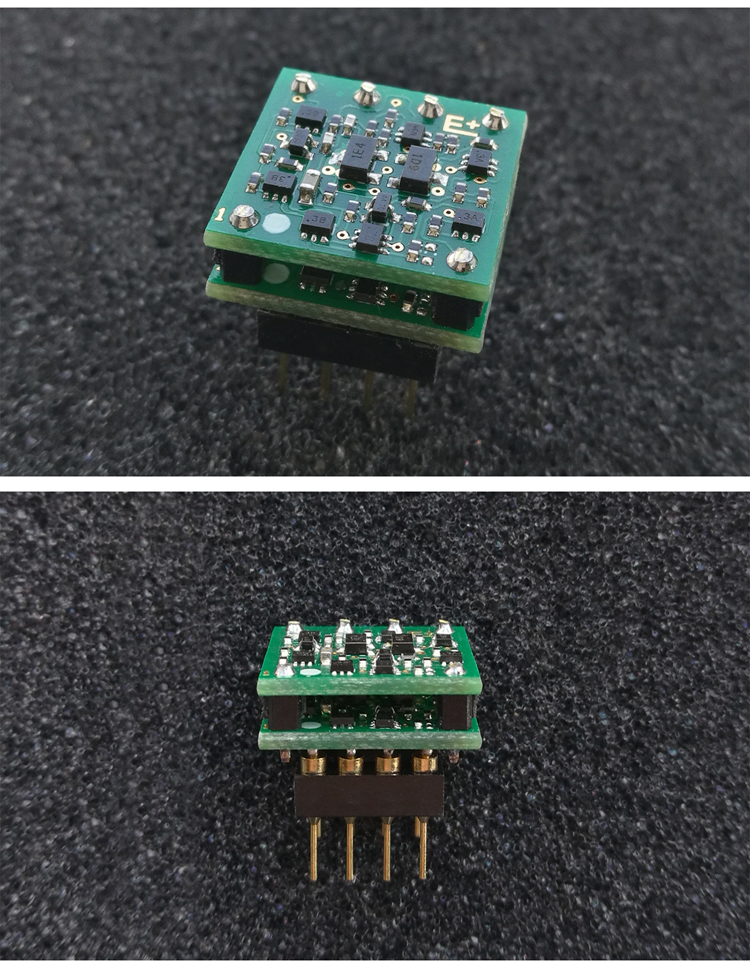

The dual op amp module are designed with fully discrete components. Original 14 pairs of transistors, 4 pairs of transistors, and 2 pairs of medium-power pair transistors are used for current amplification. The component layout of the upper and lower layers is basically the same, which can achieve better matching.

Class A output (CLASS A OUTPUT) 15MA. The maximum output is 65MA.

Such being the case, the sound field of the overall tone is wide. Round sound with clear layering. IF is bright and clear, with high density. Low-frequency performance is ensured, with flexibility.

Features:
- High-Frequency Performance: Excellent analytical capacity. Relaxing sound. It excellent transient control in violin, guitar and harp string performance. For use with better device drivers, its dynamics and density perform better.
- IF Performance: Relatively round human voice. Outstanding analytic ability and imaging. It features natural details for human voice, with clear layering and clean sound.
- Low-Frequency Performance: Solid, powerful and clean, at faster speed.

Note: The overall sound ray of the module is generally close to sound style. The effect will be different for different devices. Please make sure that you don't mind before purchasing. Thank you!

Specifications:
- Power Supply: ±6V to ±18V
- CLASS A output current 15mA
- Maximum output current 65mA
- Full discrete component
- THD+D: 0.0003% (1KHz), -112dB
- Low Noise: 3.6nV / √Hz at 10KHz
- Low Open-Loop Gain: ~5dB

Package Included:
- 1 x Dual Op Amp Module
