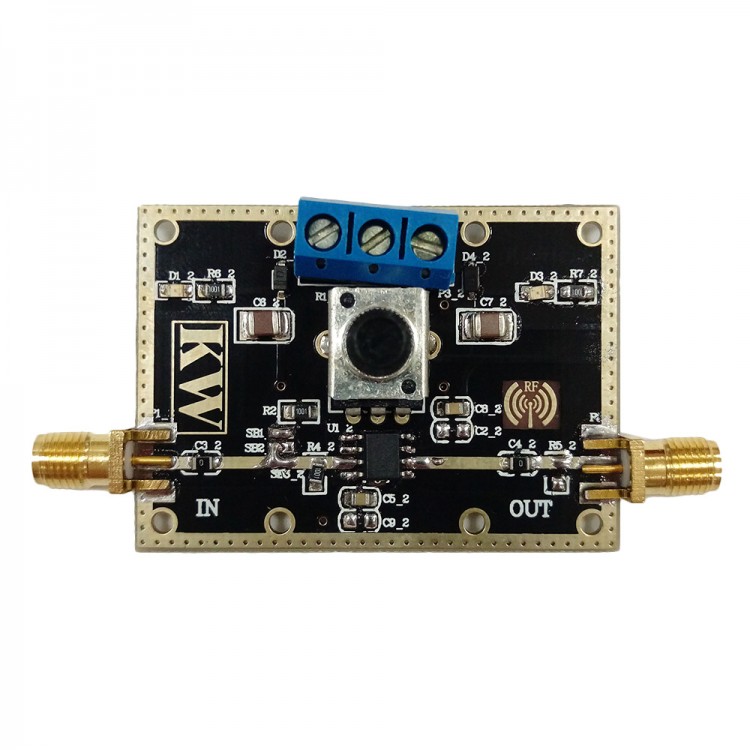

OPA177 Voltage Amplifier Module Signal Processing Onboard OP AMP for DIY
Specification:
- Name: OPA177 amplifier module
- Size: 50mm X 36mm
- Power: ± 3V ~ ± 18V (MAX. -+22V)
- Compatible with SOP8 series chip
- Onbard OP AMP can be changed:
Same phase amplifier
Reverse amplifier
Emitter follower
Can be converted into an integrated amplifier
Can be changed to a differential amplifier
OPA177 op amp parameter:
- Low noise amplifier
- Power supply range: + 3V ~ + 18V
- Voltage input range: 0 ~ + 18V
- Working temperature range: -40 ~ 85
- Input offset voltage: 25 V (typical value)
- Input offset voltage temperature coefficient: 0.3 V/ C (typical value)
- Input offset current: 0.3nA (typical value)
- Input bias current: 0.5nA (typical value)
- Common mode rejection ratio: 120dB (typical value)
- The maximum open loop gain: Min 130dB (typical value)
- Input impedance: high input impedance 45MOhm (typical value)
- Typical bandwidth: 600KHz
- Low quiescent current: 1.5mA
Package List:
- 1 x Voltage Amplifier Module
