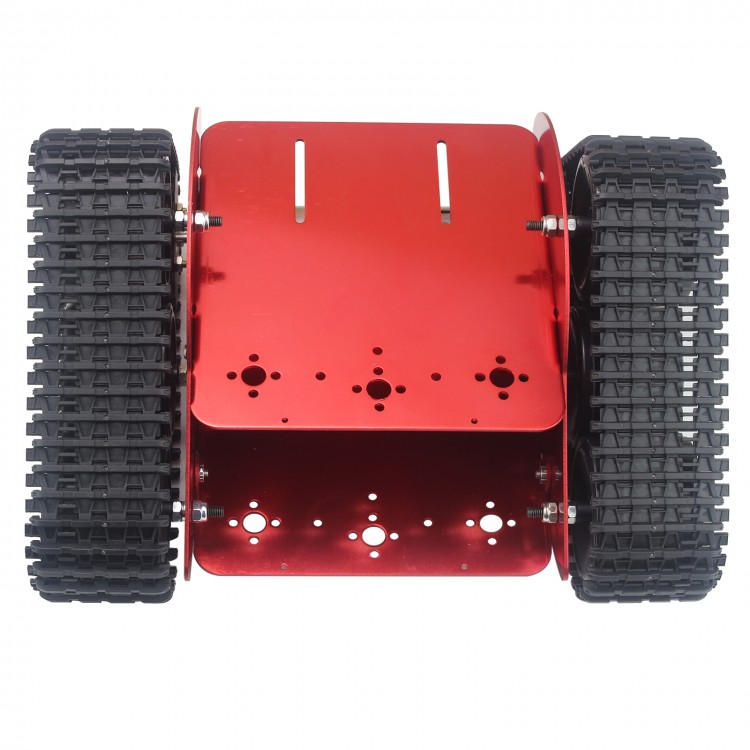

Open Source Red Tracked Robot Chassis Track Tank Chassis Unfinished 7.5kg Load Capacity for 51 MCU

Open Source Red Tracked Robot Chassis Track Tank Chassis Unfinished 7.5kg Load Capacity for 51 MCU

Features:
- 2pcs high-speed DC geared motors
- Open Source: All source code and schematic diagram are provided
- Can be used with multiple external modules
- Easy to replace MCU module
- Support bus steering gear control
- Over-current protection for 6-Way steering gears
- Support control of motors
- Sound an alarm when it is under-voltage
- Support secondary development
- Dual power supply output
- Can be connected to ultrasonic module
- Hard aluminum alloy chassis body prolongs it service life
- Supports APP control for Android smartphones, joystick and tablet PC control
- Rich tutorial videos helps you be a veteran robotic player

Specifications:
- Working Voltage: 6.5V-7.4V
- Using Time: >1 hour
- Charging Time: 3-4 hours
- Load Capacity: 7.5kg
- Speed Limit: 0.54m/s
- Support for PS2 Joystick Control: ≥ 10m (Open Space 20m)
- Fit for Mobile Phone APP Control: ≥ 10m (Open Space 15m)
- Climbing Capacity: 17°
- Dimensions: 173 x 220 x 108mm
- Weight: 0.94kg

DC Geared Motor:
- Voltage Range: DC 5V-9V
- Speed: 188 r/min (9V)
- Output Shaft Diameter: 4mm
- Reduction-gear Ratio: 45:1
- Torque: 1.5kg

Package Included:
- 1 x Set of Metal Bracket
- 2 x DC Geared Motors
- 1 x Set of Nylon Tracks
- 2 x Drive Wheels
- 6 x Bearing Wheels
- 1 x Set of Tool Accessories

Note:
- 2pcs DC geared motors are included.
- The chassis kit is unfinished. Self assembling is needed, providing detailed assembly materials.
- Only tank chassis body kit is included, but electronic control system is not included in the package.
