| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $34.67 | $33.96 | $32.90 | $31.49 | Contact US |
32115 JTAG Debugger Hardware Debugger Downloader Has 24 I/O Channels w/ Input Protection Circuitry
$88.83
PX Logic 32 USB3.0 Super High Speed Logic Analyzer 2-Channel PWM Output Compatible with Win/Mac/Linux
$122.56
10K-5Mbps 3-Channel CANFD Bus Data Recorder Offline Recording and Playback 90M/s Type-C/USB3.0 High Speed Copy
$132.84

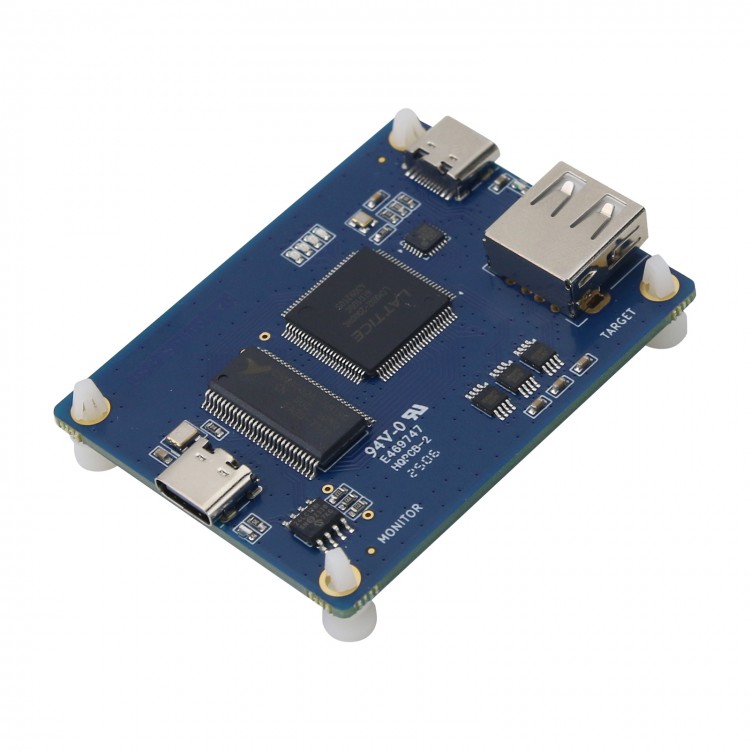

Opensource USB Bus Analyzer Board USB Sniffer USB2.0/1.1 Bus Protocol Debugging for CPLD/FPGA Learning
Hardware:
- Adopting an open-source design solution, redrawing the PCB, and designing a gold-plated board to increase power supply stability and improve signal SI.
- Using tantalum capacitors as decoupling capacitors for power supply to reduce power ripple.
- Reserve CPLD signal testing points.
- The board test speed can be stable above 48Mbps.
- 4-channel LED.
Software:
- Default programming of open-source USB firmware for wireshark.
- Provide simple routine code for CPLD, such as dimming, which can be used for FPGA beginner learning.
Function:
- USB2. 0/1.1 Bus protocol debugging, for wireshark
- For CPLD/FPGA Learning and Development
More Details:
- This board did some BOM/size change/optimization based on the board for Alex.
- https://github.com/ataradov/usb-sniffer
Package Included:
- 1 x USB Bus Analyzer Board
