Description:

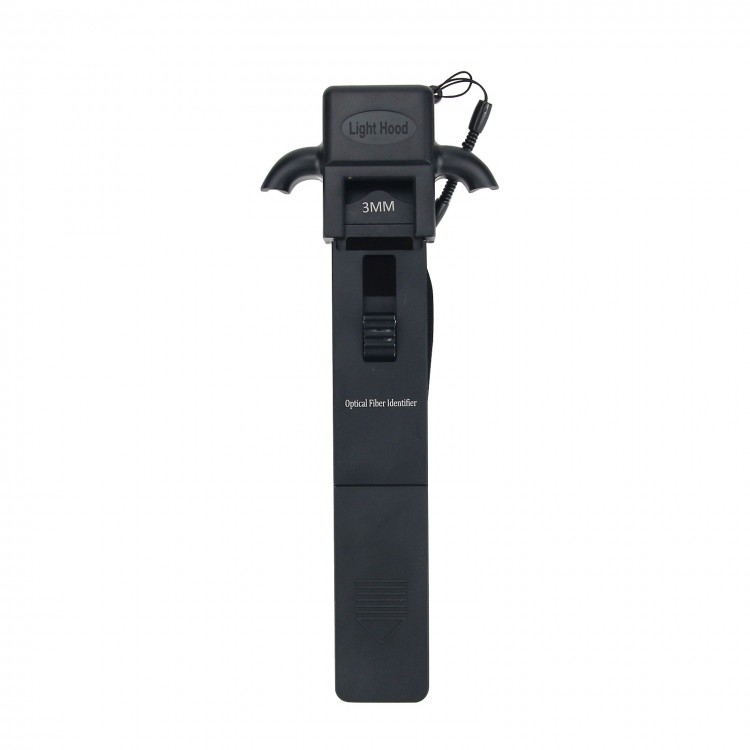

TM301 optical fiber identifier is a kind of optical fiber maintenance tool for non-destructive optical fiber identification work. It can detect in any position of single-mode and multi-mode fiber. During maintenance, installation, wiring, and recovery, it is often necessary to find and separate a specific fiber without interrupting business. By injecting a 1310nm or 1550nm signal with modulation tones (270Hz, 1 kHz, 2kHz) into the fiber at one end, and identifying it on the line with an identifier. TM301 can also indicate the direction of the service.

Features:
- Digital display relative optical power
- Test online without interrupting business
- One button to operate. Simple and convenient operation
- Can identify 270Hz, 1KHz, 2KHz modulation signals
- Optical fiber clamp head with mechanical damping design to ensure no damage to your optical fiber
- Provide corresponding adapters for bare fiber and various pigtails
- Hood design to avoid ambient light interference
- Low electricity alarm tells you it is time to replace the power supply

Specifications:
- Model No.: TM301
- Identified Wavelength Range (nm): 800~1700nm
- Detector: InGaAs
- Adapter Types: Diameter 0.25mm (for bare fiber), Diameter 0.9mm, Diameter 2.0mm, Diameter 3.0mm (for pigtail)
- Modulation Frequency: CW, 270Hz, 1KHz, 2KHz
- Signal Direction Indication: Left & right LED direction indicators
- Signal Direction Detection Range (CW/0.9mm bare fiber):
  * -46 to 10dBm (1310nm);
  * -50 to 10dBm (1550nm)
- Signal Power Detection Range (CW/0.9mm bare fiber): -50 to 10dBm
- Signal Frequency Indication: 270Hz, 1KHz, 2KHz
- Frequency Detection Range (Average):
 * For fibers in the diameter of 0.9mm, 2.0mm, 3.0mm: -30 to 0dBm (270Hz, 1KHz), -25 to 0dBm (2KHz);
 * For fibers in the diameter of 0.25mm: -25 to 0dBm (270Hz, 1KHz), -20 to 0dBm (2KHz)
- Insertion Loss (Typical Value):
 * 0.8dB (1310nm);
 * 2.5dB (1550nm)
- Operating Temperature: -10℃ to 60℃
- Storage Temperature: -25℃ to 70℃
- Weight: 200g

Package Included:
- 1 x Optical Fiber Identifier
- 1 x User Manual
- 4 x Adapter Clamps
- 1 x Oxford Bag

Note: Battery is not included in the package.

Maintenance:
- Avoid contacting the fiber optic adapter with hard objects and keep it clean.
- When storing, please keep it ventilated and dry to prevent the product from getting wet.
- When not in use for a long time, please remove the power supply and store it.
