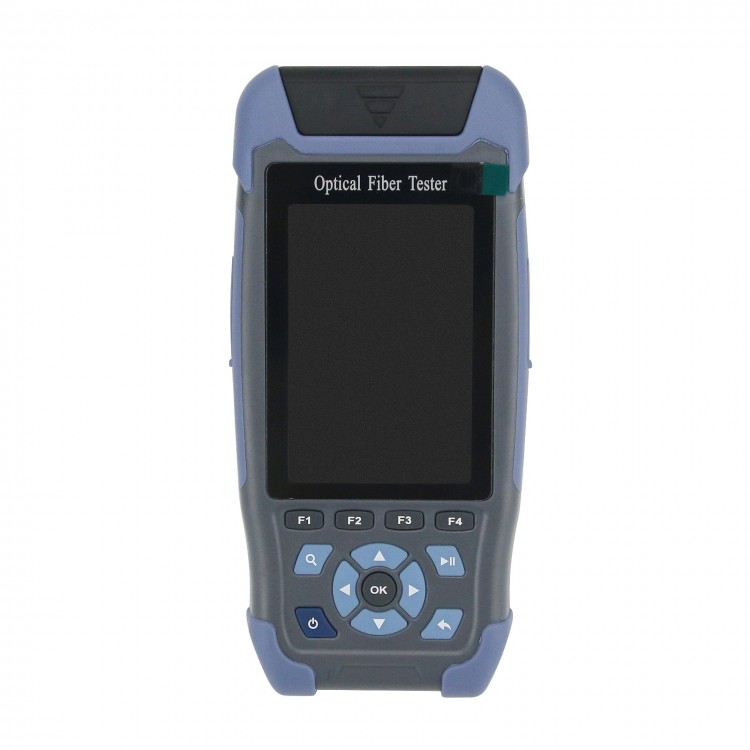

Optical Fiber Tester OTDR Optical Time Domain Reflectometer w/ OPM Light Source VFL For SM JW3302S

Optical Fiber Tester OTDR Optical Time Domain Reflectometer w/ OPM Light Source VFL For SM JW3302S

Description:
JW3302S is a multifunctional photoelectric integrated tester. It is suitable for engineering construction and maintenance based on FTTx and access network, testing fiber breakpoints, lengths, and losses.

8 Main Functions:
1.OTDR Tester
2.Intelligent Optical Link Mapper
3.Optical Power Meter
4.Red Light Source
5.Stable Light Source
6.Network Cable Sequence Checking
7.Network Cable Length Measurement
8.Lighting

Features:
- 3.5-inch color LCD screen
- One-button automatic detection of input light
- Rubber-coated shell resistant to shock and dropping
- Quick to detect fault points. Highly integrated OTDR, intelligent optical link mapper, stable light source, high-power optical power meter, red light source, network cable sequence checking, network cable length measurement, and lighting functions in one
- Universal connector. FC / SC / ST / LC are interchangeable
- Storage capacity up to 600 records. Support TF card
- Derived data via USB port
- Rechargeable via USB charging cable or power bank. Suitable for long-term field work
- Ergonomic design and compact size

Technical Parameters:
OTDR:
- Measured Wavelength: 1310nm/1550nm±20nm
- Type of Optical Fiber: G.652 SM
- Dynamic Range: 24dB/22dB
- Event Dead Zone: 3m
- Attenuation Dead Zone: 8m
- Measuring Range: 500m-60km
- Pulse Width: 3ns-10us
- Accuracy of Measuring Distance: ±(1m + Sampling Interval + 0.005% x Measuring Distance)
- Linearity: ±0.2dB/dB
- Sampling Points: 16k-128k
- Sampling Resolution: 0.05m-8m
- Reflection Accuracy: ±3dB
- Data Storage: Internal ≥600 records; Support TF card
- Laser Safety Level: Class II
- File Format: SOR Standard File Format
- Connector: FC/UPC (Interchangeable with SC and ST)

Optical Power Meter (OPM):
- Wavelength Range: 800nm-1700nm
- Connector: Universal Connector FC/SC/ST
- Measuring Range: -50dBm to 26dBm
- Uncertainty: ±5%
- Frequency Identification: CW/270/330/1K/2KHz
- Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm

Light Source:
- Laser Type: FP-LD
- Output Wavelengths: 1550nm±20nm; 1310nm/1550nm±20nm
- Output Power: ≥-5dBm
- FM Frequency: 270/330/1K/2KHz
- Stability: CW, ±0.5dB/15min (Test after preheating for 15min)
- Connector: FC/UPC (Interchangeable with SC and ST)

VFL:
- Working Wavelength: 650nm±20nm
- Output Power: ≥10mW
- Operating Mode: CW/1Hz/2Hz
- Connector: Universal FC/SC/ST

Overall Parameters:
- Display: 3.5-inch Color LCD Display
- Data Port: Micro USB
- External Memory: Support for TF card
- Power Adapter: 5V DC, 2A
- Working Temperature: -10℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 0-95% non-condensation
- Unit Weight: ≤350g

Attention:
- When tested at 25℃±2℃ with maximum pulse width, the average time is not less than 3min.
- Event blind zone test conditions are minimum range, minimum pulse width, and fiber end-face reflection loss ≥45dB, typical values.

Package Included:
- 1 x Optical Fiber Tester
- 1 x Power Adapter
- 1 x Data Cable
- 1 x CD (with Analyzing Software & Instructions)
- 1 X User Manual
- 1 x SC/UPC Connector
- 1 x Test Report
- 1 x Certificate
- 10 x Cleaning Cotton Sheets
- 1 x Device Bag
