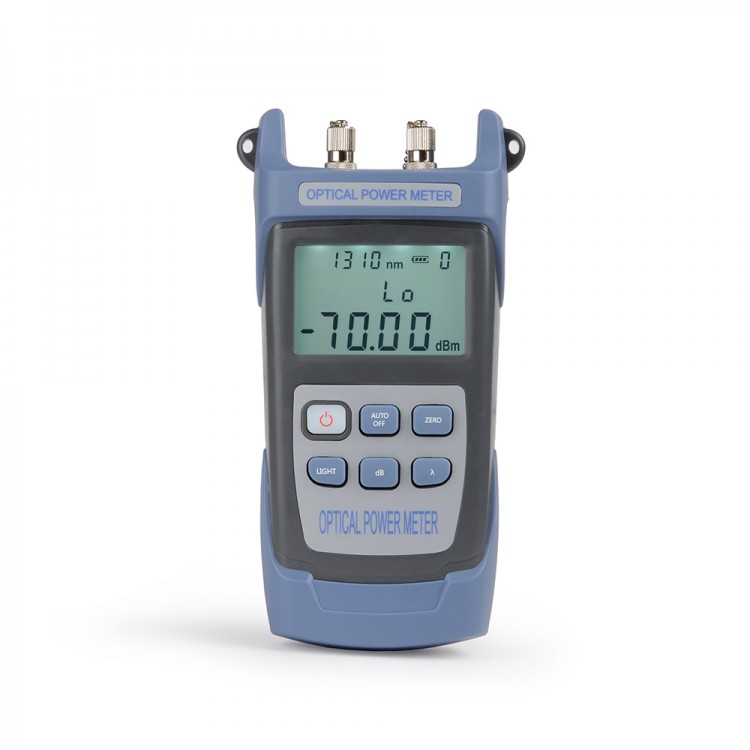

Optical Power Meter + 5KM Red Light Optical Multimeter NK302
Description:
NK302 optical multimeter is a hand-held, intelligent and multi-functional test instrument that integrates the functions of light source and optical power meter. In addition to the absolute and relative power tests, it can also complete the tests of optical fiber, optical cable and optical passive components. It is suitable for the construction and maintenance of optical fiber communication and cable TV systems.
Features:
- Thanks to its compact size and light weight, it is convenient to carry and easy to use
- Can be powered by built-in rechargeable batteries or 3*AA Alkaline dry batteries (Batteries are not included)
- Universal Micro-USB Interface: Support multiple power supplies such as charger adapter, power bank, and PC tablet, featuring long working hours
- Smart Switchable Power Supplies: Priority to using power adapter, followed by built-in rechargeable batteries, and then dry batteries
- Designed with dustproof cover, the optical interface is well protected from pollution
- One-button zero calibration ensures accurate tests of weak signals
- Typical Application: It can be applied to construction and maintenance of fiber-optic communication and cable TV systems, as well as loss tests of optical passive components.
Optical Power Meter:
- Optional Module No.:
P1: Power Range (-70dBm to 10dBm)
P2: Power Range (-50dBm to 26dBm)
- Calibration Wavelengths: 850/980/1300/1310/1490/1550/1625/1650 nm
- Degree of Uncertainty: ±5%（-10dBm, 1310nm）
- Resolution: Linear Mode: 0.1%; Logarithmic Mode: 0.01dB/0.001dB
Red Light:
- Central Wavelength: 650±20nm
- Optional Output Power: 5mW/10mW/20mW/30mW/50mW
Optical Light Source:
- Central Wavelength: 1310±20nm, 1550±20nm
- Output Power: ≥-5dBm
- Stability: ±0.05dB/15min
Other Parameters:
- Optical Interface: FC/UPC
- Electrical Interface: USB
- Optional Power Supply: AC/DC Power Adapter (220V AC± 10%, 50-60Hz, Output 5V)
- Power Consumption: ≤0.5W
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 95%, no condensation
- Size: 110 x 186 x 50mm
- N.W.: 240g
Package Included:
- 1 x Optical Power Meter + 5KM Red Light Optical Multimeter
Note: Please tell us your desired Module NO. and Output Power. If power adapter is needed, please leave a message. Thank you!
