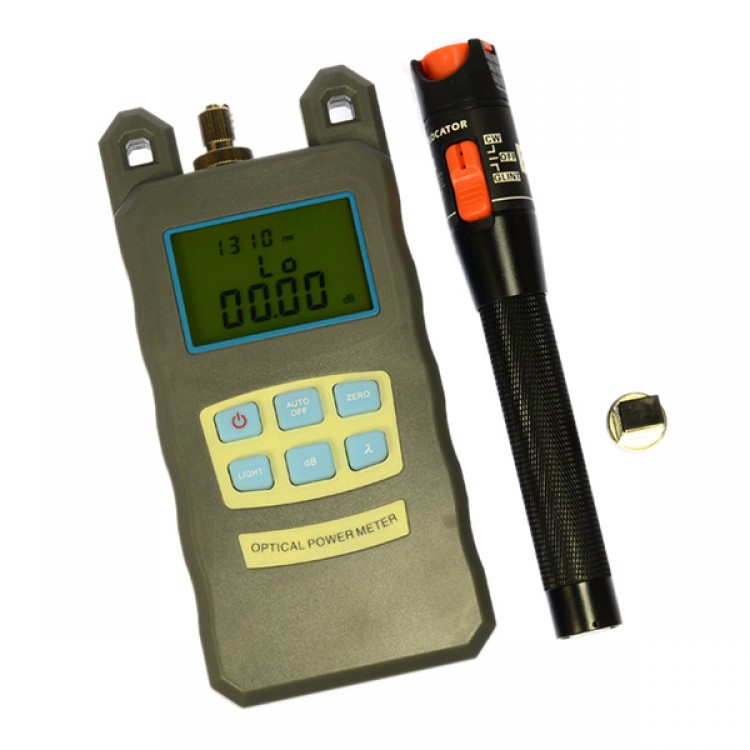

Optical Power Meter AIO Red Light Optical Fiber 10KM
Features:
New user self calibration function
Exceptional battery life
Continuous working hours of 240 hours of the use of general purpose 5.
Linear (mW) and nonlinear (dBm) metrics simultaneously show
Unique universal interface design
FC/SC/ST and other interfaces, no complex conversion
Quick response, no preheating
Optional auto off functions
Optional switch for backlight display
|
Model |
DXP-20B |
|
|
Wavelength range(nm） |
800～1600 |
|
|
Detector type |
InGaAs |
|
|
Power measure range(dBm） |
-70～+10 |
|
|
Uncertainty degree |
±5% |
|
|
Standard wavelength(nm) |
850、980、1300、1310、1490、1550 |
|
|
Display definition rate |
Linear display:0.1% logarighmic display:0.01dBm |
|
|
Operating temp ℃ |
-10～+60 |
|
|
Storage temp ℃ |
-25～+70 |
|
|
Automatic power off time (min) |
10 |
|
|
Battery continous working time(h) |
240 |
|
|
Dimension (mm) |
175×82×33 |
|
|
Power supply |
2pcs AA 1.5V battery |
|
|
Weight (g) |
310 |
|
