Optical Time Domain Reflectometer Mini OTDR with Built-in VFL For SM Fiber TM190S 1310nm & 1550nm
Description:
TM190S is a simple OTDR in the industry. It integrates powerful analysis software. It can quickly and accurately detect the location, type and loss value of fiber optic cable failure points, and can display and store the test curve data of optical fiber. The ultra-short event dead zone is more suitable for fiber-to-the-home environment use, which enables easy fiber installation and maintenance. It is widely used in engineering construction, maintenance testing and emergency repair of optical fiber communication systems; development and production testing of optical fiber cables.
Features:
- Light weight and small size make it easy to carry
- Reliable performance and good repeatability
- Easily test fiber link node length, loss value, and location of failure points
- Integrated visual fault location system, which can easily detect the location of the fiber fault in the blind zone
- 3m ultra short event dead zone
- It can identify whether there is an optical communications signal in use in the optical fiber
- Long working time, easy to replace power supply, suitable for long time field work
- FC / PC, FC / APC meters can be accurately measured
- Suitable for fault location in engineering construction and maintenance based on FTTx and access network
- Equipped with an USB charging port
- Designed with bracket and rubber protective cover to keep it well protected
Specifications:
- Model No.: TM-190S
- Dynamic Range: 12dB
- Dual Wavelengths: 1310nm & 1550nm
- Optical Fiber: 9/125 μm single-mode fiber
- Connector Adapters: FC/PC
- Pulse Width: Automatic, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 1.5μs, 2.5μs
- Event Dead Zone: ≤3m
- Attenuation Dead Zone: ≤10m
- Minimum Sampling Interval: 1m
- Ranging Accuracy: ± (1m + 2x10-4 x Distance)
- Maximum Number of Samples: 60,000 points
- Power of Red Light Source: ≥1mW
- Working Temperature: -5℃ to 40℃
- Storage Temperature: -10℃ to 60℃
- Storage: 50 curves
- Data Interface: USB
- Display: 128 * 64
- Weight: 315g

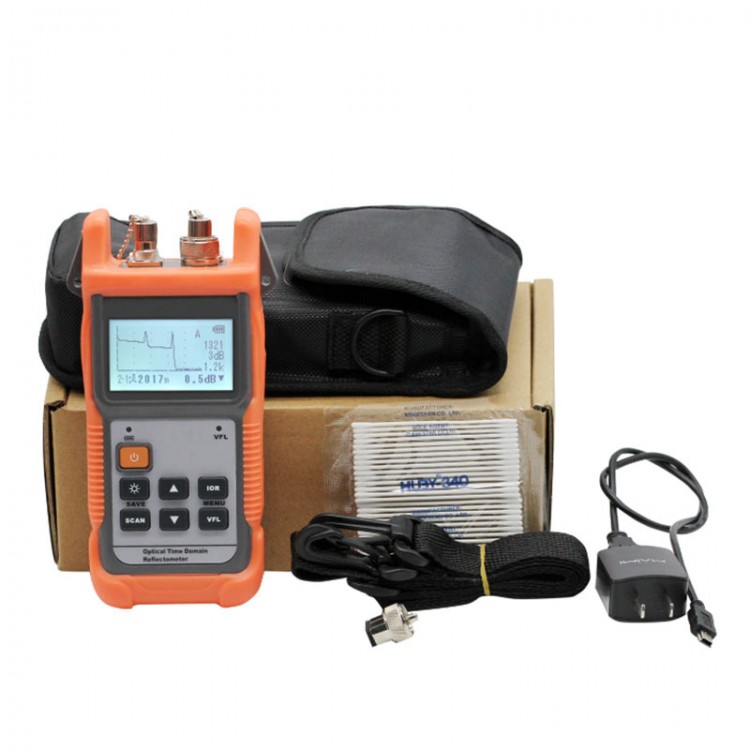

Package Included:
- 1 x OTDR
- 1 x Charger
- 1 x Shoulder Strap
- 1 x SC Adapter
- 1 x Bag of Cleaning Cotton Swabs
- 1 x Soft Bag
