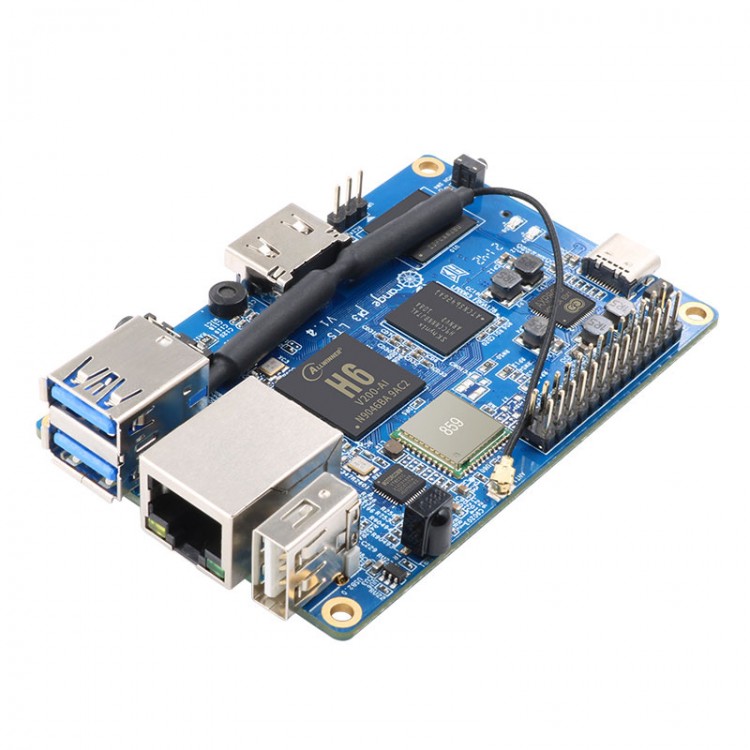

Orange Pi 3 LTS 2GB+8GB Single Board Computer Development Board for Android 9.0/Ubuntu/Debian OS

Orange Pi 3 LTS 2GB+8GB Single Board Computer Development Board for Android 9.0/Ubuntu/Debian OS

Description:
Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0. It is highly compact with a dimension of 56 x 85mm/2.2 x 3.3".

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run operating systems for Android 9, Ubuntu and Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0, etc. It is powered through Type-C. It is a good choice for applications that need strong networking performance.

Orange Pi 3 LTS is for anyone who wants to start creating with technology- not just consuming it. It is a simple, fun, useful tool that you can use to start taking control of the world around you.

Features:
- Dual-band WiFi+Bluetooth 5.0 fast networking. Orange Pi3 LTS comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
- 8GB EMMC Flash: 8GB EMMC Flash to meet users' higher demand for storage capacity.
- USB 3.0: Orange Pi 3 LTS has upgraded USB capacity: along with two USB 2 ports, you'll find one USB 3 port, which can transfer data up to ten times faster.

Hardware Specifications:
- CPU: Allwinner H6. Quad-core 64-bit 1.8GHz high-performance processor for Cortex-A53
- GPU: High-performance multi-core GPU Mali T720. OpenGL ES3.1/3.0/2.0/1.1. For Microsoft DirectX 11 FL9_3. ASTC (Adaptive Scalable Texture Compression). Floating point operation greater than 70 GFLOPS
- Power management chip: AXP805
- RAM: 2GB LPDDR3 (shared with GPU)
- Onboard Storage: Micro SD card slot. 8GB EMMC Flash
- Onboard Network: YT8531C Chip. Support 10/100M/1000M Ethernet
- Onboard WiFi+Bluetooth: 859 Chip. Support IEEE 802.11 a/b/g/n/ac. Support BT5.0
- Video Output: HDMI 2.0a. TV CVBS Output
- Audio output: HDMI Output. 3.5mm Audio Port
- Power Source: 5V 3A Type-C
- USB: 1* USB 3.0 HOST and 2* USB 2.0 HOST
- Low-level peripherals: 26pin connector with1* I2C, 1*SPI, 1*UART & Multiple GPIO Ports
- Debug serial port: UART-TX, UART-RX & GND
- Button: Power Button (SW4)
- LED: Power LED & Status LED
- IR Receiver: Support IR Remote Control
- Supported OS: For Android 9.0, Ubuntu and Debian

Appearance Specifications:
- Dimension: 56 x 85mm/2.2 x 3.3"
- Weight: 45g/0.1lb

Package Included:
- 1 x Orange Pi 3 LTS Board
