Orange Pi Zero2 (1GB RAM) Single Board Computer + Expansion Board for Android Ubuntu Debian OS
Attention:
- The development board should be powered via type-C. A type-c cable is required.
- It is recommended to use a 5V 2A or 5V 3A high-quality power adapter.

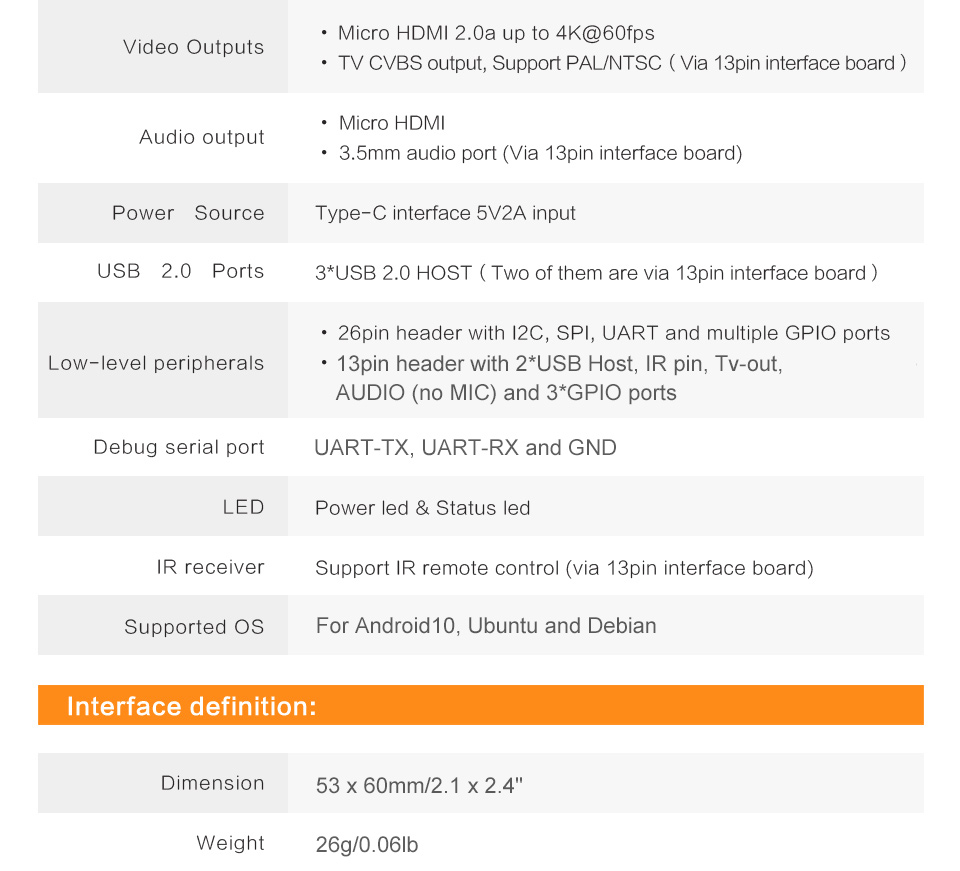

- The video output interface of the board is a Micro-HDMI interface, please use a Micro HDMI cable to connect the HDMI interface of peripheral devices.
- Only TF card (above class 10, 8GB and above) for San-Disk can be used with Orange Pi Zero2. System cannot operate normally when TF cards of other brands are used.
How to boot Zero2 Board?
- DO NOT charge power supply in the first step. (There is no lights on if without SD card image insert)
- Please ensure that your card reader is in good conditions.
- Download "Orange Pi website" for Android or Linux Image (not for Armbian!!!). And flash together with correct Office Tools into SD card. (Steps can act on user manual)
Office Tools for Android Image: Phoenixcard V 4.2.5
Office Tools for Linux Image: balenaEtcher
- All the files must download from official website (Do not download from other website, its not compatible)
http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/service-and-support/Orange-Pi-Zero-2.html
What's Orange Pi Zero2?

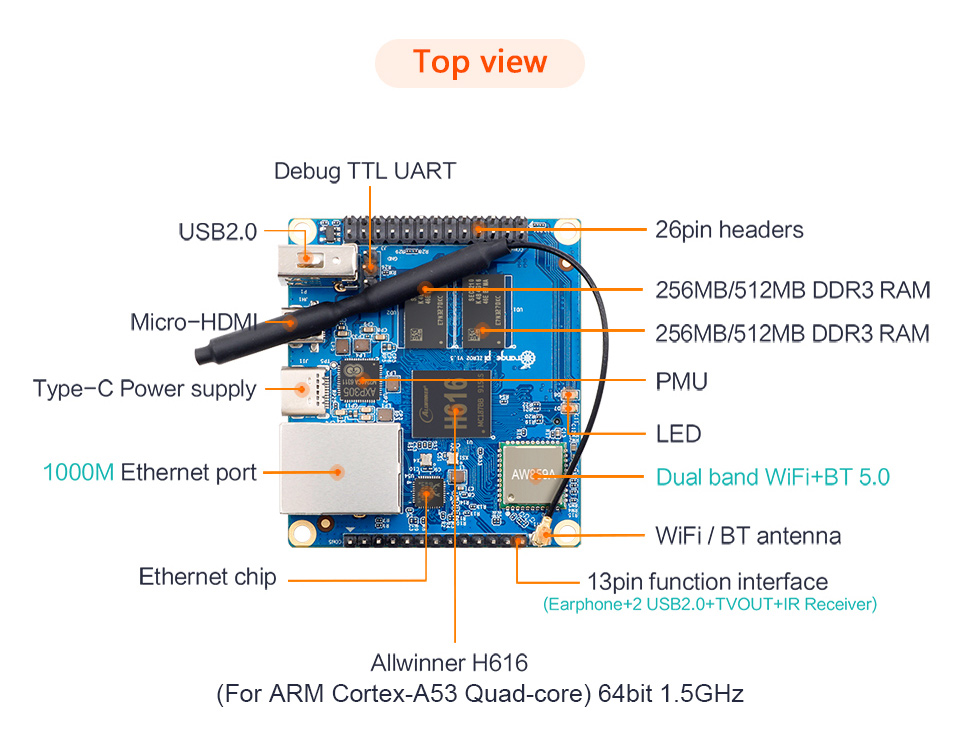

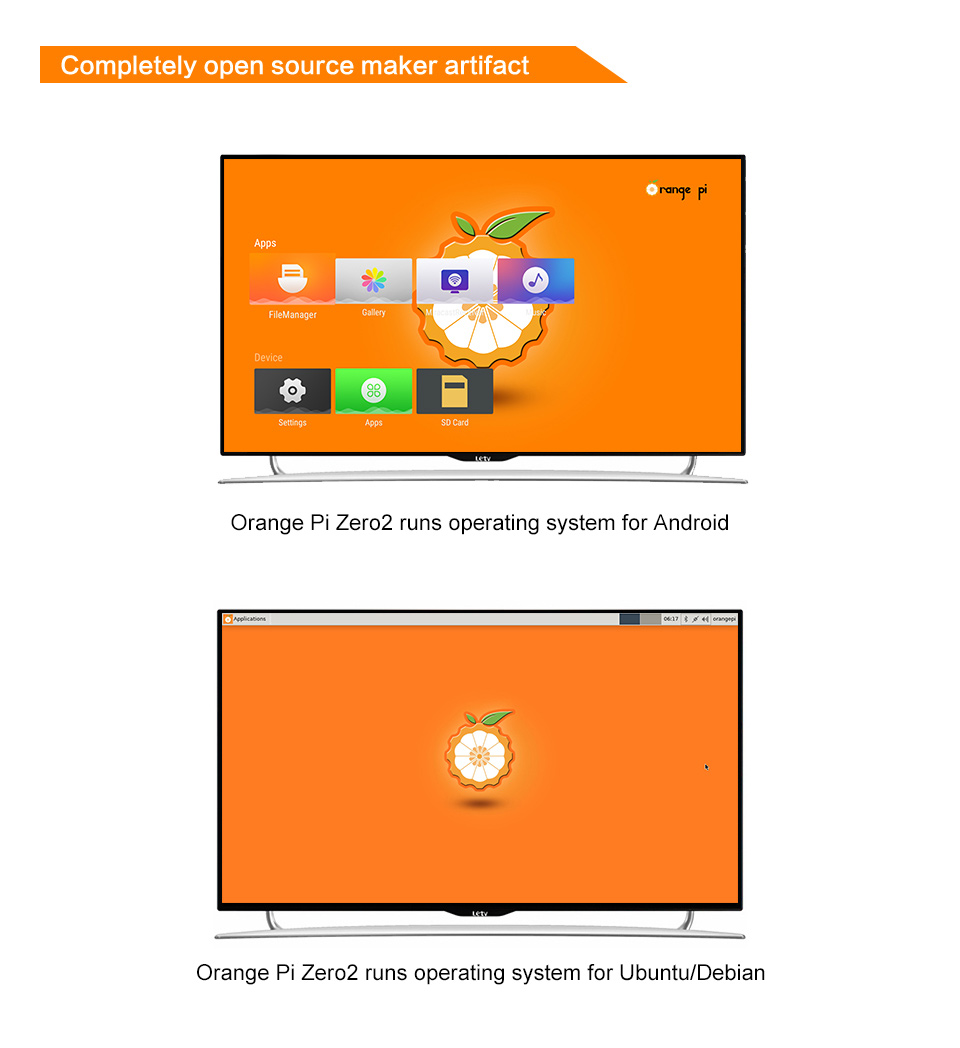

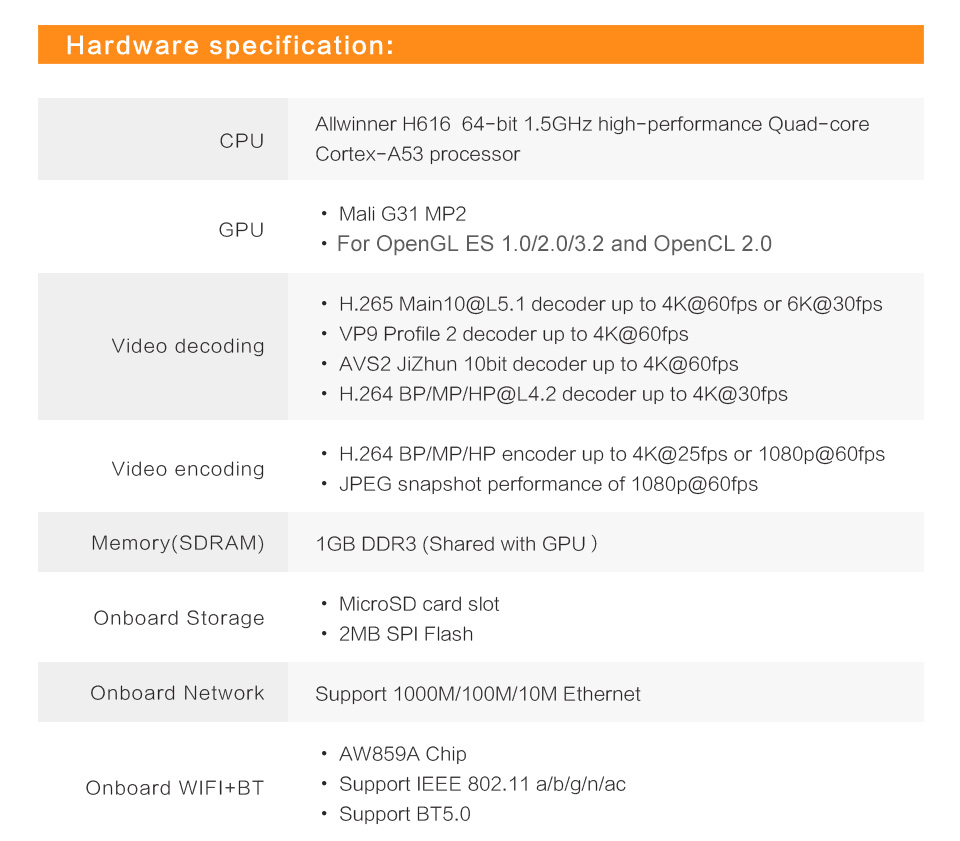

It is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0. It can run operating systems for Android10, Ubuntu and Debian. It uses the AllWinner H616 SoC, and has 1GB DDR3 SDRAM.
Package Included:
- 1 x Orange Pi Zero2 Board
- 1 x Expansion Board
