Orange5 Super Pro V1.35 V1.36 Fully Activated ECU Programming with Adapters USB Dongle for Airbag Dash Modules

Orange5 Super Pro V1.35 V1.36 Fully Activated ECU Programming with Adapters USB Dongle for Airbag Dash Modules

Description:

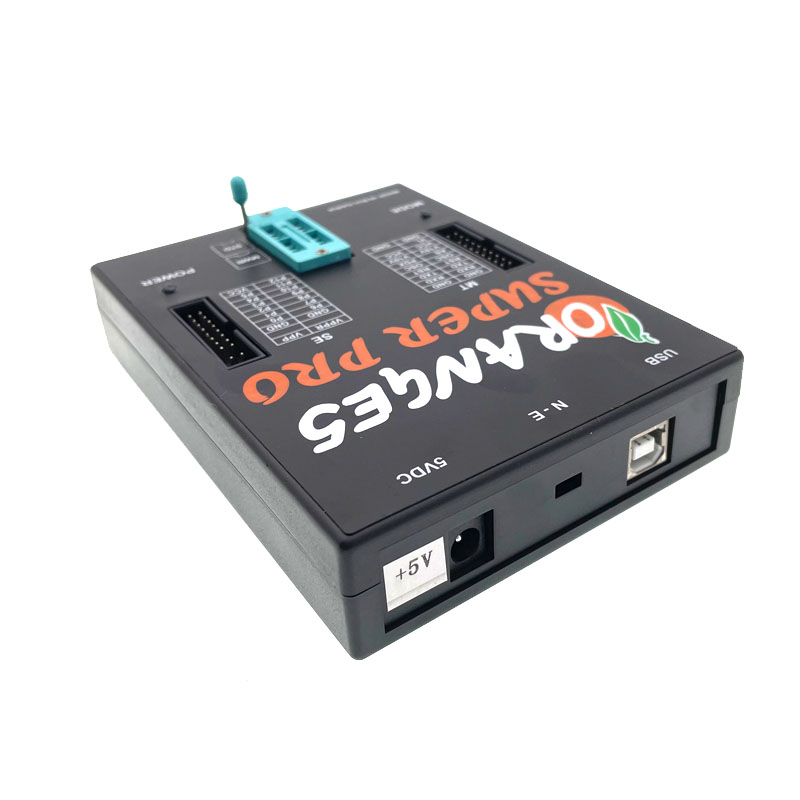

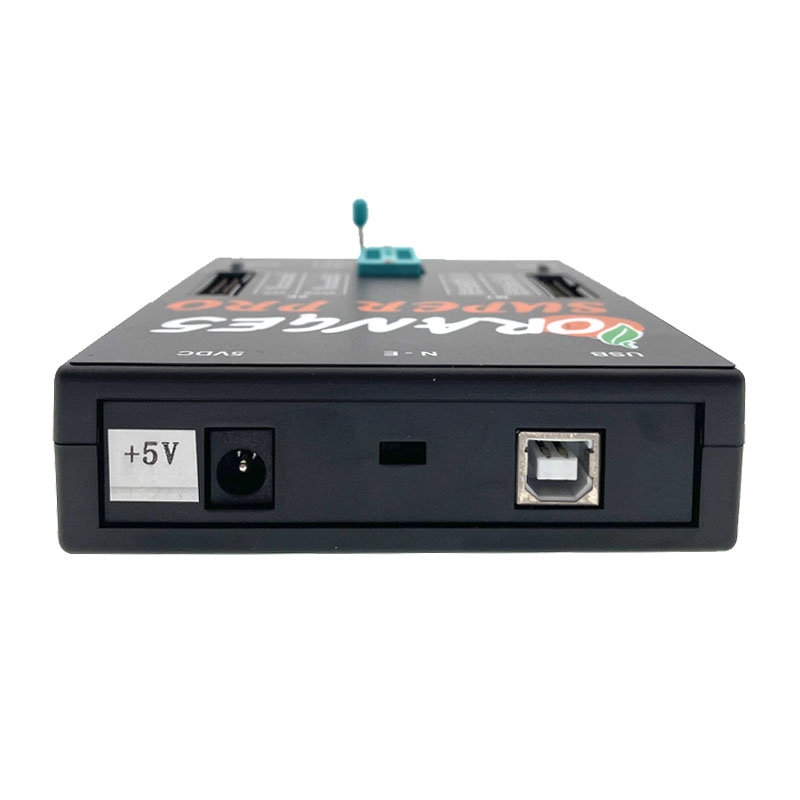

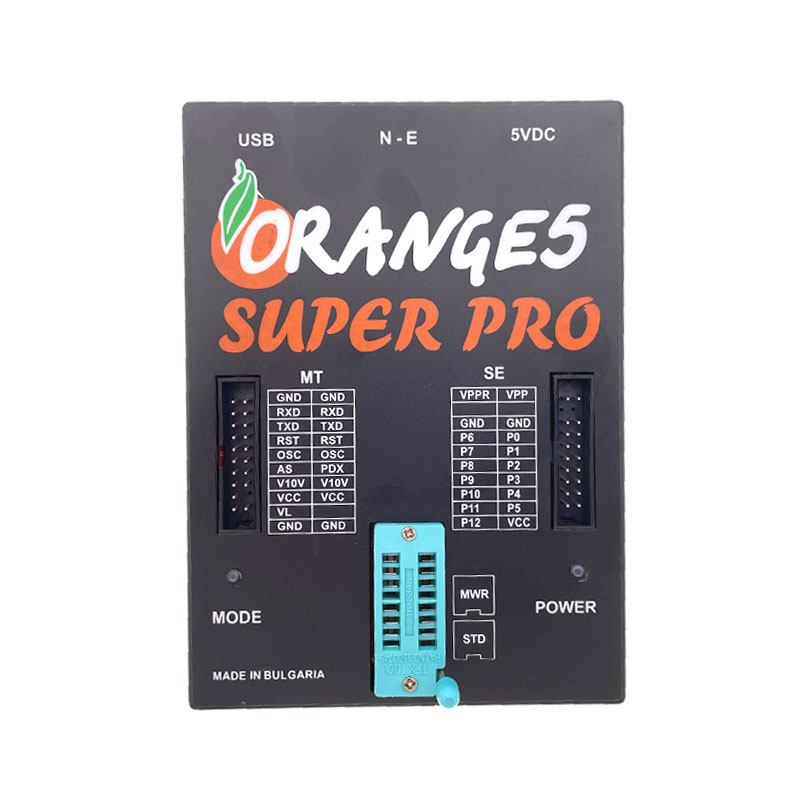

Orange5 Super Pro Programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Highlights:
1. Adds new licenses: 08-air-b-ag and 09-dashboard, A-car radio, B-air-b-ag, C- immo&pin, D-car mileage, E-motorbike mileage, F-dash tractor
2. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others

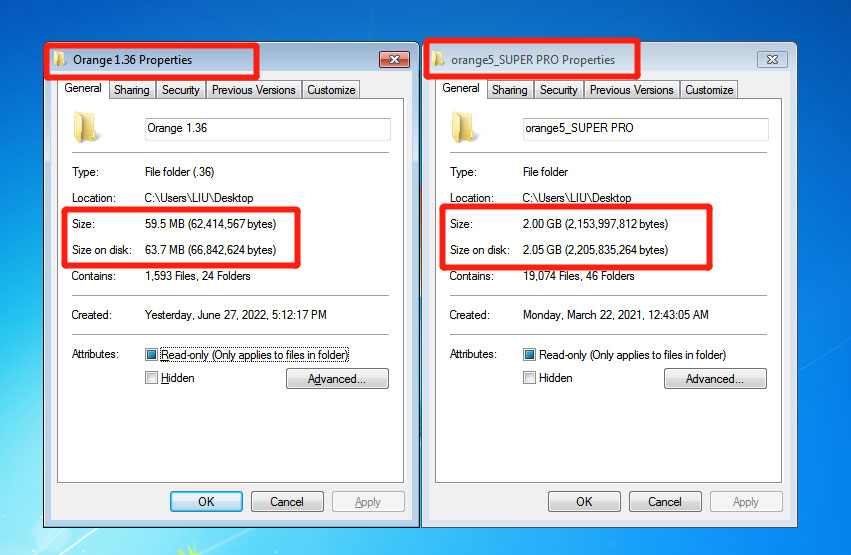

3. Send orange 5 V1.36 software as a gift. Support more scripts and Wiring diagrams, V1.36 just about 60MB while super pro is 2GB
4. Software Free Download

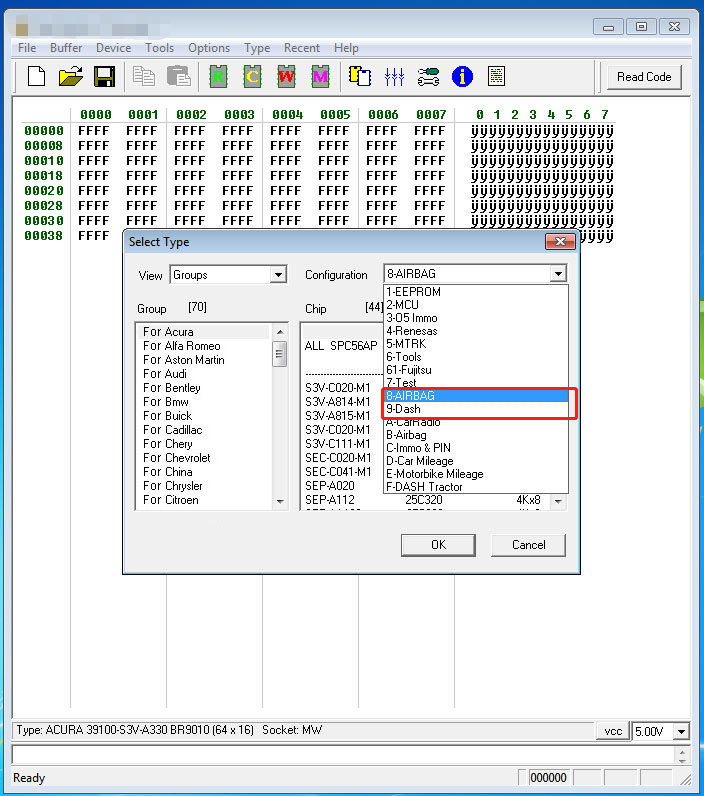

5. With USB Dongle. Dongle uses 08-air-b-ag and 09-dashboard modules.

Notice:
1. Software Version: V1.36 and orange 5 super pro v1.35 full function.
2. Language: English and Russian
3. Systems: For WIN XP/ WIN7 (32bit and 64-bit)

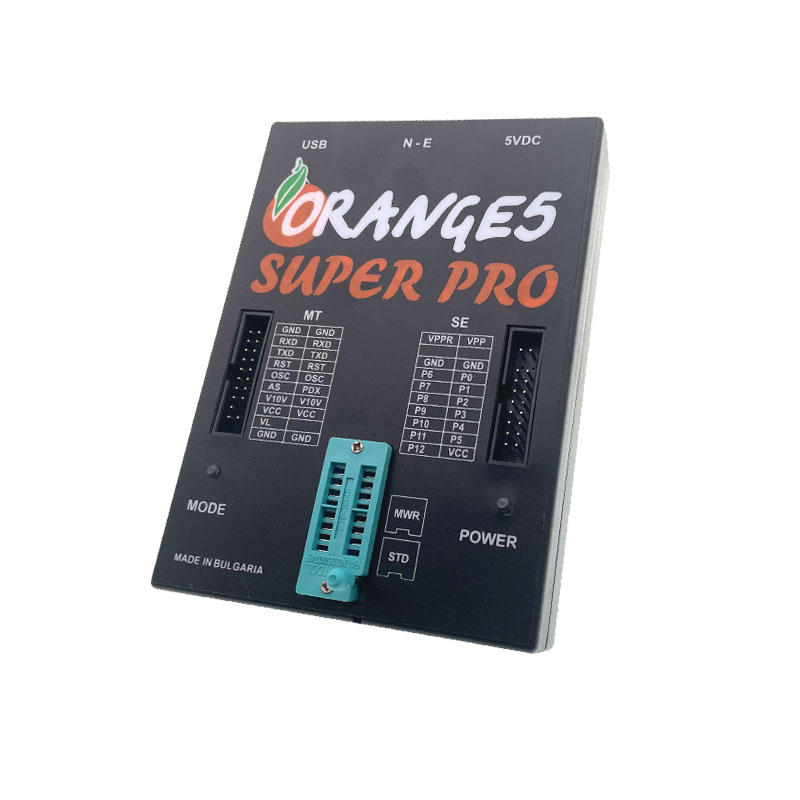

What is Orange5 Super Pro?
A professional programming device for memory and microcontrollers. A unique feature of the current series of programmers is a built-in macro language for writing down protocols, which gives the fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Software Licenses:
- MTRK (Included in Orange-5 base)
- TMS (Included in Orange-5 base)
- M08V NEW
- Immo HPX 9V0
- NEC V850ES/SJ3 V850ES/SG3 UART
- NEC V850E2 NEW

New License:
- MCU (For Infineon, ST and MicroChip)
- For Renesas: H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78
- Special_05
- AIR-B-AG
- Dash
- For Fujitsu
- F-DASH Tractor
- EEPROM
- A/B/C/D/E modules

The Differences between Orange5 Super Pro and Orange5 Plus:

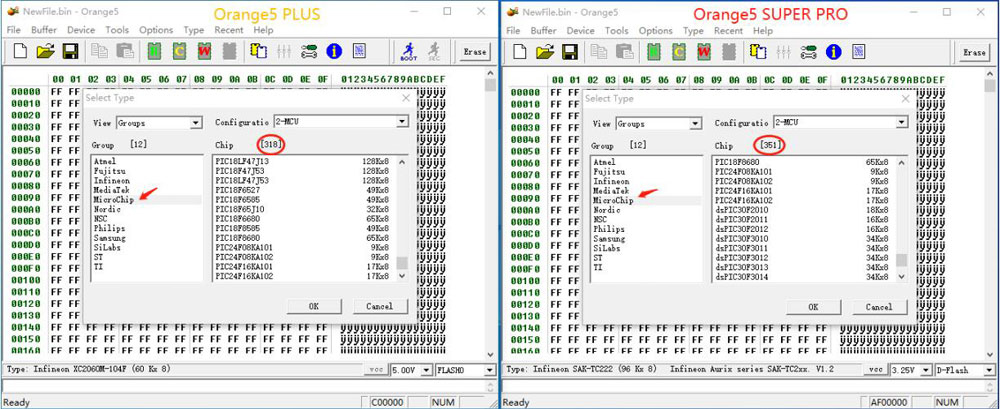

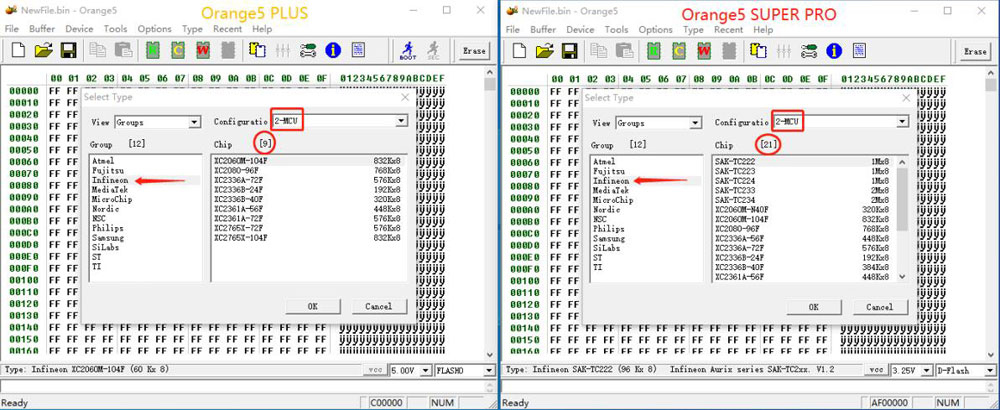

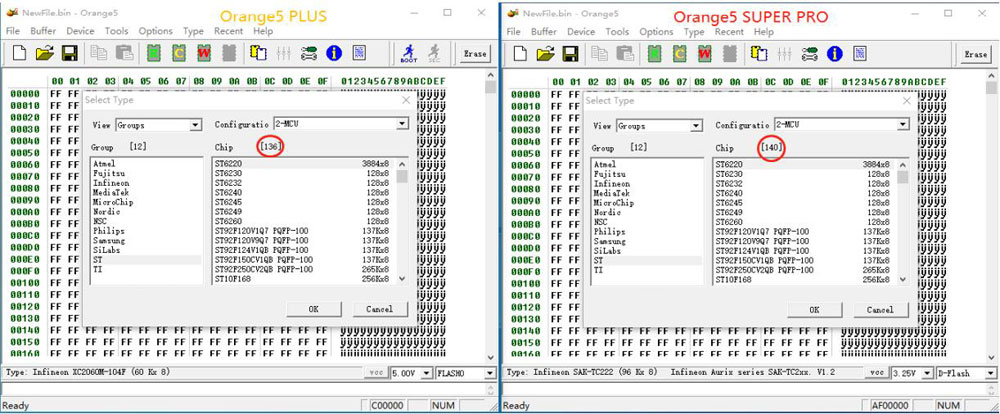

More chip models than others in chips for Infineon, ST, and MicroChip of MCU, as shown in the figure:

2-MCU, Super Pro has 11 models more than Orange5 Plus


Microchip add more 30 models:

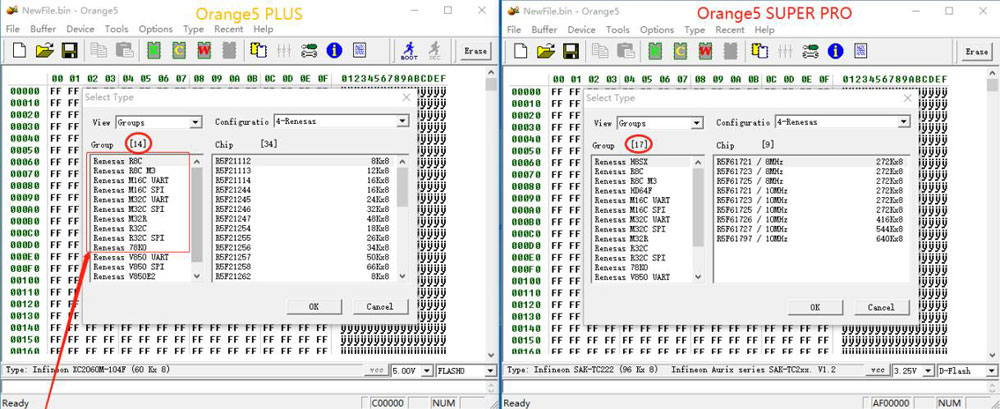

For Renesas:
More licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others

Orange5 Plus:
Although there are 14 models, only the 10 modules in the red frame can work

Orange5 Super Pro:

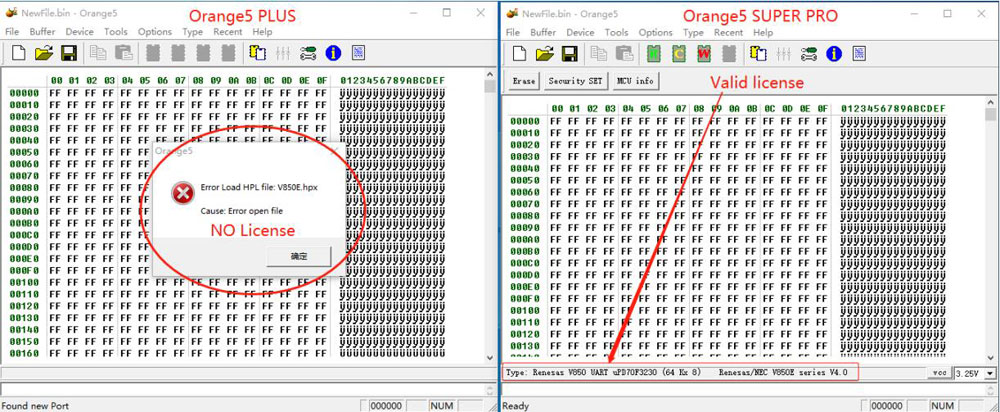

Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.

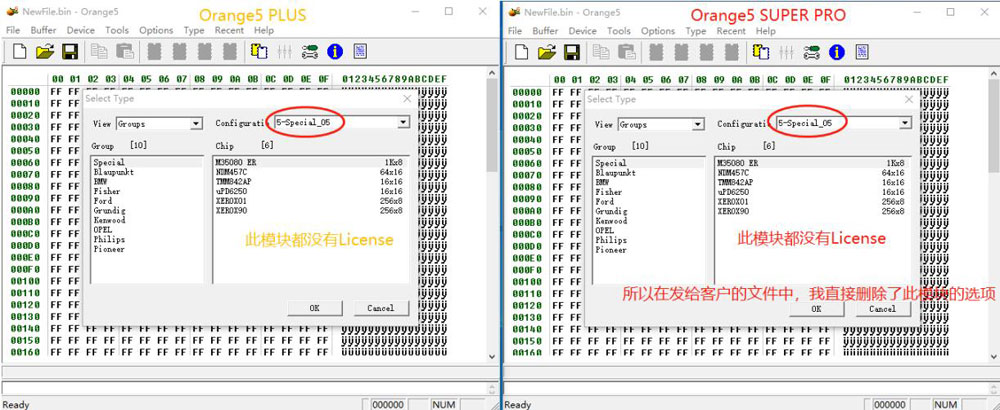

Special_05:
We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers


Our greatest advantages:

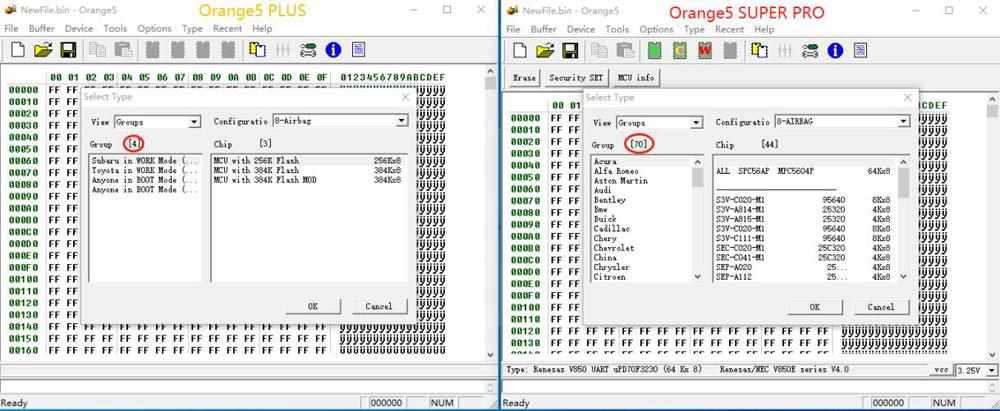

AIR-B-AG: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.)


Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams


Orange5 Technical Info:
- USB power supply (USB2.0/3.0)
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions for Orange4 and Omega MTRK
- Protection against over-current
- Overload voltage protection
- Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
- Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Wave cycle generator with frequency ( up to 24Mhz) and out voltage(2.0...5.0V) adjustment
- Capability of functional emulation of class CDC USB devices
- Built-in 32-bit virtual machine
- Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
- Programmer is enclosed in a functional box. Supported working under the systems for Windows XP/7 32bit. [*For Win8.1]
- Installation and Work with Orange-5 under the systems for Windows 7 and Windows 8.1
- CnCterm - Terminal program for work with COM ports

Features:
- Supports any COM ports, including virtual ones from 1 to 20
- Works with text (ASCII) and HEX mode
- Creating a list of commands that allows editing and fast sending
- Fine-tuning the exchange rate
- Saving files including command and port settings
- Saving incoming data in binary files
- File transfer via serial port
- Delay settings for bytes and blocks
- "Echo" mode
- Delay settings between incoming data
- Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
- The program doesn't need to be installed
- Supports Orange5 programmer in emulation mode

Orange5 Programmer Chip List:
- Immo HPX 9V0
- EEPROM: For MicroWire, 4Wire, Adesto, AKM, Altera, Amic,Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, Mitsubishi, for Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC, MCU, Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, Renesas, Samsung, SiLabs, ST, TI, Motorola, Freescale, MC68HC11, and MC68HC12

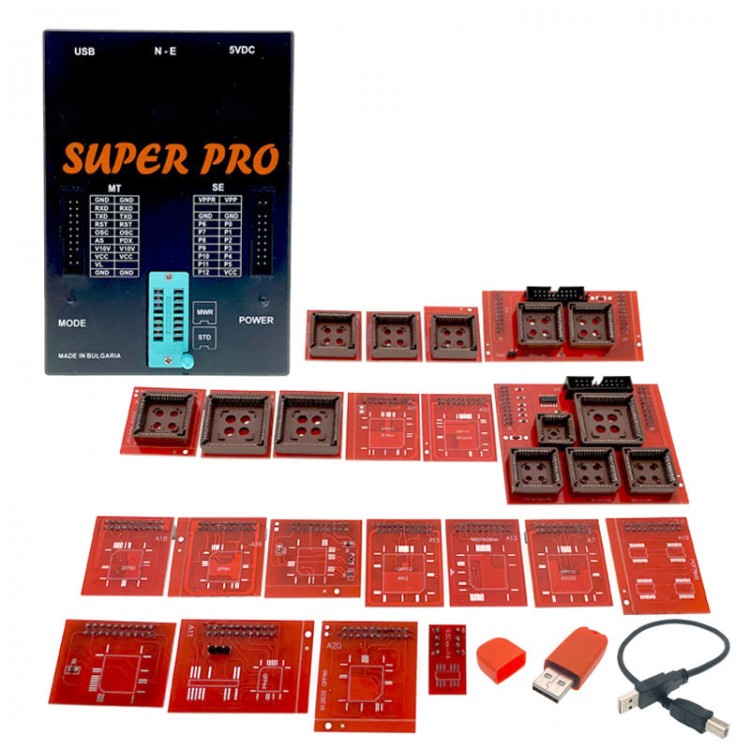

Packing List:
- 1 x Orange5 Super Pro Programmer
- 1 x TMS375C006/TMS370CX36/TMS370CX32/X42  A1
- 1 x HC05B/HC705B   A2
- 1 x Adapter 11EA9/PLCC52 A5
- 1 x Adapter 908AS60 PLCC52 A6
- 1 x Adapter QFP112/9S12XE  QFP80/9S12XE/9S12XS  A7
- 1 x HC11A/EXX PLCC52  A8
- 1 x Adapter HC11F1  A9
- 1 x Adapter 908AS60/AZ60 QFP64   A10
- 1 x 705E6/705P3/05P3 A11
- 1 x Adapter 68HC11L6 A12
- 1 x Adapter TMS374C003A A13
- 1 x Adapter 05B/X_705B/X QFP64 V2  A14
- 1 x Adapter QFP112/9S12 QFP80/9S12DXX A15
- 1 x Adapter QFP64   A16
- 1 x Adapter 68HC05H12  A17
- 1 x Adapter QFP64/QFP80 A18
- 1 x Adapter PCF7941 A19
- 1 x Adapter 912B32 QFP80 A20
- 1 x Adapter 912Dxx A21
- 1 x Adapter 9S12HZ/QFP80 1  9S12XHZ /QFP112 A22
- 1 x Adapter 93CXX-14
- 1 x USB cable
