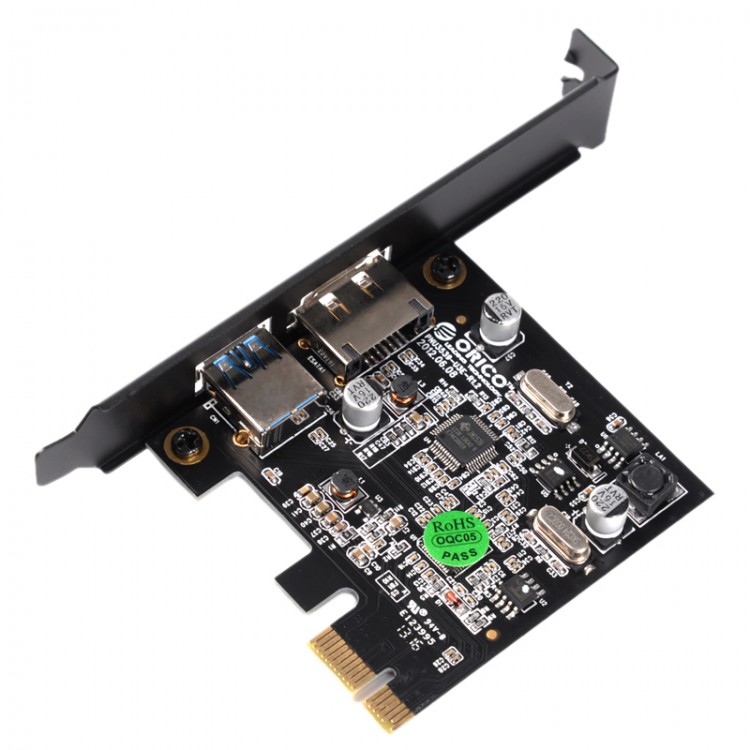

ORICO PNU3539-U3E USB3.0+eSATA Ultra High Speed PCI-E Expansion Card for Desktop Computer
Product Introduction:
- Product Name: Desktop USB3.0/eSATA Double ultra high speed composite expansion card
- Product type: ORICO PNU3539-U3E
- ORICO new development model PNU3539-U3E, The world's first desktop USB3.0+eSATA composite ultra-high speed expansion card, need motherboard with PCI-E expansion slot
- 2.5 inch USB3.0 mobile hard disk, 2T mobile hard disk has been measured by this card connected to 1000G. This card either in XP,VISTA or WIN7, 32 or 64 bit operating systems all need to install driver
Specifications:
1) Conforms to PCI-Express version 2
2) Conforms to USB3.0 Super Speed version 1
3) USB3.0 main control chip: NECChip
4) The maximum transmission rate up to 5Gbps, much higher than USB2.0 480Mb/s, up to 10 times
5) USB3.0 with eSATA support plug and play
6) eSATA port is compatible with SATAII standard, support PM function
7) eSATA port data transfer rate up to 3.0BG/s
8) eSATA port support all external interface compatible transmission standard eSATA
9) eSATA port support local command queue (NCQ), FIS switch portmultiplier based on PM function
10) USB power output: The highest 5V 2000mA (circuit optimization design, no need to add 4P electric interface)
11) Through WQHL certification, NECCertification test
12) Support WindowsXP/Vista/Win7
Package Included:
- PCI-Express USB3.0+eSATA extension card *1
- User manual *1
- Driver CD *1
- Mounting screws *2
