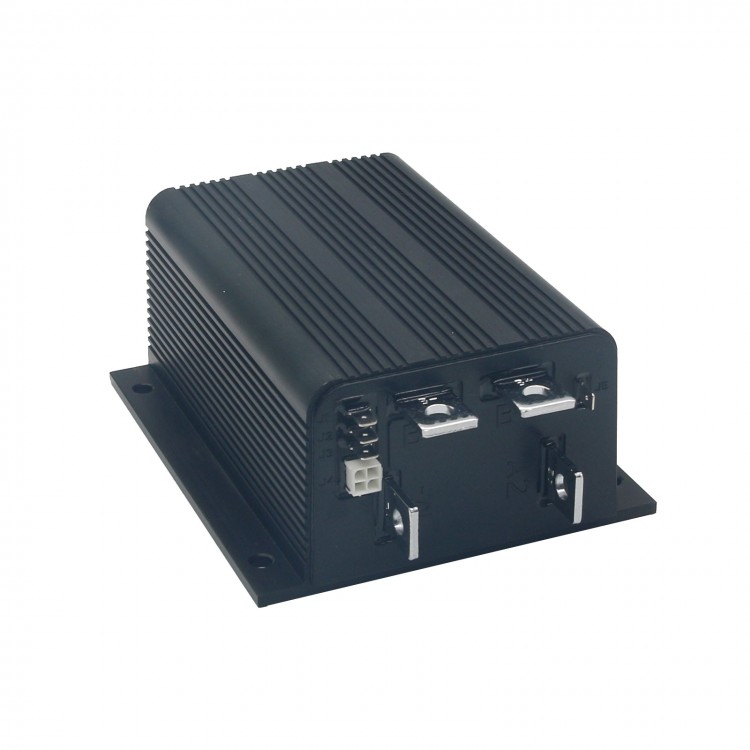

Original 1204M-4201 24-36V 275A DC Motor Controller for Curtis Electric Vehicle Applications

Original 1204M-4201 24-36V 275A DC Motor Controller for Curtis Electric Vehicle Applications

Overview:
1204M series motor controllers are the form/fit/function replacement of the earlier 1204 controllers, with the added functionality of being programmable—via a handheld programmer for Curtis or PC programming station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

The controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, light on-road vehicles, golf cars, etc.

The 1204M models offer superior operator control of motor drive performance.

Features:
- Universal logic board supports multiple throttle types and high pedal disable (HPD) options.
- Environmental protection provided by rugged anodized aluminum extruded housing.
- Simple mounting and wiring with push-on connectors for control signals.
- Plated solid copper buses used for all power connections.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal  conditions.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- HPD feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Under-voltage cutback function protects against low voltage, including low voltage caused by external loads.
- Easily programmable through the handheld programmer for Curtis or PC programming station.

Package Included:
- 1 x Motor Controller

Note:
- Battery is not included.

Packaging Details:
- G.W.: 3kg
