Original CSL Universal Hub V2 Racing Steering Wheel Hub Gaming Racing Simulator Part for FANATEC

Original CSL Universal Hub V2 Racing Steering Wheel Hub Gaming Racing Simulator Part for FANATEC

Description:
Performance and value

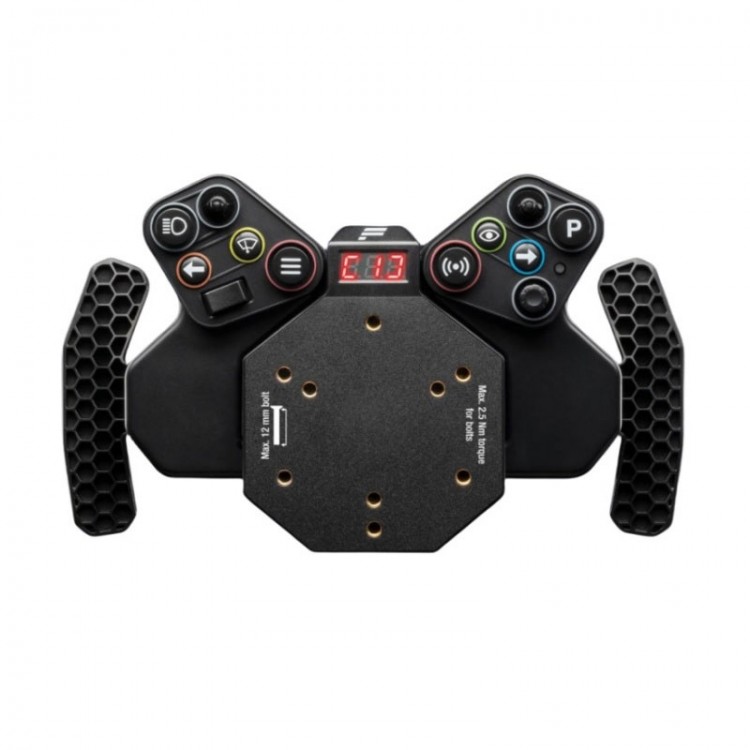

The CSL Universal Hub V2 supports a wide variety of wheel rims, combining many of the advanced features of the ClubSport Universal Hub at a lower price.

Easy width adjustment
An innovative slider mechanism allows effortless positioning of the button islands and shifter paddles to suit different wheel sizes. Stepless slider for precise adjustment.

Attach any rim you want
Threaded holes for wheel rims with a 3 x 50 mm or 6 x 70 mm pattern mean that all current original wheel rims for Fanatec can be attached to the CSL Universal Hub V2. It is also compatible with many wheel rims from brands such as for MOMO, Sparco or OMP.

Packed with features and refinements
The integrated button islands, display, and shifters work neatly with many wheel rim combinations. The V2 has additional metal bracing to improve rigidity up to 23%, and the shifter paddle design has been revised.

Plenty of inputs
Alongside eight standard buttons with snap-dome activation, the integrated button islands also feature a 2-way rocker switch, two 2-way toggle switches, and a 7-way device for FunkySwitch with rotary encoder functionality.

Ergonomic shifter paddles
Reinforced with a honeycomb structure, the paddles are shaped to fit most wheel rims. They have a revised shape for improved comfort, and a new spring mechanism. The width of the paddle positions is adjusted together with the button islands as part of the slider system.

Tuning Menu access
You can access the Tuning Menu for FANATEC with just the press of a button. Adjust your wheel base force feedback and other hardware settings while you drive.

Supports for Tuning with the FunkySwitch
The 7-way device for FunkySwitch is a multi-purpose input device, with d-pad, push-button, and rotary encoder. Press the Tuning Button to bring up the Tuning Menu on the integrated display and adjust settings with the device for FunkySwitch.

Tool-free Simplified Quick Release
The QR1 Lite Wheel-Side clamps easily to the steering shaft by hand, without the need for tools. Alternatively, you can select the metal QR1 Wheel-Side (sold separately), which unlocks High Torque Mode on Podium wheel bases. It can also be upgraded easily to the next-generation QR2 system (coming soon).

Features:
- Innovative expanding design allows the hub to adjust to many sizes of wheel rim
- Lightweight, step-less slider mechanism expands by 60 mm
- Shifter paddle width adjustable from 214 mm to 274 mm (at widest point)
- Metal bracing improves rigidity up to 23% compared to V1
- Ergonomic shifter paddles
- Integrated button islands (non-removable)
- Eight standard buttons with snap-dome activation
- 2-way rocker switch
- Two 2-way toggle switches
- Tuning Menu button for instant access to force feedback and other original hardware adjustments for Fanatec
- Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software
- 7-way device for FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Exchangeable quick release (selected before checkout)
- Ready for next-generation QR2 system
- Low weight of 660g (with QR1 Lite Wheel-Side, not including wheel rim) for fast acceleration and fidelity
- DataPort-C connector ready for future upgrades
- Can be used with all original wheel rims for Fanatec and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. for Sparco, MOMO and OMP)
- Allows the use of third-party steering wheels with USB cables on all compatible bases for Fanatec (direct USB connectivity is not possible)

Compatibility:
1. Wheel Bases:
- PODIUM Wheel Base DD1 (QR1 Wheel-Side required*)
- PODIUM Wheel Base DD2 (QR1 Wheel-Side required *)
- For PODIUM Wheel Base DD1 PS4 (QR1 Wheel-Side required*)
- ClubSport DD Wheel Base
- ClubSport DD+ Wheel Base
- ClubSport Wheel Base V2
- ClubSport Wheel Base V2.5
- CSL Elite Wheel Base
- CSL Elite Wheel Base V1.1
- CSL Elite Wheel Base + - officially licensed for PS4
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base

Attention:
- It is possible to use High Torque Mode when using a metal quick release (QR1 Wheel-Side).
- This product is NOT compatible with the Podium Button Module Endurance.

2. Platforms:
- PC: this product is compatible with Windows PC.
- For Xbox: this product is not compatible with systems for Xbox.
- For PlayStation: The functionality of this product on the platform for PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. For PlayStation 5: Check our platform compatibility page for more details.

Special Notes:
- To operate this product, a compatible Wheel Base for Fanatec (not included) is mandatory.
- Buttons and paddle shifters are not easily reached with larger, dished wheel rims. For example, the ClubSport Wheel Rim GT (320 mm, no dish) works well, but the Podium Wheel Rim for NASCAR (350 mm, dished) does not.
- DataPort-C connector is not compatible with USB devices.
- It is possible to use full torque on a CSL DD or Gran Turismo DD Pro with Boost Kit 180, even with the QR1 Lite Wheel-Side quick release.
- High Torque Mode on Podium Wheel Bases is only available when using a metal quick release.

Package Included:
- 1 x CSL Universal Hub V2
- 1 x Wheel-side quick release (selected before checkout, packaged separately)
- 1 x Allen screwdriver (3 mm)
- 1 x Wrench (8 mm)
- 1 x Quick Guide

Packaging Details:
- Dimensions (L x W x H): 27.9cm x 19.3cm x 18.1cm
- Volume weight: 1.14kg
- G.W.: 1.55kg
