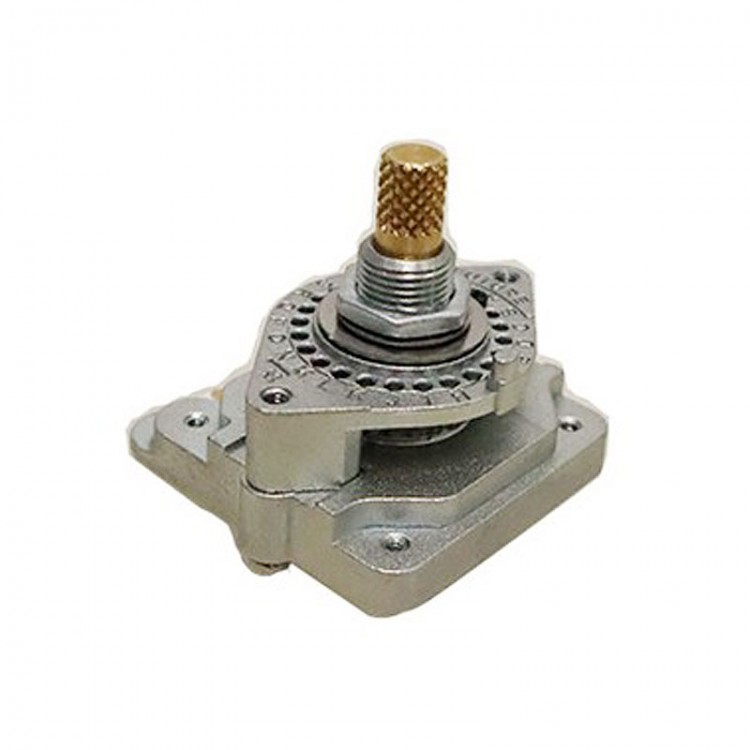

Original Digital Code Rotary Switch Band Switch For NDS Series NDS-01J 02J 03J 01N 02N 03N 04N

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.16
  • Price in reward points: 192 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.78 $18.39 $17.82 $17.05 Contact US
Quantity:

Original Digital Code Rotary Switch Band Switch For NDS Series NDS-01J 02J 03J 01N 02N 03N 04N

Description:

The series of rotary switch can apply to multi switching function on the operation panel of machine tool, such as axis selection, feedrate and override etc.

Selecting digital coded switches in PLC applications can save a lot of I/O points.

Features:
- Easy to install
- Sturdy shaft, non-slip design
- The number of switch segments can be set by screws
- Metal material, sturdy and durable; the number of segments is clearly marked
- Provide 15°, 30°, 13.85° band angle for selection

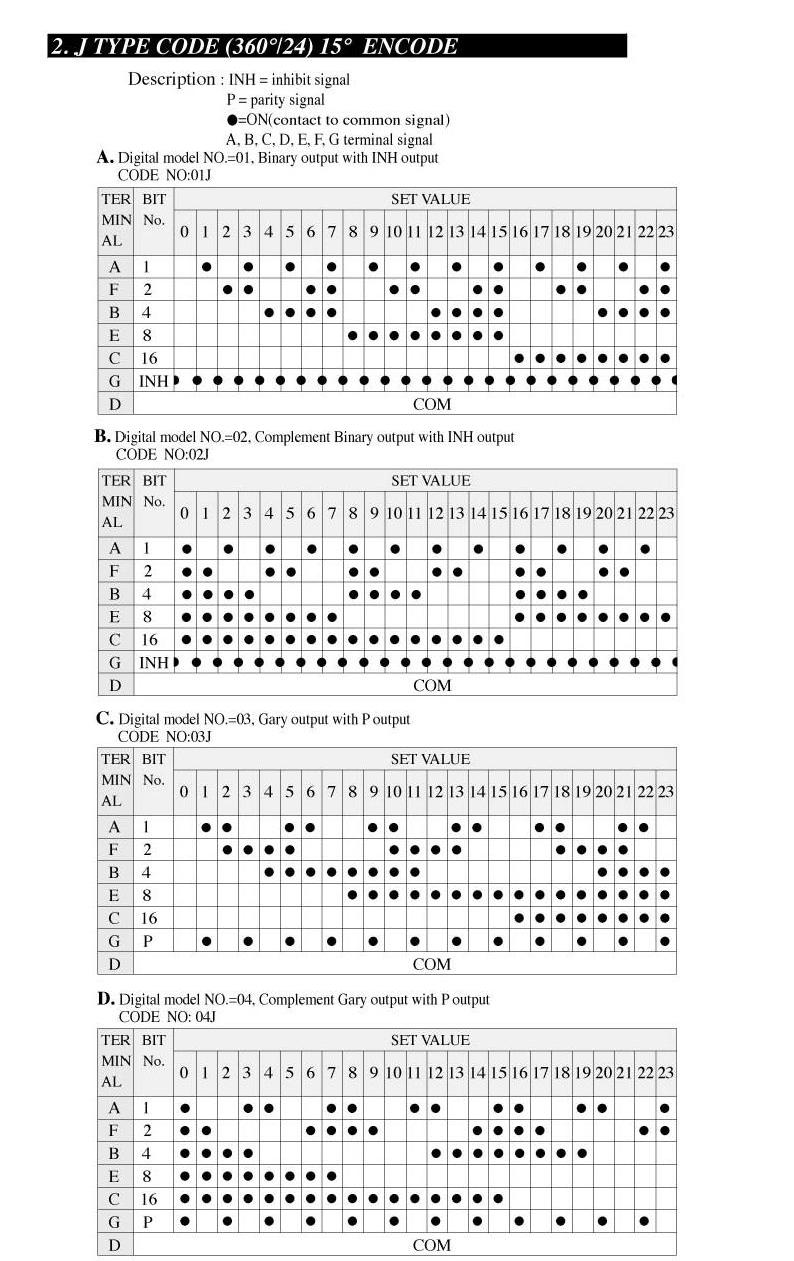

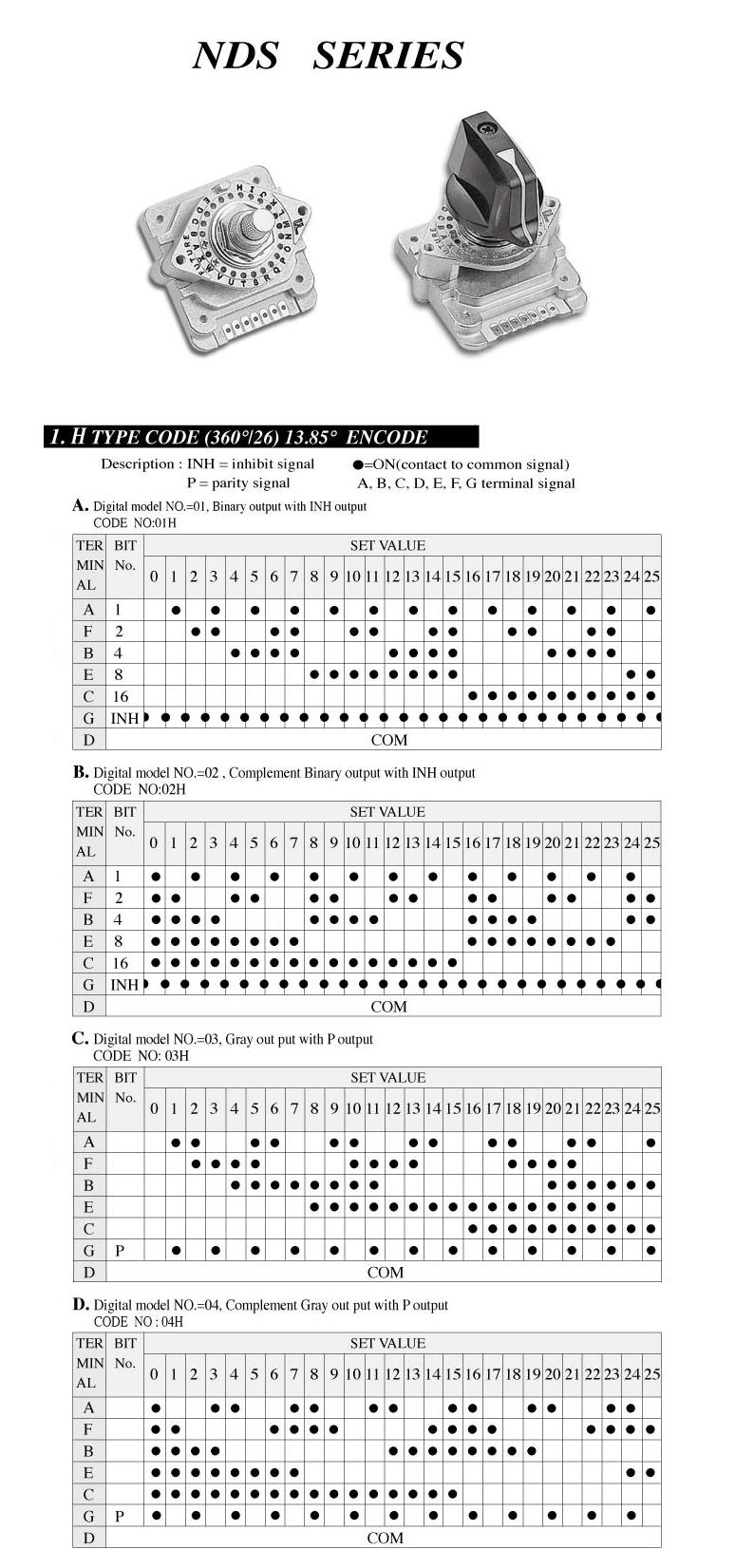

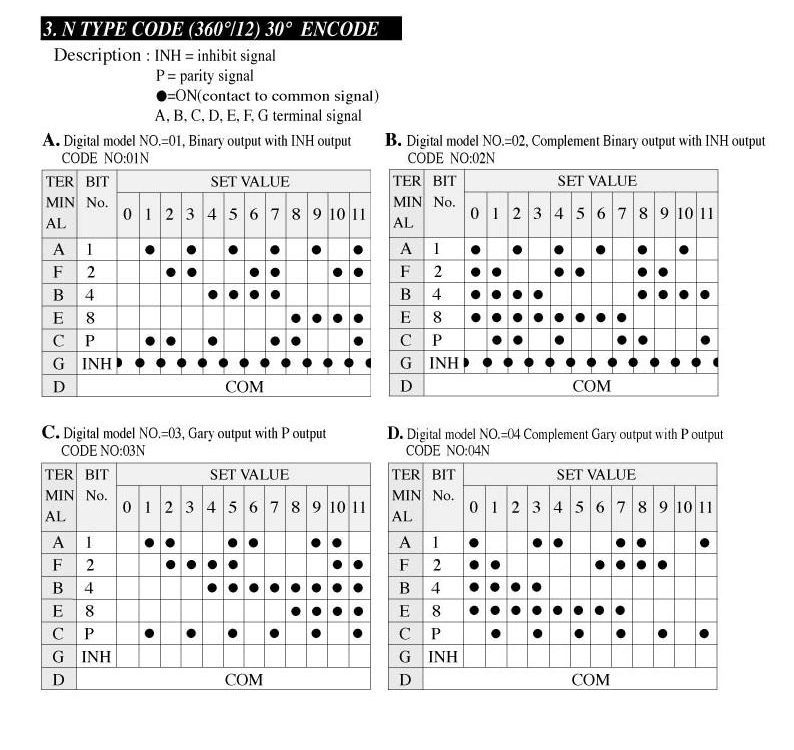

- Provide a variety of coding styles to choose from: binary, two's complement, Gray code and Gray's complement
- Including signal prohibition or parity signal to avoid misoperation
- Gold-plated double contacts to maintain high stability and product performance
- The main body is equipped with an O-ring seal, and the front and the code body adopt a closed waterproof and oil-proof design
- Saving wiring and CNC input points, optional output with socket

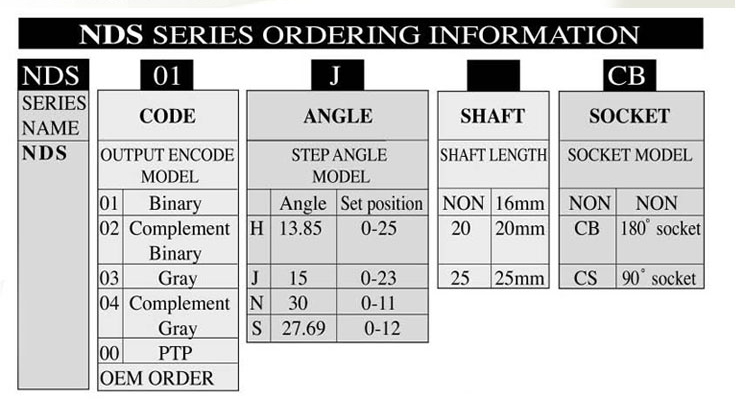

Optional Types:
* NDS-01J
* NDS-02J
* NDS-03J
* NDS-01N
* NDS-02N
* NDS-03N
* NDS-04N

Package Included:
- 1 x Set of Band Switch

Note:
- There are various types for option. Please choose the one you want when purchasing. Thank you!
