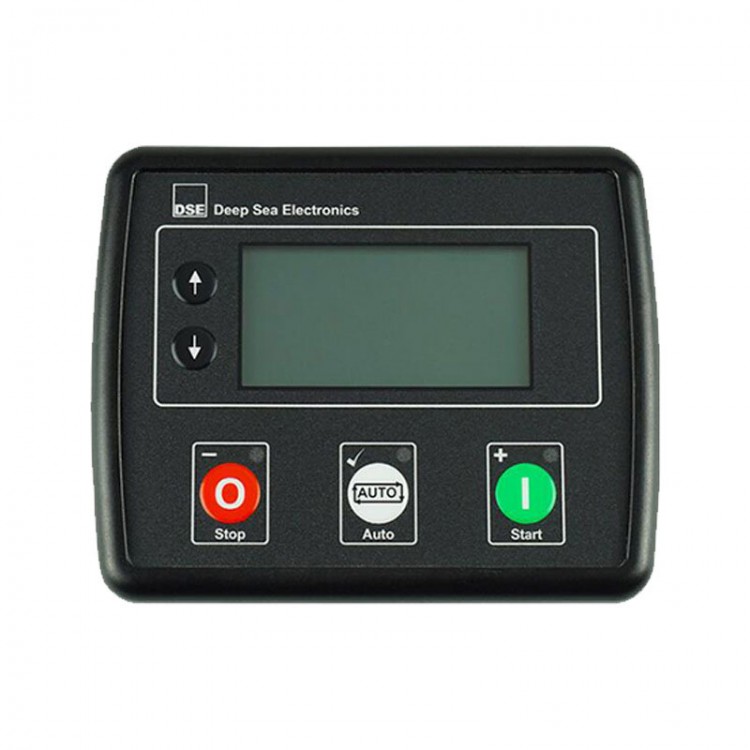

Original DSE4520 MKII AMF Control Panel Automatic Mains (Utility) Failure Control Module

Description:

DSE4520 MKII is an Automatic Mains (Utility) Failure Control Module, which is suitable for a variety of stand-alone applications. It is a compact but powerful controller that provides complete monitoring and protection for gensets.

The LCD display of the controller can display general alarm, electrical trip and shutdown and other alarm information, and can monitor the engine speed, oil pressure, water temperature, oil level and the frequency, voltage, current and power of the generator, providing a complete engine and generator protection.

The DSE4520 MKII supports EFI and non-EFI engines for diesel, gas and gasoline (generator frequency detection). With multiple flexible input, output and protection functions, it is suitable for a variety of application requirements. Users can set parameters through DSE software, and can also edit parameters on its front panel.

Functions:
- Configurable for use as an AMF or Automatic Start Control Module
- Support J1939-75 and shield CAN alarm
- Generator frequency and CAN detection speed
- Largest backlit graphic display in its class
- Optional low temperature version
- Real time clock
- All parameters can be set via front panel or PC
- Power saving mode
- 3-phase generator detection
- 3-phase mains detection
- Support 600V line voltage (L-L) system
- Unit/load power monitoring (kW, kVA, kVAr, pf)
- Cumulative power monitoring (kWh, kVA h, kVAr h)
- Overload protection
- Unit/load current detection and protection
- Fuel and start output (customizable when connected to EFI)
- 4 custom DC outputs
- 3 custom analog/digital inputs
- 4 custom digital inputs
- Custom graded load output
- 3 engine maintenance tips
- Engine speed protection
- Engine runtime timer
- Engine warm up
- Preset engine start and stop cycles
- Engine start idle and stop idle control
- Tier 4 standard engine instrument interface
- Battery voltage monitoring
- Start the unit when the battery voltage is low
- Custom remote start input
- 2 sets of protection parameters
- Complete alarm, electrical trip and shutdown protection
- LCD alarm indication
- 50 event records

Advantages:
- Small size and powerful function
- Automatic switch between mains and unit
- Real Time Clock Provides Accurate Event Recording
- Button layout is reasonable, easy to operate
- Parameter setting using DSE setup software
- Compatible with a variety of EFI engines, including Tier 4
- Free PC Software
- IP65 grade (need to add gasket) good waterproof performance

Package Included:

- 1 x AMF Controller

Note:
- Battery is not included.
