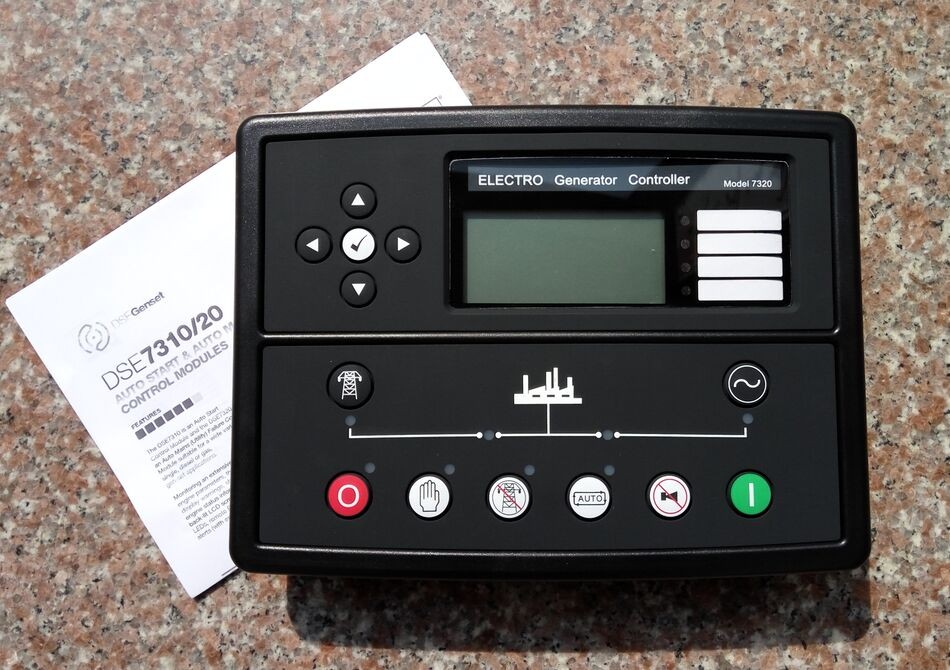

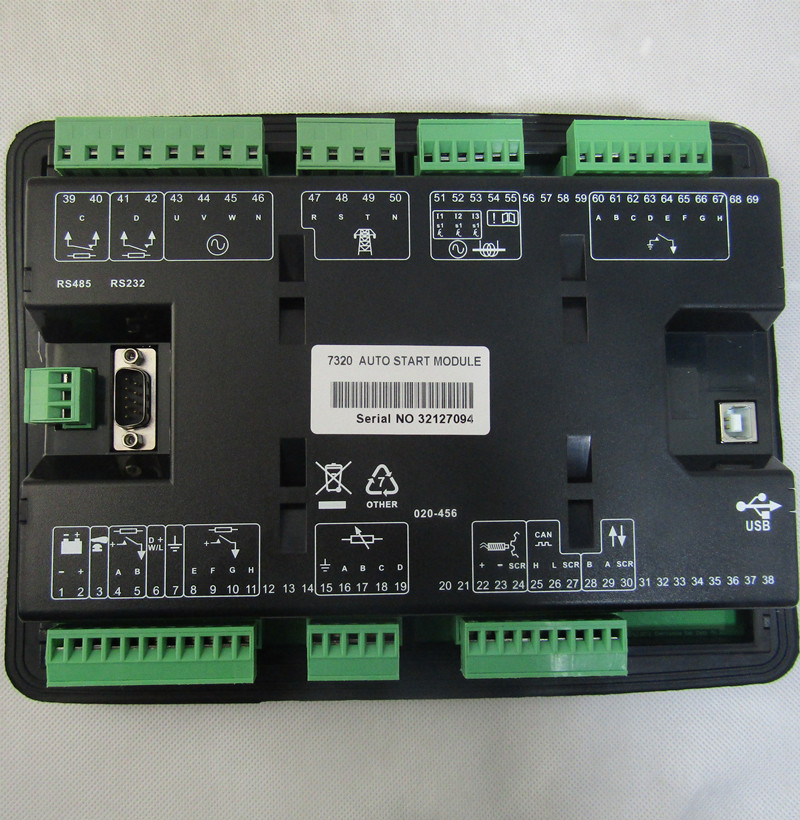

Original DSE7320 Deep Sea Electronics Controller Failure Control Module Panel
Product Introduction:
- The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
- Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).
- The DSE7320 will monitor the mains (utility) supply and includes USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.
- The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.
- The module has an extensive list of features including enhanced event and performance monitoring and remote communications
- The module can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
Key Features:
- Reactive power protection
- 4-Line back-lit LCD text display
- Five key menu navigation
- Front panel editing with PIN protection
- Customisable status screens
- Power save mode
- Support for up to three remote display units
- 9 configurable inputs
- 8 configurable outputs
- Flexible sender inputs
- Configurable timers and alarms
- 3 configurable maintenance alarms
- Multiple date and time scheduler
- Configurable event log (250)
- Control logic facilities
- Easy access diagnostic page
- CAN and Magnetic Pick-up/Alt. sensing
- Fuel usage monitor and low fuel alarms
- Charge alternator failure alarm
- Manual speed control (on compatible CAN engines)
- Manual fuel pump control
- Engine exerciser
- “Protections disabled” feature
- KW & kV Ar overload protection
- Reverse power (kW & kV Ar) protection
- LED and LCD alarm indication
- Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
- Load switching (load shedding and dummy load outputs)
- Automatic load transfer
- Unbalanced load protection
- Independent Earth Fault trip
- USB connectivity
- Backed up real time clock
- Fully configurable via DSE Configuration Suite PC software
- Configurable display languages
- Remote SCADA monitoring via DSE Configuration Suite PC software
- User selectable RS232 and RS485 communications
- Configurable Gencomm pages
- Advanced SMS messaging (additional external modem required)
- Start & stop capability via SMS messaging
- Additional display screens to help with modem diagnostics
- DSENet® expansion compatible
- Integral PLC editor
Specification:
- DC Supply: Continuous Voltage Rating :8 V to 35 V Continuous
- CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
- MAXIMUM OPERATING CURRENT:340 mA at 12 V, 160 mA at 24 V
- MAXIMUM STANDBY CURRENT:160 mA at 12 V, 80 mA at 24 V
- CHARGE FAIL/EXCITATION RANGE:0 V to 35 V
- MAINS (UTILITY)
- VOLTAGE RANGE:15 V - 333 V AC (L-N)
- FREQUENCY RANGE:3.5 Hz to 75 Hz
- OUTPUT A (FUEL):15 A DC at supply voltage
- OUTPUT B (START):15 A DC at supply voltage
- OUTPUTS C & D:8 A 250 V (Volt free)
- AUXILIARY OUTPUTS E,F,G,H: 2 A DC at supply voltage
- GENERATOR: VOLTAGE RANGE:15 V - 333 V AC (L-N)
- FREQUENCY RANGE:3.5 Hz to 75 Hz
- MAGNETIC PICK-UP:VOLTAGE RANGE:+/- 0.5 V to 70 V
- FREQUENCY RANGE:10,000 Hz (max)
- DIMENSIONS OVERALL:240 mm x 181 mm x 42 mm;9.4” x 7.1” x 1.6”
- PANEL CUT-OUT:220 mm x 160 mm;8.7” x 6.3”
- MAXIMUM PANEL THICKNESS: 8 mm 0.3”
Key Benefits:
- 132 x 64 pixel ratio display for clarity
- Real-time clock provides accurate event logging
- Multiple date and time scheduler
- Set maintenance periods can be configured to maintain optimum engine performance
- Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
- Modules can be integrated into building management systems (BMS)
- Increased input and output expansion capability via DSENet®
- Licence-free PC software
- IP65 rating (with supplied gasket) offers increased resistance to water ingress
- PLC editor allows user configurable functions to meet specific application requirements
Package List:

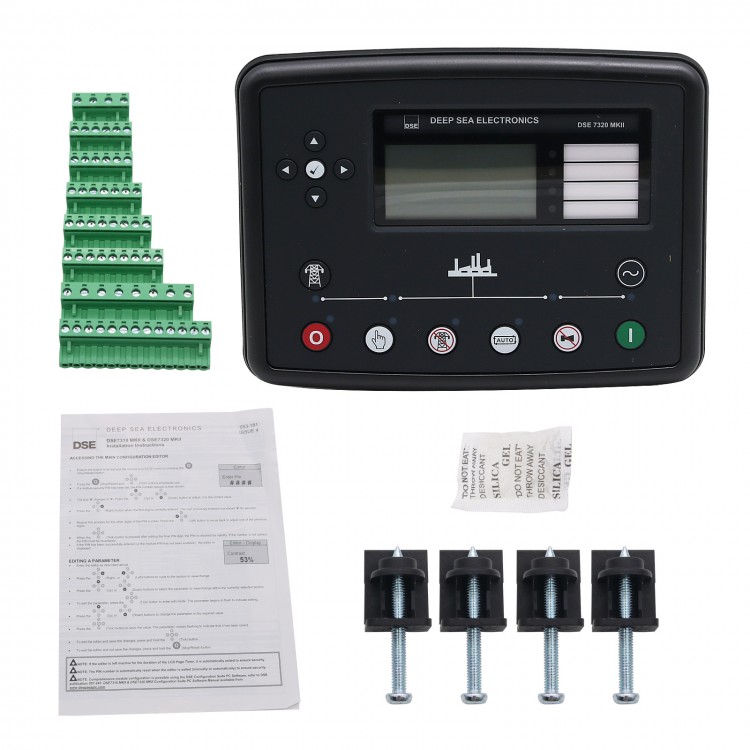

- 1 x Original DSE7320 Generator Controller Genset Panel
