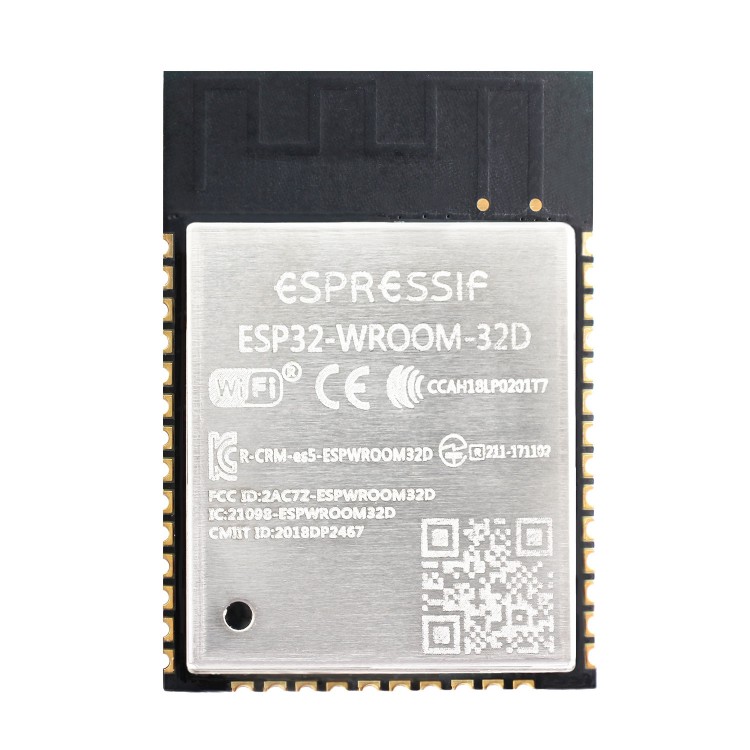

Original ESP32-WROOM-32D 2.4GHz WiFi + Bluetooth Module MCU For Development Board

Original ESP32-WROOM-32D 2.4GHz WiFi + Bluetooth Module MCU For Development Board

ESP32 Module Description:
ESP32 is a single-chip solution integrating 2.4 GHz Wi-Fi and Bluetooth dual mode. Adopting 40nm process, it features excellent power consumption performance, RF performance, stability, versatility and reliability. It is suitable for a variety of applications and different power requirements.

It is designed for mobile devices, wearable electronics, and Internet of Things (IoT) applications. As an industry-leading low-power chip, the ESP32 has features such as fine-resolution clock gating, power-saving modes, and dynamic voltage adjustment. For example, in the low-power IoT sensor Hub application scenario, ESP32 will be awakened periodically only under certain conditions. It features low duty cycle.

The energy consumption of the ESP32 chip is minimal. The output power of the RF power amplifier is adjustable to make a balance among communications distance, data rate and power consumption.


Features:
Wi-Fi:
- 802.11 b / g / n / e / i
- 802.11 n (2.4 GHz) with speeds up to 150 Mbps
- 802.11 e: QoS mechanism for wireless multimedia technology
- WMM-PS, UAPSD
- A-MPDU and A-MSDU frame aggregation technology
- Block reply
- Sharding and reassembly
- Beacon automatic monitoring / scanning
- 802.11 i security features: pre-authentication and TSN
- Support WPA / WPA2 / WPA2-Enterprise / WPS encryption
- Infrastructure BSS Station Mode / SoftAP Mode
- Wi-Fi Direct (P2P), P2P discovery, P2P GO mode, and P2P power management
- UMA compatible and certified
- Antenna diversity and selection

Bluetooth:
- Bluetooth v4.2 complete standard, including traditional Bluetooth (BR / EDR) and low power consumption Bluetooth (BLE)
- Supports standard Class-1, Class-2 and Class-3. An external power amplifier is not needed
- Enhanced precision power control
- Output power up to +10 dBm
- NZIF receiver with -98 dBm BLE receiving sensitivity
- Adaptive Frequency Hopping (AFH)
- Standard HCI based on SDIO / SPI / UART interface
- High-speed UART HCI up to 4 Mbps
- Support BT 4.2 controller and host protocol stack
- Service Discovery Protocol (SDP)
- General Access Application (GAP)
- Security Management Protocol (SMP)
- Low power consumption Bluetooth
- ATT / GATT
- HID
- Supports all GATT-based Bluetooth Low Energy applications
- SPP-Like Bluetooth low energy data transmission protocol
- BLE Beacon
- A2DP / AVRCP / SPP, HSP / HFP, RFCOMM
- CVSD and SBC audio codec algorithms
- Bluetooth Piconet and Scatternet

CPU & Storage:
- 32-bit LX6 dual-core processor with up to 600 DMIPS
- 448 KByte ROM
- 520 KByte SRAM
- 16 KByte SRAM in RTC
- QSPI can connect up to 4 Flash / SRAM, and each Flash is up to 16 MBytes
- Supply voltage: 2.2V to 3.6V

Clock & Timer:
- Built-in 8 MHz oscillator supports self-calibration
- Built-in RC oscillator supports self-calibration
- Supports external 2 MHz to 40 MHz crystal oscillator
- Support for external 32 kHz crystal oscillator for RTC and self-calibration
- 2 timer groups. Each group includes 2pcs 64-bit general timers and 1 main system watchdog
- RTC timer with sub-second accuracy
- RTC watchdog

Peripheral Interfaces:
- 12-bit SAR ADC, up to 18 channels
- 2x 8-bit D / A converters
- 10x touch sensors
- Temperature Sensor
- 4x SPI
- 2x I2S
- 2x I2C
- 3x UARTs
- 1x Host SD / eMMC / SDIO
- 1x Slave SDIO / SPI
- Ethernet MAC interface with dedicated DMA supports IEEE 1588
- CAN 2.0
- IR (TX / RX)
- Motor PWM
- LED PWM, up to 16 channels
- Hall sensor
- Ultra-low power pre-analog amplifier

Security Mechanism:
- Supports all IEEE 802.11 security features, including WFA, WPA / WPA2, and WAPI
- Safe boot
- Flash encryption
- 1024-bit OTP, user available up to 768 bits
- Cryptographic hardware accelerator:
  AES
  HASH (SHA-2) library
  RSA
  ECC
  Random Number Generator (RNG)

Applications:
- Universal Low-Power IoT Sensor Hub
- Universal Low Power IoT Recorder
- Camera video streaming
- OTT TV box / set-top box equipment
- Music player
  Network Music Player
  Audio streaming equipment
- Wi-Fi toys
  Counter
  Toy anti-lost device
- Wi-Fi speech recognition equipment
- Headset
- Smart socket
- Home automation
- Mesh network
- Industrial wireless control
- Baby monitor
- Wearable electronics
- Wi-Fi location-aware devices
- Security ID tags
- Health and Medical:
  Motion monitoring and anti-lost alarm
  Logger

Supported Development:
- SDK firmware supporting fast online programming
- GCC-based open source tool chains

Package Included:
- 1 x ESP32-WROOM-32D
