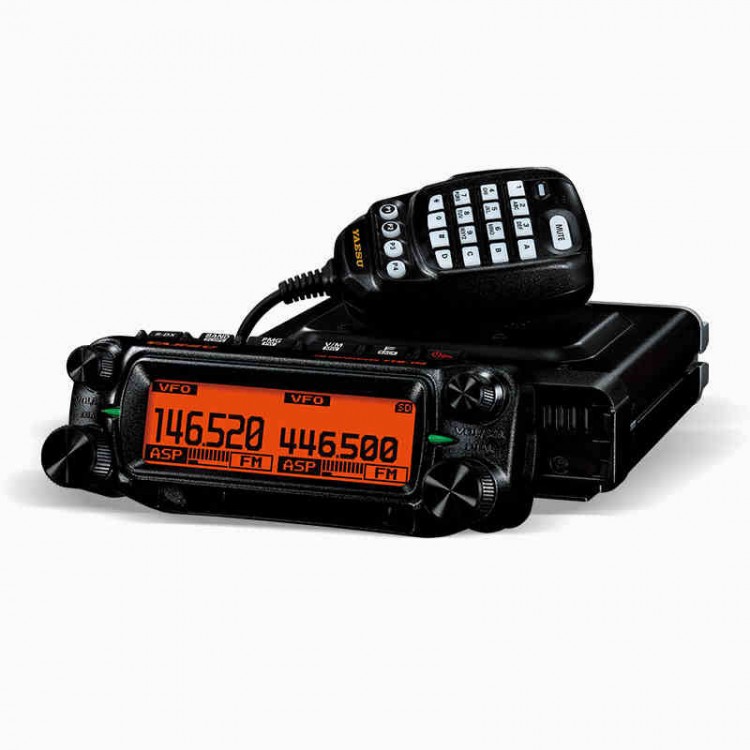

Original FTM-150R ASP 55W (VHF) / 50W (UHF) FM Dual-Band Mobile Transceiver w/ Wired Hand Microphone
Description:
The FTM-150R ASP provides true dual band operation with two different receivers on different bands or within the same band (V+V, U+U, V+U, U+V). Full Dot-Matrix display is graphically visible and provides a clear and crisp view of the radio operating status. Front panel is detachable, and by attaching the optional swing-head - SJMK-500, flexible angle adjustment is possible to accommodate easy mobile operation.
The power output is 55W on VHF and 50W on UHF (55W / 50W, 25W, 5W is selectable). Heavy Duty Heat Sink with FACC (Funnel Air Convection Conductor) ensures stable and reliable transmit power.
A front speaker is furnished inside the control-head. The front speaker, in combination with the main body speaker, provides a total of 6W high quality audio (3W: Front Speaker / 3W: Main Body Speaker). Volume level of the main body speaker is adjustable (0 – 100%) relative to the front panel speaker for users' preference.
The Super-DX function increases the receiver sensitivity and improves weak signal reception. The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures reliable audio quality for weak signals and expands the communication range.
Some remarkable and convenient features of the FTM-150R ASP are:
- PMG (Primary Memory Group)
Up to 5 VFO or Memory Channel frequencies may be assigned to the PMG (Primary Memory Group). The reception status of the PMG channels is displayed in real time with a bar graph in the PMG screen.
The AUTO or MANUAL mode is switchable by pressing and holding the Main VFO knob during PMG operation. The AUTO mode simultaneously shows up to two channels when signals are received. Transmit is automatically moved to the received channel.
In the MANUAL mode, transmit and receive stays on the manually selected channel. The signal received on the other channel is shown on the screen and the audio can be heard.
Specifications:
- Brand: For YAESU
- Model: FTM-150R
- Frequency Range: TX 137-174MHz and 400-480MHz; RX 108-550MHz
- Transmit Power:
* High Power: 55W (144MHz) and 50W (430MHz)
* Medium Power: 25W
* Low Power: 5W
- Number of Channels: 1103
- Power Supply Voltage: DC 13.8V ±15%
- Current Consumption: 0.5A (receiving); 11A (55W transmitting, 144MHz); 10A (50W transmitting, 430MHz)
- Audio Output: 3W front speaker, 3W built-in speaker, and 3W external speaker (external speaker not included)
- Operating Temperature: -20°C to +60°C
- Antenna Connector: SO-239 (M female)
- Antenna Impedance: 50Ω
- Main Unit Dimensions: 139 x 42 x 133mm (excluding fan)
- Panel Dimensions: 148 x 56 x 56mm (excluding knobs)
- Weight: 1.2kg (including main unit and panel)
- Country of Origin: Japan
Package Included:
- 1 x Transceiver main unit
- 1 x User manual
- 1 x 3-meter power cable
- 1 x SSM-85D wired microphone
- 1 x Main unit bracket
- 2 x Spare fuses
- 1 x Bag of screws & other accessories
- 1 x Hook for hand microphone
- 2 x Screws for the hook
Packaging Details:
- Weight: 1.5kg
Note:
- It supports microSD cards from 2GB to 32GB.
- The mobile transceiver is powered by a 12V battery. It is not recommended to draw power from the cigarette lighter socket or ACC. If you are using a 24V battery (such as in a truck), be sure to use a dedicated communication voltage converter. If you plan to use the FTM-150R as a fixed base station, you can choose a 13.8V communication power supply.
- Battery is not included.
