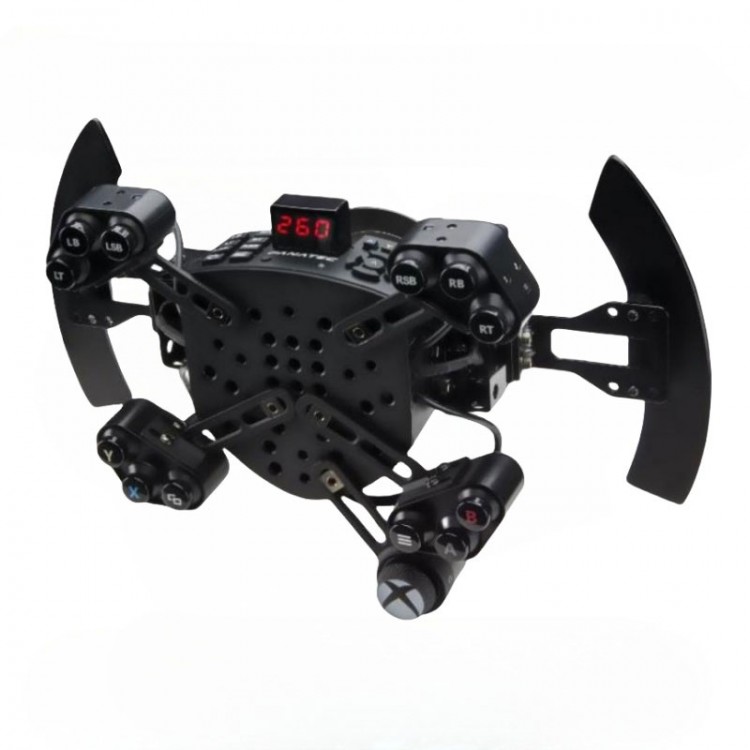

Original HUB V2 for XBOX PC Universal Hub Steering Wheel Hub Racing Game Simulator for Fanatec

Original HUB V2 for XBOX PC Universal Hub Steering Wheel Hub Racing Game Simulator for Fanatec

Description:
One Hub. Countless Possibilities
Attach any wheel rim with a 6 x 70 mm or 3 x 50 mm mounting pattern to this hub for use with an original wheel base for FANATEC.

For Xbox
The ClubSport Universal Hub for Xbox returns in 'V2' form, now with improved electronics, magnetic shifters, and an exchangeable quick release system. Use this hub on any compatible wheel base for Fanatec to enable compatibility for Xbox One and Xbox Series X|S.

Attach Any Rim You Want
Threaded holes for wheel rims with a 6 x 70 mm or 3 x 50 mm pattern means that all current original wheel rims for Fanatec can be attached to the ClubSport Universal Hub V2 for Xbox. It is also compatible with many wheel rims from brands such as for MOMO, Sparco, or OMP.

Packed with Features
Magnetic shifters, adjustable button boxes, and a comprehensive array of buttons integrated into the hub itself means you'll feel totally in control with any wheel rim.

Magnetic Shifter Paddles
The preinstalled ClubSport Magnetic Paddle Module provides exceptionally crisp and rapid shifting. The strong magnetic resistance and 'click', means a solid, positive feel to every shift. Both small and large paddles are included to suit different wheel sizes.

Adjustable Button Clusters
Position the button clusters wherever you want them, or remove them entirely for a clean, compact appearance, using the integrated buttons on top of the Hub instead.

Tuning Menu Access
You can access the Tuning Menu for FANATEC with just the press of a button. Adjust your wheel base force feedback and other hardware settings while you drive. The exchangeable quick release means this wheel is ready for the transition to the all-new QR2 system (coming soon).

Tuning with the Device for FunkySwitch
The 7-way device for FunkySwitch is a multi-purpose input device, with d-pad, push-button, and rotary encoder. Press the Tuning Button to bring up the Tuning Menu on the integrated display, and adjust settings with the parts for FunkySwitch.

Ready for the Future
The exchangeable QR1 Wheel-Side (ClubSport Quick Release Adapter) means the wheel can be upgraded easily to the next-generation QR2 system (coming soon).

Features:
- Enables compatibility for Xbox One and Xbox Series X|S on all connected original hardware for Fanatec (learn more)
- Can be used with all original wheel rims for Fanatec and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. for Sparco, MOMO, OMP)
- Fully assembled and pre-configured to mount the original Wheel Rim GT (or similar) for Fanatec
- ClubSport Magnetic Paddle Module preinstalled
 * 3 mm-thick, black anodised aluminium paddle plates
 * Paddle module cage made of CNC machined aluminium
 * Neodymium magnets
 * Two sets of paddle plates for small and large steering wheels
 * Paddle Plate Spacers to adjust to different steering wheel diameters
- Additional spacers to adjust distance of shifter paddles to wheel rim
- Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
- Detachable button caps with symbols for Xbox, interchangeable with the included racing-style button caps
- 16 integrated buttons on top of the hub
- Four button clusters with three buttons each
- 7-way device for FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Tuning Menu button for instant access to force feedback and other hardware adjustments for Fanatec
- Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software. It can be installed in two positions: upright or flat
- Shifter paddle units, button clusters, and the device for FunkySwitch can be removed to save weight
- DataPort-C connector for Podium Button Module Endurance (optional)
- Allows the use of third-party USB steering wheels on all compatible bases for Fanatec (direct USB connectivity is not possible)
- An additional fifth button cluster can be attached (not included)
- Weight: out-of-the-box configuration approx. 705 g (1000 g with QR1 Wheel-Side) plus wheel rim

Details:
Hub component and Weight
- Universal Hub (without display): 375 g
- LED display unit: 7 g
- Button cluster: 23 g
- Button cluster lever: 12 g
- Unit for FunkySwitch: 32 g
- Lever for FunkySwitch: 10 g
- Small shifter paddle: 11 g
- Big shifter paddle: 22 g
- Magnetic paddle unit: 61 g
- QR1 Wheel-Side: 295 g

Compatibility:
Wheel Bases:
This product is only compatible with the following wheel bases:
- PODIUM Wheel Base DD1
- PODIUM Wheel Base DD2
- For PODIUM Wheel Base DD1 PS4
- ClubSport Wheel Base V2
- ClubSport Wheel Base V2.5
- CSL Elite Wheel Base
- CSL Elite Wheel Base V1.1
- CSL Elite Wheel Base + - officially licensed for PS4
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base
This product is compatible with the Podium Button Module Endurance.

Platforms:
- For Xbox: if connected with this Universal Hub, the above mentioned wheel bases will be compatible with platforms for Xbox One and Xbox Series X|S.
- PC and other platforms: The specifications of the compatible wheel bases will remain unchanged.
- The functionality of this product on platforms for Xbox or PlayStation can be limited by the capabilities of the console (subject to firmware/OS changes and developer support) (see FAQ link for https://fanatec.com/eu-en/faq/details/id/94?_gl=1*15nn3fq*_up*MQ..*_ga*MzQ3MjI2MDI1LjE3MTU2NzE1MjU.*_ga_Q6VYC4JPVE*MTcxNTY3NDk2OC4yLjEuMTcxNTY3NjU4NS4wLjAuMA..). The full functionality can only be guaranteed on PC; this is also game-dependent.

Accessories:
- Podium Advanced Paddle Module
- ClubSport Magnetic Paddle Module
- ClubSport Button Cluster Pack
- All Wheel Rims
- QR1 Wheel-Side

Special Notes:
- In order to operate this product, a compatible Wheel Base (not included) for Fanatec is mandatory!
- Some features might not be supported for Xbox One or Xbox Series X|S. Functionality also depends on game developer implementation of the SDK for Fanatec.
- Buttons and paddle shifters are not easily reached with larger, dished wheel rims.
- DataPort-C connector is not compatible with USB devices.

Packaging Details:
- Dimensions (L x W x H): 34.5cm x 23cm x 14.5cm
- Volume weight: 5.5kg

Technical Specifications:
- Platform: For PC, PS4 Ready and XBox One

What's included:
- ClubSport Universal Hub V2 for Xbox
- 4 x Button clusters with three buttons each
- 2 x Small levers and 2 x long levers
- 1 x For FunkySwitch
- LED display unit
- ClubSport Magnetic Paddle Module with aluminium paddle plates (pre-installed)
- Large and small paddles, bolts and spacers
- QR1 Wheel-Side (ClubSport Quick Release Adapter), packaged separately
- Safety pin for long-term storage
- Safety screw for permanent mount on wheel base
- Set of bolts
- Racing-style button caps
- 'F' sticker for FunkySwitch
- Quick guide
