Description:
The Ultimate Class III pedestrian Truck Combi Control System: Superb Performance and Value

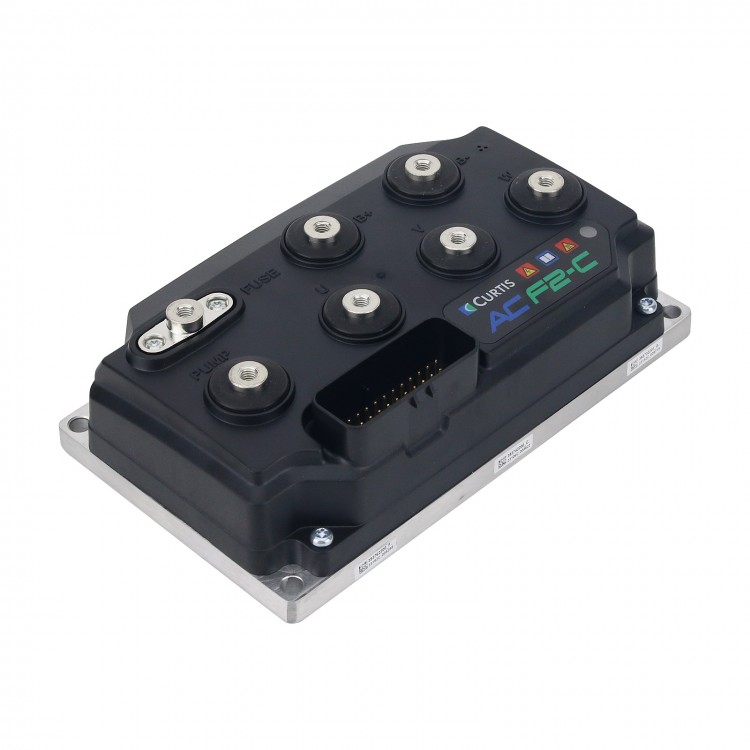

AC F2-C is an integrated AC Traction & DC Pump System Controller. The AC F2-C motor controller, combined with a Half-bridge DC hydraulic pump and proportional valve control system, uses dual high performance microprocessors for ARM Cortex in a compact package. The AC F2-C controller delivers unmatched performance and a very flexible feature set.

AC F2-C is fully optimized for use as a Combi traction and hydraulic controller on 1.0 ton-2.0 ton class III pedestrian-operated powered pallet and stacker trucks. It provides vehicle designers with the ability to fully define and control the detailed dynamic performance of their vehicle’s drive-train and hydraulic pump system, and also provides comprehensive vehicle management and CAN capabilities. Model AC F2-C is also suitable for traction and hydraulic pump control on other types of battery powered vehicles such as the small aerial scissor lift platforms. Together with 3141 CAN LCD display and the user-friendly Integrated Toolkit for Curtis, the AC F2-C is the ultimate Class III truck control system.

Features:
▶ High efficiency, field-oriented motor control algorithms.
▶ Fully integrated Half-bridge hydraulic pump controller that is configurable for various hydraulic plumbing layouts.
▶ Compact, rugged housing with very small 'footprint' for its power rating.
▶ Heavy duty M6 bus-bars for motor and battery connectors.
▶Built-in fuse stud for hassle free mounting of fuse.

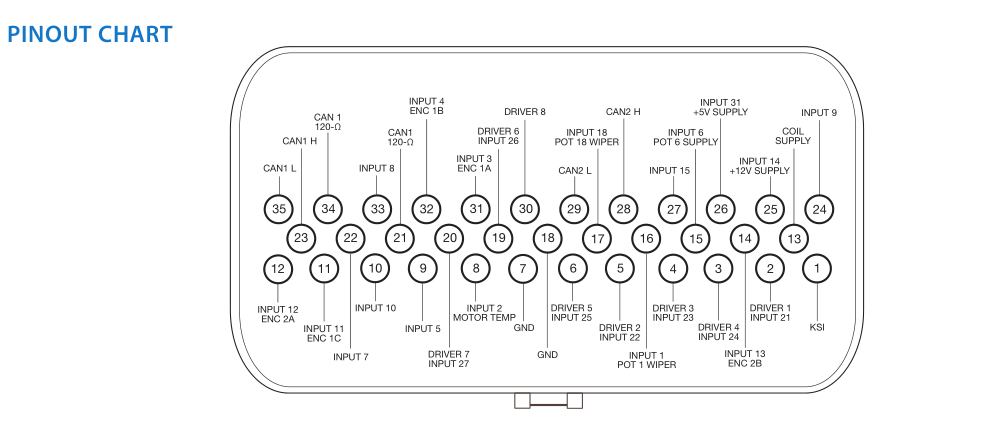

▶ Sealed, 35-pin AMPSEAL I/O connector.
▶ Impervious to most oils, solvents, degreasers and other chemicals often encountered by industrial vehicles.
▶ IP65 and IP67 environmental protection as per IEC 60529.
▶ Exceeds latest global conformance requirements for functional safety, electrical safety and EMC.
▶ CE marked as a programmable safety device.
▶ UL583 Pending.

Get More Out of Your Battery—Regardless of the Technology
▶ High-efficiency means more of your battery's energy is converted to motor output power.
▶ Fully configurable over- and under-voltage protection parameters.
▶ Wide operating voltage range allows use with the latest cell chemistry such as lithium ion.
▶ Configurable CANbus and VCL allow easy integration with the BMS (Battery Management Systems) typically found on lithium battery packs.

Powerful, High Performance Dual Microprocessors
▶Dual-micro architecture achieves up to PL=D, category 2 functional safety under EN ISO 13849-1 / EN1175-1:1998+A1:2010.
▶Ultra-fast processor speeds allows highly accurate control and regulation of voltage, frequency and current.
▶Hardware 'ready' for the forthcoming EN1175:2020.

Customize Your Vehicle with VCL
▶The VCL (Vehicle Control Language) allows original AC motor controllers for Curtis to perform as 'vehicle managers', eliminating the need for costly, additional system controllers.

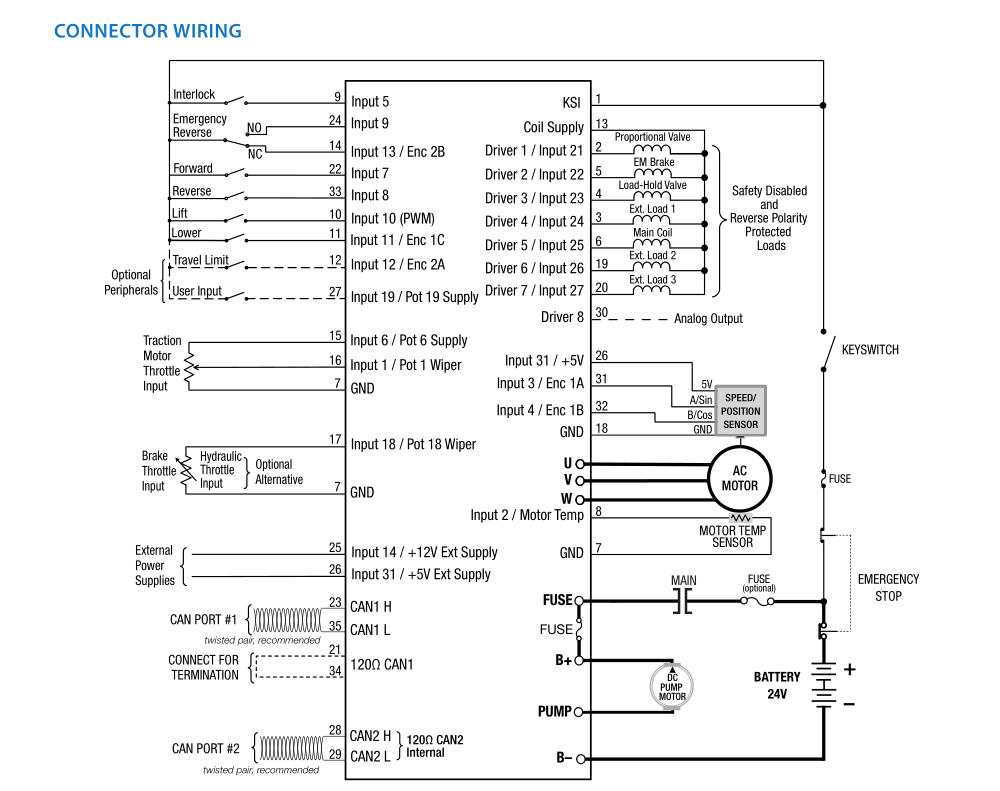

Highly Flexible I/O
▶ All I/O pins are multi-function, and can be configured to provide up to:
– 23 digital inputs
– 13 analog inputs
– 2 potentiometer sources
– 7 output drivers, including proportional valve drivers
– 2 quadrature encoder inputs
– Sine/Cosine sensor inputs
– +5V and +12V external power (200mA)

Comprehensive CAN Capabilities
▶ Two independent CAN ports. Each port can run different rates and protocols, with full CANopen and/or J1939 compatibility. Perfect for hybrid vehicles or to bridge CANopen ports at different bit rates.
▶ 'Plug and Play' support for Curtis CAN displays and a variety of CAN tiller heads from leading
manufacturers FREI and REMA.
▶ Fully compliant with CANopen protocol CiA 301.
▶ Capable of acting as 'CAN interpreter' allowing 3rd party CAN devices with differing profiles to work on the same CAN network.

Improved Diagnostics
▶ Integrated, high visibility status LED with simplified flash code sequence for at-a-glance system troubleshooting.
▶ Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
▶ Error logging and fault history tables with CAN Emergency Messages.

CAN-based Programming
▶ Model AC F2-C is programmable over the CANbus. This allows simple 'vehicle level' communication with many of the CAN-based service tools used by the major industrial truck manufacturers worldwide.
▶ Allows use of original Integrated Toolkit for Curtis.

Package Included:
- 1 x AC Motor Controller

Note:
- Battery is not included in the package.
- These models need to be produced in batches. If you want to buy these models, please contact customer service for quotation:

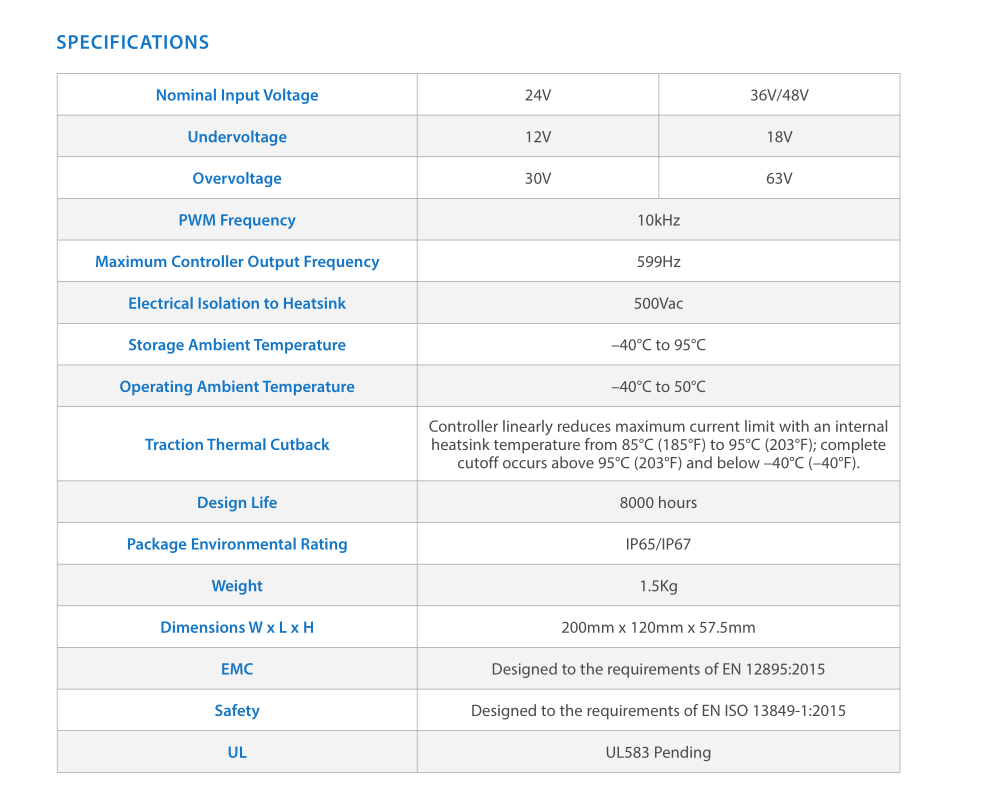

  AC F2-C 24-200-200-001 24V 200Arms 70Arms 200A
  AC F2-C 24-120-200-001 24V 120Arms 42Arms 200A
  AC F2-C 24-280-300-001 24V 280Arms 98Arms 300A
  AC F2-C 48-150-200-001 36-48V 150Arms 53Arms 200A
  AC F2-C 48-240-240-001 36-48V 240Arms 84Arms 240A
