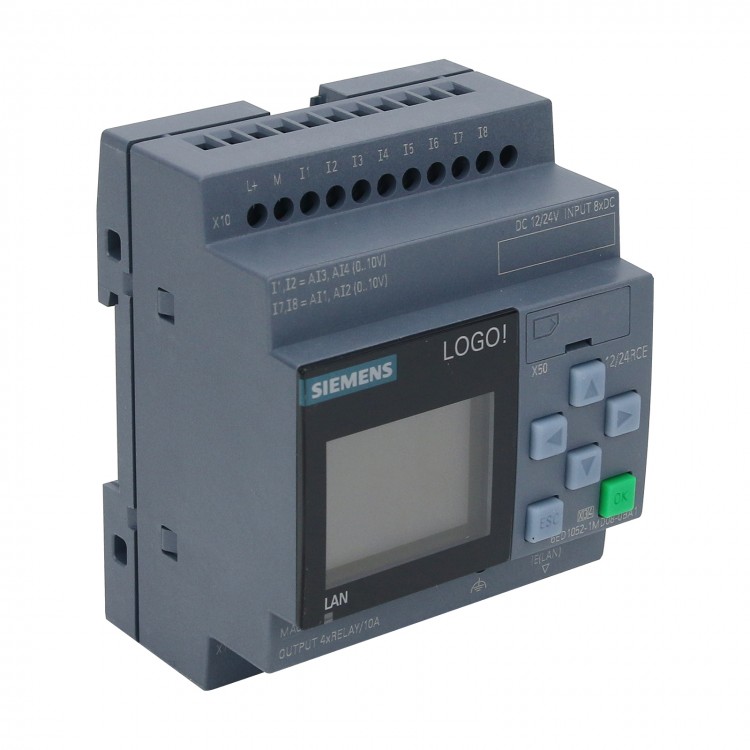

Original PLC For SIEMENS LOGO 12/24RCE Programmable Logic Controller 6ED1052-1MD08-0BA1 Logic Module

Original PLC For SIEMENS LOGO 12/24RCE Programmable Logic Controller 6ED1052-1MD08-0BA1 Logic Module

Product Information:
- Model: 6ED1 052-1MD08-0BA1 LOGO 12/24RCE, which can directly replace the old models (052-1MD00-0BA8 and 052-1MD08-0BA0) without modifying any program parameters
- Power supply: 12/24V DC/relay
- Input: 8DI (4AI)
- Output: 4 DO
- 400 functional blocks of memory, connectable expansion module, integrated Ethernet interface, with display unit and operation panel, with integrated real-time clock/timer switch, adding remote operation and cloud service functions
- Brand new genuine controller for Siemens

Attention:
- For it is a brand new product, without any program inside, you need to enter the program into it.

Description:
The newly launched LOGO! 8.2, as an upgraded replacement version of LOGO! 8, inherits the powerful functions of LOGO! 8 while incorporating new product highlights. The LOGO! 8.2 host module integrates the Web Server function. Users can use the newly released web configuration software LOGO! Web Editor V1.0 to realize user-defined web pages without HTML programming experience. In addition, the programming software LOGO! Soft Comfort V8.2 has more powerful functions, a more user-friendly interface, and is fully compatible with older versions of LOGO! programs, enabling seamless project migration and easy and convenient completion of project engineering configuration.

Features:
- Host module, supports different voltage types, with display
- Integrate more than 40 callable function blocks
- The host integrates 8 digital inputs, 4 of which integrate 4 analog (0-10V voltage) inputs
- The host integrates 4 digital outputs, providing relay or quality control output types
- Flexible expansion, maximum configuration: 24 DI, 20 DO, 8 AI, 8 AO
- The basic host integrated display, supports 6-line text display, and provides three kinds of backlight (white, orange, red)
- Integrated Ethernet port, can be connected to PLC and touch screen for Siemens, and supports for OPC and Modbus TCP/IP communication
- Integrated data retention function, which can retain current data in the event of a power failure
- The allowable working environment temperature of the module extends to -20℃ to 55℃
- Integrated Web Server, which can easily realize remote control of mobile devices such as mobile phones and computers
- Provide LOGO! APP, support parameter monitoring, modification and trend tracking operations
- Support data recording function, can store designated production or process data through LOGO!
- Support Micro SD card (not included) as external memory card to realize program copy and data record storage
- Support Network Time Protocol (NTP) function to realize time and data synchronization
- Programming software LOGO! Soft Comfort V8.2, fully compatible with the old version of the program, can easily achieve programming and simulation debugging
- Web page configuration software LOGO! Web Editor, can realize user-defined web pages, users do not need to have HTML programming experience
- With tool LOGO! Access Tool, you can remotely view LOGO! running data in MS Excel

Other Highlights:
- Program memory doubled to 400 function blocks
- The clock holding time has been expanded from 80 hours to 480 hours
- Increased 8-bit shift register from 1 to 4
- Increased the number of open connectors from 16 to 64
- The number of analog registers increased from 6 to 64
- Support Micro SD card as external memory card
- Support Ethernet mode for program upload/download
- Support online diagnosis function
- Support data logging function

Connection between LOGO! 8.2 and Products for SIMATIC:
LOGO! 8.2 host module can connect more advanced automation equipment through S7 protocol, such as:
- For SIMATIC S7 CPU (including S7-200, S7-1200, S7-300, S7-1500, etc.)
- HMI operation panel with Ethernet interface
- Configuration software, such as for WInCC (via OPC method)

Connection between LOGO! 8.2 and Devices for Modbus TCP/IP:
- LOGO! 8.2 host module supports for Modbus protocol on Ethernet TCP/IP network
- It supports for both Modbus Server and Modbus Client functions
- Configurable client communication interval
- For connection up to 8 static Modbus TCP IIP devices and an additional 8 dynamic connections Modbus TCP/IP clients

LOGO! Software and Functions:
1. LOGO! Soft Comfort V8.2 is more powerful and more user-friendly
1.1. Choosing the LOGO! Easy software means simple and fast. Ladder diagrams and function block diagrams can be easily created by selecting and dragging related functions and connections. The offline simulation function can be fully utilized on a PC, and the program can be converted and debugged during the simulation period (two program representation methods). All necessary configuration information (for example, comments and switching program settings) are accompanied by professional instructions.

1.2. LOGO! Soft Comfort V8.2 Software highlights:
- Compatible with the old version of the program, support multiple operating systems: for Windows (including for Windows XP, Windows 7, Windows 8 or Windows 10) MAC OSX and Linux
- Support user-defined functions (UDF). Repeatable timing control creation functions and libraries, such as roller shutter controllers
- The created UDF or library can be easily transplanted to other project programs
- Support data recording. It can help users store specified production or process data through LOGO!. The data log file can be stored in the LOGO! internal storage area or an external Micro SD card. User can customize the time interval of data recording
- Support LOGO! 8.2 networking configuration. New network mode, you can see 3 groups of programming at the same time. The communication between devices can be connected by drag and drop. Support for LOGO! TDE online function, online and offline settings
- Programming optimization and improvement. Real-time monitoring of input and output via PC, support for archiving in Excel format. When the function block is replaced, the connection is automatically connected, and there is no need to reconnect it. Arrange function keys to realize the rapid arrangement of function blocks vertically or horizontally. The connection function of function blocks and comments has been added. Enhanced the reference function between function blocks

2. LOGO! Web Editor V1.0 User-defined Webpage Software
- The newly released web configuration software LOGO! Web Editor V1.0 can be used for user-defined web pages
- Users do not need to have HTML programming experience to customize web pages in the software editor window
- The software provides a wealth of web configuration elements, such as text fields, IO fields, graphical views, hyperlinks, bar graphs and sliding bars, etc.
- Can provide users with better and more convenient remote operation performance
- All necessary data including pictures, button styles, etc. are stored on a Micro SD card

3. LOGO! Access Tool V2.0 Data Remote Monitoring Tool
- Provide tool LOGO! Access Tool V2.0, users can remotely view the running data in LOGO! host module in MS Excel
- You can set the data synchronization period
- Display historical data
- Start or stop data synchronization

Package Included:
- 1 x Logic Module

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
