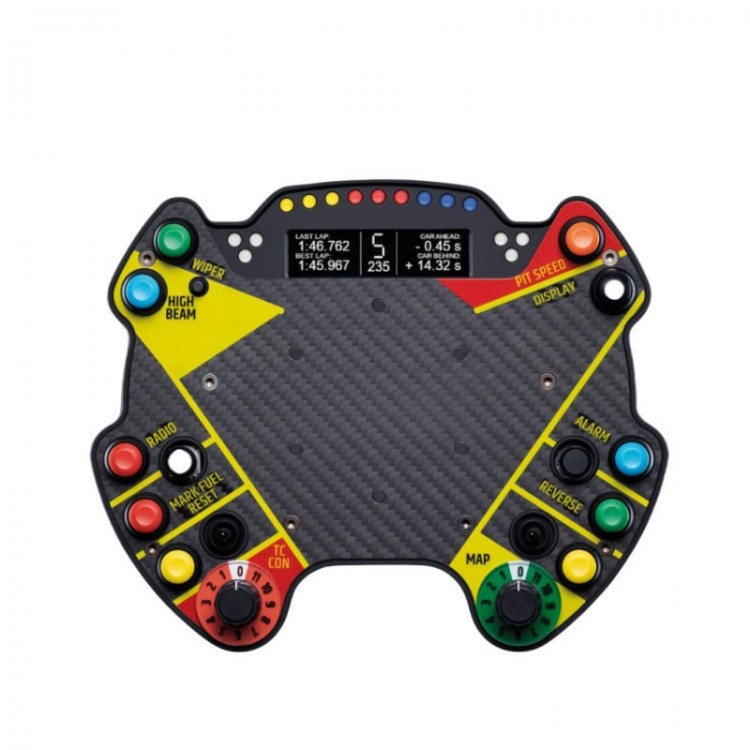

Original Podium Button Module Endurance with 2.7" OLED Display for Fanatec PC PS4 Ready Xbox One

Original Podium Button Module Endurance with 2.7" OLED Display for Fanatec PC PS4 Ready  Xbox One

Description:
Create a stunning GT3-class steering wheel using the Podium Button Module Endurance
Designed for both the Podium Hub and ClubSport Universal Hub for Xbox One, the Podium Button Module Endurance offers motorsport-inspired aesthetics and features

Full-scale Replica
Enhance the appearance and functionality of your wheel with this full-scale replica of a GT3-class endurance button module, and suitable for the Podium Wheel Rims R911, R911S, and R300.

High-end Materials
Real carbon fibre front plate and internal metal reinforcements for maximum stability, and electronics contained within a rubber-coated, glass fibre-reinforced backplate.

Extensive Functionality
Unlock the potential of the Podium Hub with instant access to force feedback adjustments using the Tuning Menu button, FunkySwitch, and OLED display. RGB LEDs and many input types are arranged neatly within the wheel rim.

Multiple Inputs
With 10 buttons, two 2-way toggle switches, a 2-axis analogue stick, 7-way FunkySwitch, and two 12-position switches which can also be configured as endless rotary encoders, you'll have a wealth of controls at your fingertips.

Multiple Outputs
The nine high-intensity RGB RevLEDs and six high-intensity RGB Flag LEDs surround the 2.7" OLED display, providing instant information about your vehicle.

Intelligent Telemetry Mode
The customisable OLED display offers enhanced display capabilities through Intelligent Telemetry Mode (ITM).

Wide OLED Display
Much like the OLED display on the Podium wheel bases, the Podium Button Module Endurance display can show detailed information, including many telemetry data types at once.

Maximum Flexibility
Switch between five different game telemetry data layouts (manually or triggered by the game). Games without ITM support will automatically run in Legacy Mode.

Features:
- Upgrade module for Podium Hub and ClubSport Universal Hub for Xbox One (with included adaptor)
- Real carbon fibre front plate and internal metal reinforcements for maximum stability
- Rubber-coated glass fibre reinforced backplate
- Lightweight at 410g
- Full-scale replica to class-leading endurance GT3 racing car
- 10 buttons
- Two 2-way toggle switches
- Two 12-way Multi-Position Switches with Encoder Mode (endless rotation)
- One FunkySwitch (7-way joystick/encoder)
- One analogue joystick (2-axis)
- Nine RGB high-intensity RevLEDs
- Two Flag LED groups with three RGB high-intensity LEDs each
- User-defined LED behavior via FanaLab
- Integrated 2.7" 256x64 resolution OLED display
- Tuning functions in the OLED display
- Support for Intelligent Telemetry Mode (ITM)
- Clutch bite point indication on the OLED display (when used in combination with the Podium Advanced Paddle Module)
- Detachable button caps, compatible with other original button caps (for Xbox, PS4, Racing Style) for Fanatec
- Compatible with R911, R911S, and R300 wheel rims for Fanatec
- Reversible DataPort-C connector
- Customisable button labels (sticker set included)

Compatibility:
1. Peripherals:
- ClubSport Universal Hub for Xbox One
- ClubSport Universal Hub V2
- ClubSport Universal Hub V2 for Xbox
- Podium Hub

2. Wheel Bases:
This product is only compatible with the following wheel bases:
- PODIUM Wheel Base DD1
- PODIUM Wheel Base DD2
- For PODIUM Wheel Base DD1 PS4
- ClubSport Wheel Base V2.5
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base
- CSL Elite Wheel Base +
- CSL Elite Wheel Base V1.1

3. Wheel Rims:
- For Podium Wheel Rim Porsche 911 GT3 Cup (Suede)
- For Podium Wheel Rim Porsche 911 GT3 Cup (Leather)
- Podium Wheel Rim R300*
- ClubSport Wheel Rim 320
- For ClubSport Wheel Rim 320 Alcantara

Note:
- Wheel rims like the ClubSport Drift are compatible but not recommended. The ClubSport Wheel Rim GT and similar rims are NOT compatible due to the proximity of the spokes and buttons.
- Due to the smaller diameter of the R300, there is a tight clearance between the Button Module Endurance and the base of the wheel rim.

4. Platforms:
- For Xbox One: the Podium Button Module Endurance is compatible with the platform for Xbox One when used with the ClubSport Universal Hub for Xbox One. The functionality of this product on the platform for Xbox One can be limited by the capabilities of the console (subject to firmware/OS changes and developer support).
- For PS4: the Podium Button Module Endurance is compatible with the platform for PS4 when used with the Podium Wheel Base DD1 for PS4 (part of the Podium Racing Wheel for F1 PS4 package). The functionality of this product on the platform for PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support).
- For PC: Full functionality is also game-dependent and subject to developer support.

Special Notes:
- The Podium Button Module Endurance extends the distance between the Hub and Wheel Rim by 11mm.
- This product is only suitable for wheel rims with a 6x70mm hole pattern.
- If you wish to use this product with a third-party wheel rim, please check the sizing template in the Downloads section in the official website.

Technical Specifications:
- Platform: For PC, PS4 Ready and XBox One Ready

Package Included:
- 1 x Set of Podium Button Module Endurance

Packaging Details:
- G.W.: 1.4kg
