Original Podium Hub Steering Wheel Hub PHUB (without Quick Release) Racing Simulator for FANATEC

Original Podium Hub Steering Wheel Hub PHUB (without Quick Release) Racing Simulator for FANATEC

Description:

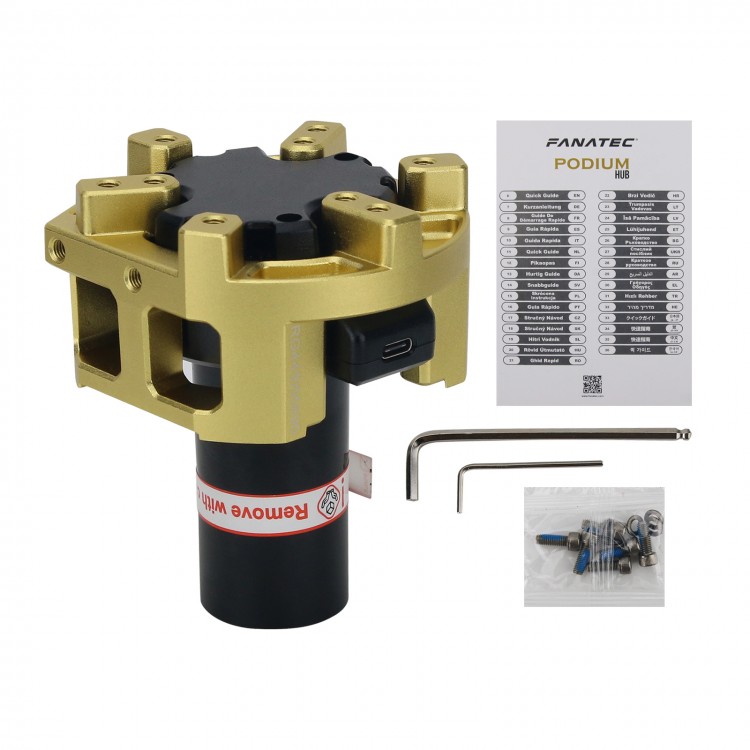

Podium Hub: The ultimate core for your modular steering wheel
The Podium Hub is the premium core component for the modular steering wheel system for Fanatec.

Aluminium monocoque
The space frame design surrounds the electronic components for the lightest possible weight. The central hub is created from a single piece of anodised aluminium for maximum strength.

High performance central core
Integrating a dedicated processor for ARM, the Podium Hub is low latency, firmware upgradeable, and supports 10 buttons and dual 16-bit resolution analogue inputs. Additional buttons, axes, and displays can be connected via DataPort-C.

Customization and Flexibility
Use the Podium Hub to mount wheel rims for Fanatec and from other manufacturers, or even full steering wheels. Easily upgrade and customize using modular components for Fanatec.

Wheel rim compatibility
The Podium Hub features mounting holes for wheel rims using the 6x70mm or 3x50mm bolt pattern. It is possible to run third-party steering wheels on PC with USB cables as used on OSW Direct Drive for example.

Supports Podium Series modular components
The Podium Hub contains connectors for the Podium Advanced Paddle Module, two Universal Hub button clusters, and a DataPort-C connector for attaching button for Fanatec or display modules.

Features:
- Gold anodised aluminium monocoque
- Ultra sturdy and lightweight space frame design
- Two connectors for the Podium Advanced Paddle Module (4 buttons + 2 analogue axes)
- Two connectors for Button Clusters (2 x 3 buttons)
- One DataPort-C connector for accessories (e.g. Podium Button Module Endurance)
- Supports interchangeable Quick Release (not included in the package)
- Accepts all original wheel rims for Fanatec
- Accepts all third-party rims using the 6x70mm or 3x50mm bolt pattern (e.g. for Sparco, MOMO, OMP)
- Allows the use of third-party steering wheels with USB cables on all original bases for Fanatec
- Weight (including QR1 Wheel-Side): 563g

Compatibility:
Wheel Bases:
- PODIUM Wheel Base DD1
- PODIUM Wheel Base DD2
- PODIUM Wheel Base DD1 for PS4
- ClubSport DD Wheel Base
- ClubSport DD+ Wheel Base
- ClubSport Wheel Base V2*
- ClubSport Wheel Base V2.5
- CSL Elite Wheel Base*
- CSL Elite Wheel Base V1.1*
- CSL Elite Wheel Base + - officially licensed for PS4
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base
* Control of Tuning Menu not possible without optional button module

Wheel Rims:
Please download the manual to see the information about the compatible 6 hole or 3 hole patterns. Many wheel rims for SPARCO, MOMO, OMP and others will be compatible but you need to make sure with the manufacturer of the rim you want to use.

Accessories:
- Podium Advanced Paddle Module
- ClubSport Magnetic Paddle Module
- Podium Button Module Endurance
- Podium Button Module Rally
- ClubSport Button Cluster Pack
- All Wheel Rims

Platforms:
- PC: this product is compatible with Windows PC.
- For Xbox: this product is not compatible with systems for Xbox.
- For PlayStation: The functionality of this product on the platform for PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. For PlayStation 5: Check platform compatibility page on the official website for more details.

Special Notes:
- If used as a barebones unit with no button modules connected, the Podium wheel base high torque warning message can be accepted by holding the wheel at 90 degrees, and centre calibration can be performed within the driver.
- Tuning Menu can be accessed via Software for Fanatec on PC or via optional button module.
- The ClubSport Wheel Base V2, CSL Elite Wheel Base V1, and CSL Elite Wheel Base V1.1 are compatible with the Podium Hub but do not allow Tuning Menu access via the software for Fanatec. The Tuning Menu must be accessed via a suitable display/button module connected to the Podium Hub or by attaching a different steering wheel to the wheel base.
- DataPort-C connector is not compatible with USB devices.

Technical Specifications:
- Platform: For PC and PS4 Ready

Package Included:
- 1 x Set of Podium Hub

Packaging Details:
- Dimensions (L x W x H): 11.5cm x 9cm x 7.8cm
- G.W.: 0.7kg

Note:
- Quick release is not included in the package.
