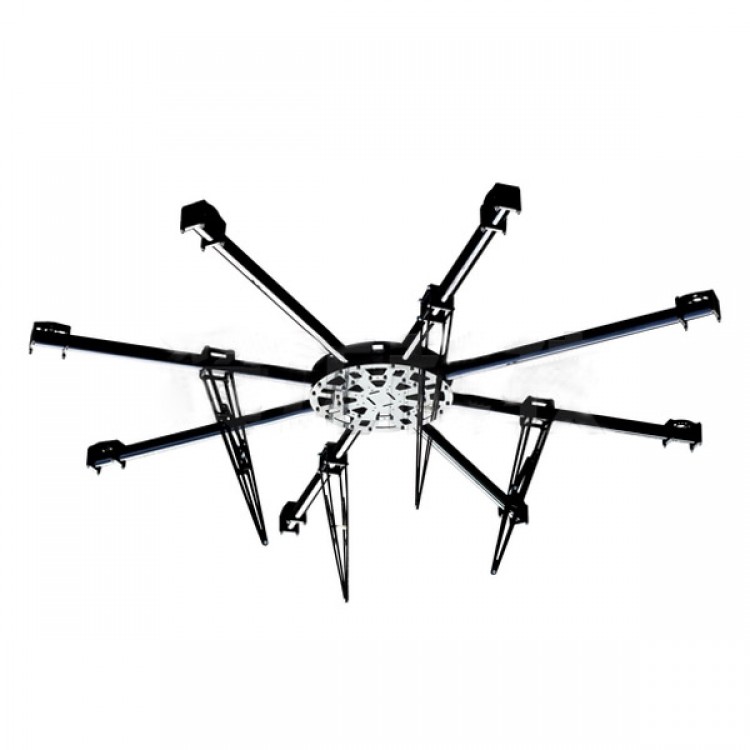

Original Professional FPV 22mm Carbon Fiber Octa Multicopter Frame Set Kit 700-950mm Wheelbase

Original Professional FPV 22mm Carbon Fiber Octa Multicopter Frame Set Kit 700-950mm Wheelbase

Descriptions:
- This super aircraft can be installed as quadcopter or hexcopter  depends on you.
- All the parts adopts 2.0mm thickness 3K twill carbon fiber as material,
- Composite by high quality aluminum tube and 3K twill 100% 20x22mm carbon fiber tube.
- High strength with light weight
- Designed for high grade FPV!
- Weight:1155g

- The Diameter of the base board for this quadcopter is about 240mm,with carbon fiber landing gear( default 300mm height),compatible with Xaircraft landing gear,it is similar as the installation method of XAircraft.
- The default set we send you is a Octacopter set kit,you can install it as a quadcopter if you like,Moreover, you also can make it as a hexcopter!Magical design enable you enjoy the fliying of both multicopter!

This multicopter is designed for FPV,shaft distance is between 700mm to 900mm(Shaft can be retractable ).It can installed light weight Single Lens Reflex camera or common digital camera(such as EOS 60D,GH2 and so on)

This multicopter set kit includes:
- 240mm diameter Plate/base board,2pcs/set
- Battery mounting plate:1pcs
- Landing gear set:includes corresponding carbon fiber tube,clip,screws ans nuts
- 8pcs Corresponding motor mounting plate
- some 22mm clamp for carbon fiber(black,M3 hole)
- 8PCS 22mm thickness 3K Carbon fiber tube(500mm length,can be cut by youself if it is too long)
- Other accessaries which is needed to install a multicopter

Recommend Accessories(not included):
It is depend on you to choose KV Value,you can take the specfication of motor as reference
- W4822 Brushless Outrunner Motor: 690KV  570KV   490KV   390KV
- 20A-30A ESC
- 1208/1470 CW/CCW Propellers
