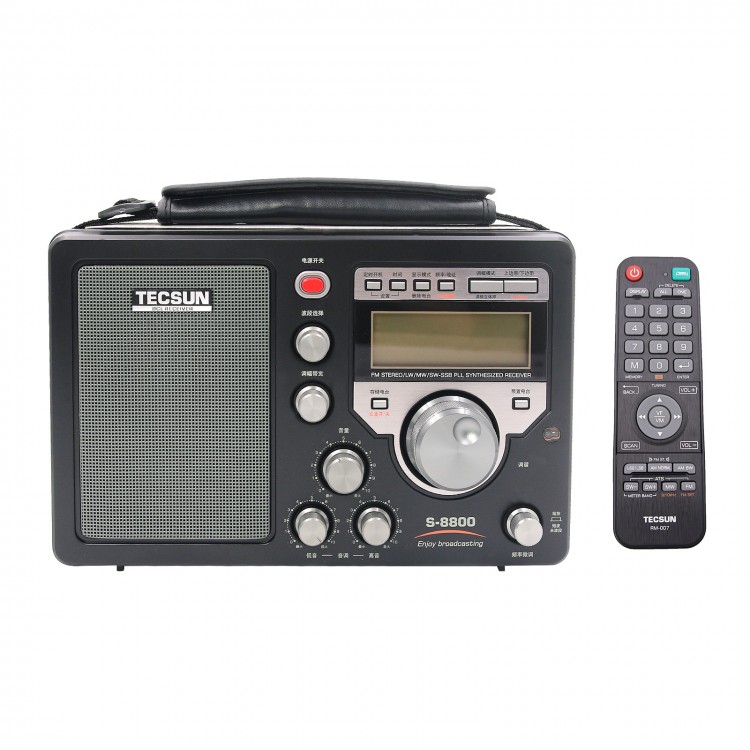

Original TECSUN S-8800 PLL DSP AM/FM/LW/SW All band SSB Radio Receiver Stereo + Remote Control

Original TECSUN S-8800 PLL DSP AM/FM/LW/SW All band SSB Radio Receiver Stereo + Remote Control

Please Note 2 x 18650 lithium battery not included,if you need it,please contact us for extra fee


Description:
- TECSUN S-8800 is equipped with analogue High-IF circuits, triple AM conversion and DSP decoding technology. Fitted with class-AB type power amplifiers and an ultra-dynamic full-range speaker, it creates a wonderful sound with excellent high/low tone selection. As a bonus, the inclusion of a remote control provides the possibility to directly key in your favorite station frequency and enhances the overall ease-of-use!
 - Unit size: 272 x 173 x 88 mm (approx. 10.7 x 6.8 x 3.5 inches)

The following items are included in the package:
- S-8800 radio (English version) with charcoal colored metal knobs
- Remote control
- USB charging cable
- BNC adapter plug
-  PLEASE NOTE: This device is powered by batteries (2 x 18650) only!



Frequency Range:
    FM: 64-108 MHz (adjustable setting, start at 64, 76, 87 or 88 MHz)
    MW (AM): 520-1710 kHz, 522-1620 kHz (tuning step 1kHz, 9kHz, or 10kHz)
    LW: 100-519 kHz (tuning step 1kHz or 9kHz)
    SW: 1711-29999 kHz (tuning step 1kHz or 5kHz)


Tuning Methods:
    Manual jog dial tuning and fine tuning
    Auto scan tuning with 5 second stop on each station
    Direct frequency entry using the remote control


Station Storage Methods:
    Manual storage: tune into stations manually and store them
    Semi-auto storage: storing stations during auto scan
    Auto Tuning Storage (ATS): automatically tune into and store stations


Basic Features:
    PLL DSP Receiver
    FM / MW / LW / SW / SSB (USB/LSB)
    FM-stereo via headphones
    Remote control operation
    Adjustable shoulder or hand carrying belt
    650 station memories
    Stored stations memory browsing
    Auto Sorting Memory: Sorts all stored stations according to frequency and removes duplicate station frequencies.
    LCD backlight (5-seconds or continuous illumination)



    Multi-functional Digital Display shows:
        Frequency & SW meter band
        Signal strength indicator
        Stored station location
        Clock & Alarm time
        Battery indicator & charging time
        Clock/Alarm time (24H-format)
        Sleep timer (1-120 minutes): auto turn off radio
        Alarm clock (by radio)
        Alarm Off Timer (1-90 minutes): auto turn off radio after alarm

        Powered by 2 x 18650 lithium battery
        No external power supply
        Fitted with silver metal knobs
        Treble & Bass control knobs
        Separate tuning and fine tuning knobs
        SSB tuning steps at 10 Hz / 1 kHz
        AM IF bandwidth selection (2.3, 3.0, 4.0, 6.0 kHz)


        Sensitivity:
       FM (S / N = 30dB) < 3uV
        MW (S / N = 26dB) < 1mV/m
        LW (S / N = 26dB) < 3mV/m
        SW (S / N = 26dB) < 20uV
        SSB (S / N = 10dB) < 1uV



    Selectivity:
        FM > 60dB (± 150kHz)
        MW / LW > 50dB (BW = 6kHz)
        SW > 50dB (BW = 6kHz)


    S/N Ratio:
        FM better than 65dB
        SW better than 45dB
        LW/MW better than 40dB
