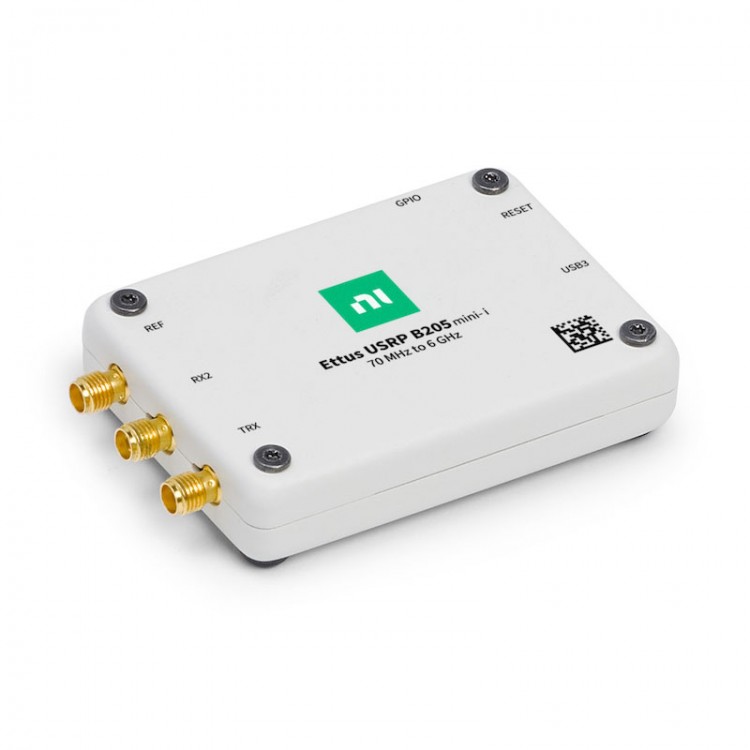

Original USRP B205MINI-I (1X1, 70 MHZ to 6 GHZ) Software Defined Radio Platform for NI ETTUS RESEARCH

Original USRP B205MINI-I (1X1, 70 MHZ to 6 GHZ) Software Defined Radio Platform for NI ETTUS RESEARCH

Description:

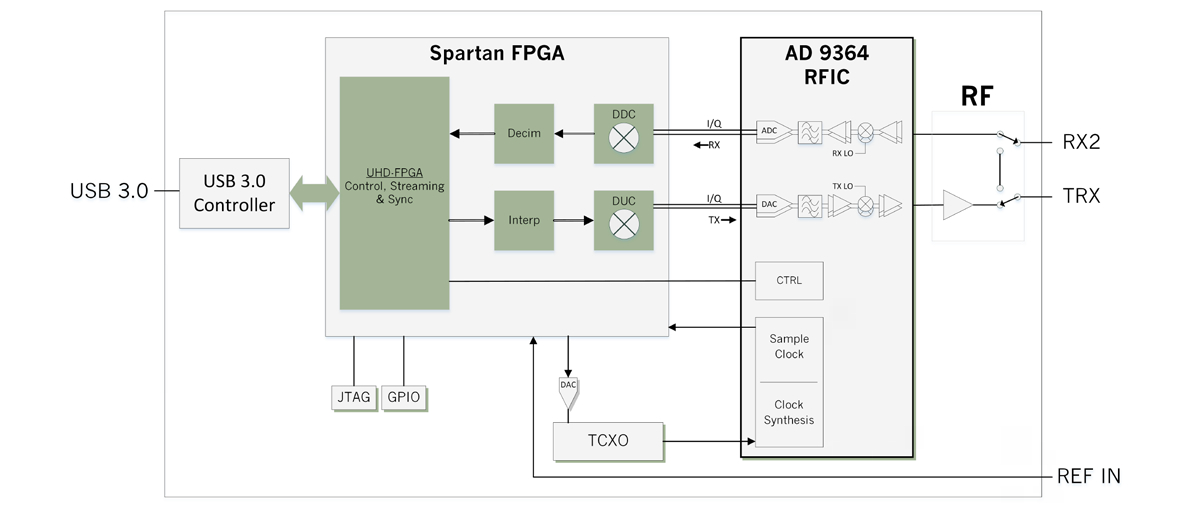

The USRP™ B205mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Spartan-6 XC6SLX150 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the original AD9364 RFIC transceiver (for Analog Devices) with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The B205mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. The USRP Hardware Driver™ (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

Features:
* Wide frequency range: 70 MHz – 6 GHz
* Up to 56 MHz of instantaneous bandwidth
* Full duplex operation
* User-programmable, industrial-grade Spartan-6 XC6SLX150 FPGA
* Fast and convenient bus-powered USB 3.0 connectivity
* Synchronization with 10 MHz clock reference or PPS time reference
* GPIO and JTAG for control and debug capabilities
* 83.3 x 50.8 x 8.4 mm form factor
* USRP Hardware Driver™ (UHD) open-source software API version 3.9.2 or later
* GNU Radio support maintained through GR-UHD, an interface to UHD distributed by GNU Radio

Package Included:
* 1 x USRP B205mini-i
* 1 x USB 3.0 Cable
* 1 x Getting Started Guide

Packaging Details:
- Weight: 0.5kg

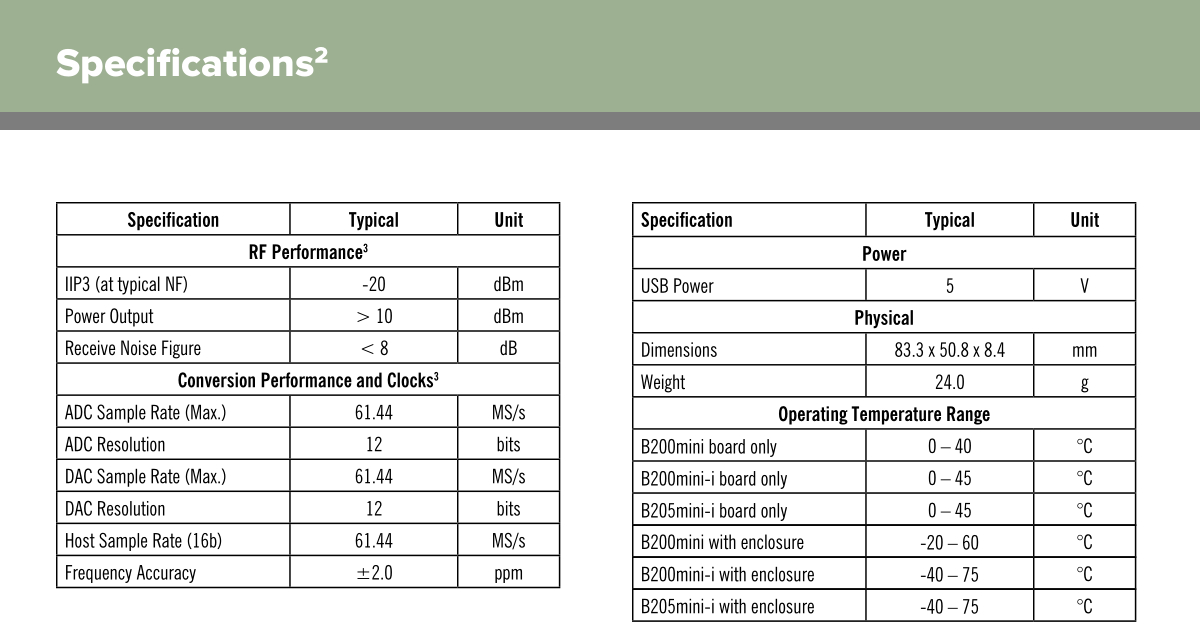

2 All specifications are subject to change without notice.
3 Additional RF and digitizer specifications can be found on the ADI 9364 data sheet. http://www.analog.com/media/en/technical-documentation/data-sheets/AD9364.pdf
