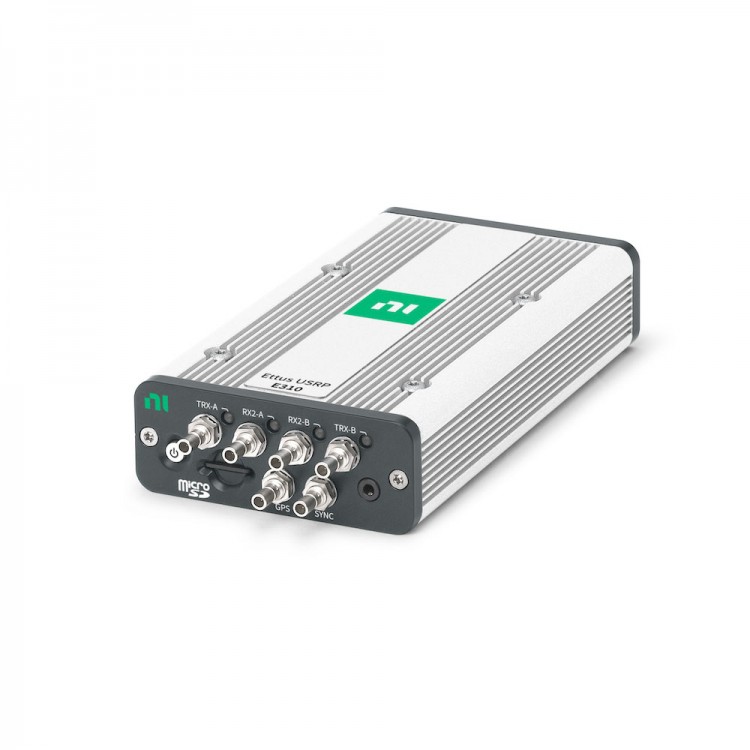

Original USRP E310 Kit 70MHz-6GHz SDR Platform Software Defined Radio Platform 2x2 MIMO for NI ETTUS

Original USRP E310 Kit 70MHz-6GHz SDR Platform Software Defined Radio Platform 2x2 MIMO for NI ETTUS

Overview:
The USRP E310 offers a portable stand-alone software defined radio platform designed for field deployment. The flexible 2x2 MIMO AD9361 transceiver provides up to 56 MHz of instantaneous bandwidth and spans frequencies from 70 MHz – 6 GHz to cover multiple bands of interest. RF filter banks in both the transmitter and receiver front-end enhance selectivity.

The baseband processor uses the Zynq 7020 SoC to deliver FPGA accelerated computations combined with stand-alone operation enabled by a dual-core CPU for ARM. The USRP E310 includes a rich set of peripherals such as an integrated GPS receiver for position awareness and time synchronization, as well as two host USB ports for extending storage, I/O, and communication options with off-the-shelf devices. Users can rapidly prototype and deploy designs for mobile and embedded applications with tight size, weight, and power requirements.

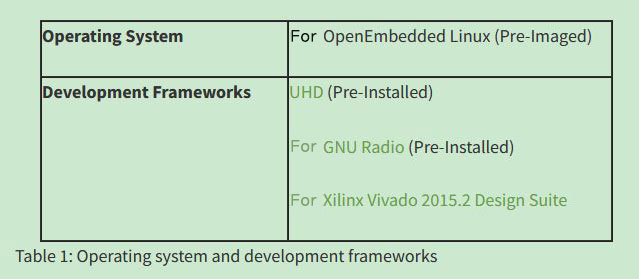

The USRP Embedded Series platform uses the OpenEmbedded framework to create custom Linux distributions tailored to application specific needs. The default operating system is pre-installed with the UHD software API and a variety of third party development tools such as GNU Radio. Support for the RFNoC FPGA development framework enables deterministic computations for real-time and wideband signal processing.


Features:
• Wide frequency range: 70 MHz – 6 GHz
• Up to 56 MHz of instantaneous bandwidth
• 2x2 MIMO transceiver
• RX, TX filter banks
• Zynq 7020 SoC: 7 Series FPGA with Cortex A9 866 MHz dual-core processor for ARM
• Up to 10 MS/s sample data transfer rate to processor for ARM
• Synchronization with PPS time reference
• Integrated GPS receiver
• 9-axis inertial measurement unit
• Rich set of peripherals such as host USB and 1 Gigabit Ethernet
• 133 x 68.2 x 26.4 mm form factor
• OpenEmbedded build framework
• USRP Hardware Driver™ (UHD) open-source software API version 3.8.0 or later
• RF Network on Chip (RFNoC™) FPGA development framework
• GNU Radio support maintained through GR-UHD, an interface to UHD distributed by GNU Radio
• The audio jack feature has been discontinued on the E310

Package Included:
• 1 x USRP E310 Kit

Packaging Details:
• Weight: 1kg

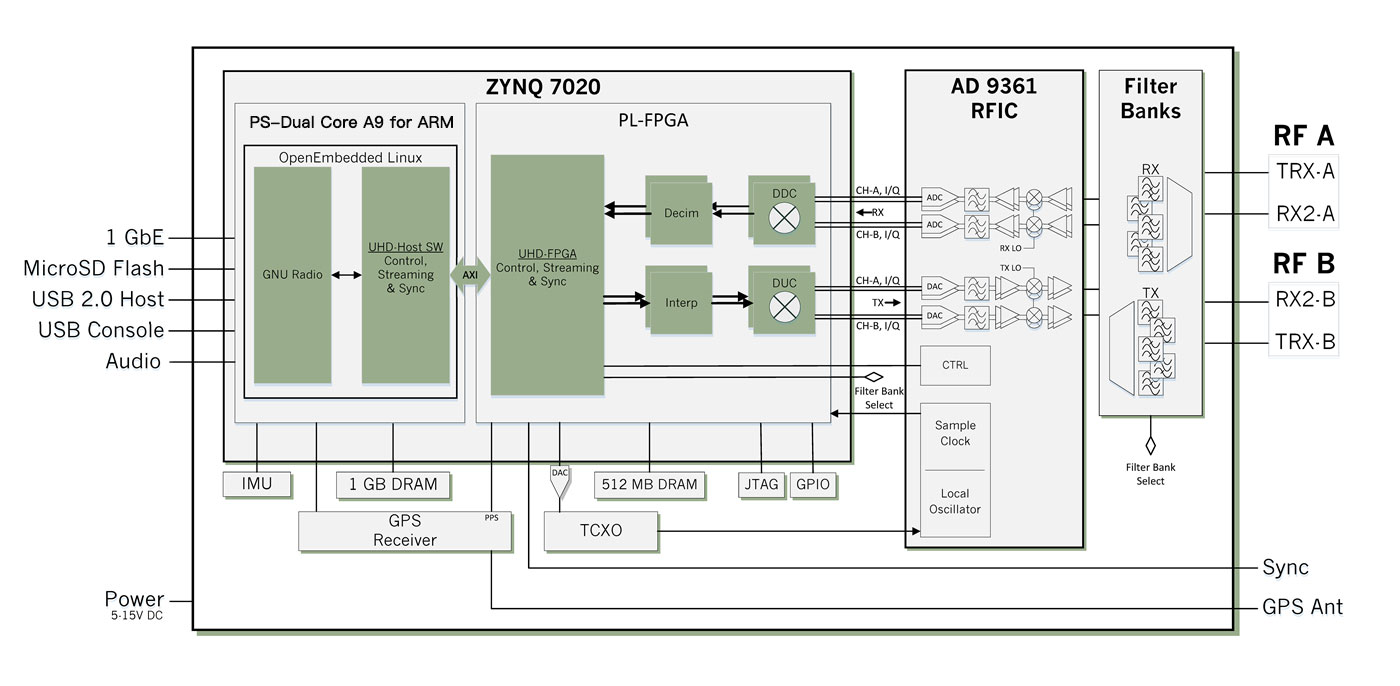

Block Diagram:
This block diagram shows the system architecture of the USRP E310 device
