Overview:
The USRP N300 is a networked software defined radio (SDR) that provides reliability and fault-tolerance for deployment in large-scale and distributed wireless systems. The USRP N300 device simplifies control and management of a network of radios by introducing the unique capability to remotely perform tasks such as updating software, rebooting, factory resetting, self-testing, host PC/for ARM debugging and monitoring system health.

The RF front end uses an AD9371 transceiver, the latest RFIC technology, to provide 2X2 MIMO capability, up to 100 MHz of instantaneous bandwidth, and an extended frequency range from 10 MHz to 6 GHz.

The open-source USRP Hardware Driver (UHD) API and RF Network-on-Chip (RFNoC) FPGA development framework reduce software development effort and integrate with a variety of industry-standard tools such as GNU Radio. Users can rapidly prototype and reliably deploy designs for a variety of SDR applications such as wireless test-beds, remote radio heads, spectrum monitoring, and more. Please note that the USRP N300 is not designed for fast tuning.

Baseband Processor
The baseband processor uses the Zynq-7035 SoC to deliver a large user-programmable FPGA for real-time and low-latency processing and a dual-core CPU (for ARM) for stand-alone operation. Users can deploy applications directly on to the preinstalled embedded Linux operating system or stream samples to a host computer using high-speed interfaces such as 1 Gigabit Ethernet, 10 Gigabit Ethernet, and Aurora over two SFP+ ports.

Synchronization
The USRP N300 has a flexible synchronization architecture with support for traditional SDR synchronization methods such as clock reference, PPS time reference, and GPSDO, which enable implementation of high channel count MIMO systems. In addition, the USRP N300 uniquely features Ethernet-based synchronization using the open-source White Rabbit timing protocol. White Rabbit enables precise baseband synchronization over large distances in GPS-denied environments.

Features:
• Reliable and fault-tolerant deployment
• Remote management capability
• Stand-alone (embedded) or host-based (network streaming) operation
• Fully integrated and assembled (the USRP N300 does not support swappable daughtercards)
• 10 MHz to 6 GHz extended frequency range
• Up to 100 MHz of instantaneous bandwidth per channel
• 2 RX, 2TX in half-wide RU form factor[1]
• RX, TX filter bank
• 16 bit ADC, 14 bit DAC
• Configurable sample rates: 122.88, 125, and 153.6 MS/s
• Zynq-7035 SoC
  Dual-core Cortex-A9 800 MHz CPU for ARM
• Two SFP+ ports (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
• RJ45 (1 GbE) [2]
• Clock reference
• PPS time reference
• Built-in GPSDO
• Ethernet-based synchronization using White Rabbit protocol
• 1 Type A USB host port
• 1 micro-USB port (serial console, JTAG)
• Watchdog timer
• CE certified
• For OpenEmbedded Linux
• USRP Hardware Driver™ (UHD) open-source software API version 3.11.0.1 or later
• RF Network on Chip (RFNoC™) FPGA development framework
• For Vivado 2017.4 Design Suite (license not included)
• GNU Radio support maintained through GR-UHD, an interface to UHD distributed by GNU Radio
• USRP N300 does not contain a Trusted Platform Module

[1] The RF front-end uses an AD9371 transceiver that is independently tunable. The transceiver is capable of 2X2 MIMO operation.

[2] The RJ45 port is used for remote management of the device and does not support IQ streaming.

Package Included:
• 1 x USRP N300
• 1 x RJ45 Ethernet Cable
• 1 x SFP+ to RJ45 Adapter
• 1 x Micro-USB Cable
• 1 x Imaged microSD Card
• 1 x Power Supply

Packaging Details:
• Weight: 1kg

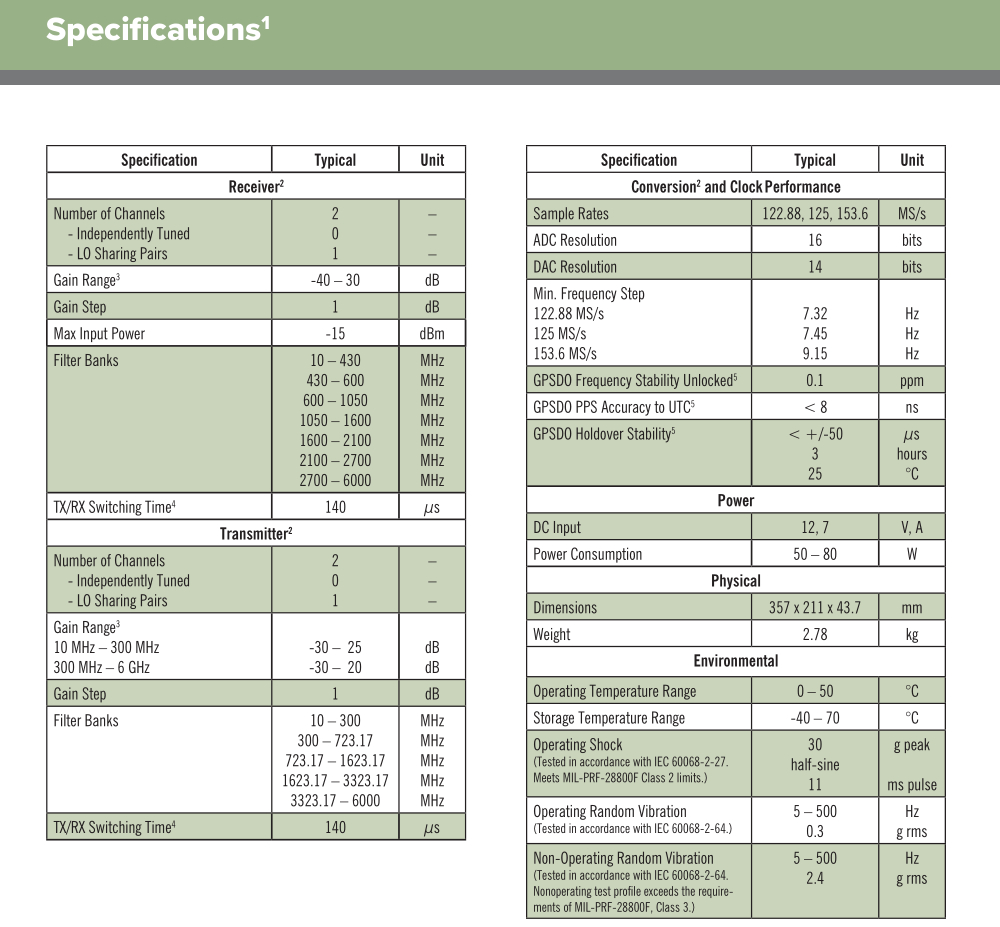

1 All specifications are subject to change without notice. This equipment information is only for product description and is not covered by warranty. Characteristic specifications are unwarranted values that are representative of an average unit operating at room temperature.
2 Additional transceiver and converter specifications can be found on the AD9371 data sheet. Link for http://www.analog.com/media/en/technical-documentation/data-sheets/AD9371.pdf
3 RX and TX path gain does not correlate to UHD gain settings. The received signal amplitude and output power resulting from the gain setting varies over the frequency band and among devices.
4 Switching time is based on non-deterministic software control of the AD9371 transceiver. UHD modifications will be made to directly control the switch component at the TX/RX ports for faster performance.
5 Clock and timing specifications are based on information from component vendors and are not measured. Visit the USRP N310 hardware resources page: link for https://kb.ettus.com/N300/N310.
