Overview:
The USRP N321 is a networked software defined radio that provides reliability and fault-tolerance for deployment in large scale and distributed wireless systems. This is a high performance SDR that uses a unique RF design to provide 2 RX and 2 TX channels in a half-wide RU form factor. Each channel provides up to 200 MHz of instantaneous bandwidth and covers an extended frequency range from 3 MHz to 6 GHz. The baseband processor uses the Zynq-7100 SoC to deliver a large user programmable FPGA for real-time, low latency processing and a dual-core CPU (for ARM) for stand-alone operation. Support for 1 GbE, 10 GbE, and Aurora interfaces over two SFP+ ports and 1 QSFP+ port enables high throughput IQ streaming to a host PC or FPGA co-processor.

A flexible synchronization architecture with support for 10 MHz clock reference, PPS time reference, external TX and RX LO input, and GPSDO enables implementation of phase coherent MIMO test-beds. With the ability to import both TX and RX LOs for any supported frequency above 450 MHz, the USRP N321 provides a path to building large, phase coherent MIMO test-beds for a variety of advanced wireless research topics. In addition, the USRP N321 allows for the export of TX and RX LOs in a Star configuration to multiple other USRP N320 or USRP N321 devices.

The USRP N321 leverages recent software developments in UHD to simplify control and management of multiple devices over the network with the unique capability to remotely administrate tasks such as debugging, updating software, rebooting, resetting to factory state, and monitoring system health.

Trusted Platform Module (TPM)
The USRP N321 includes a Trusted Platform Module to enable security features such as file encryption. Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N321 is available in two variants:

• Standard variant with TPM (PN 786504-01)
• Non-TPM variant (PN 786919-01)

Only the non-TPM variant of the USRP N321 will be available in the People's Republic of China and Hong Kong. USRP N321 with TPM will not be available in France, Israel or Russia until the N321 is registered in those countries.

Features:
• Reliable and fault-tolerant deployment
• Remote management capability
• Stand-alone (embedded) or host-based (network streaming) operation
• Fully integrated and assembled (the USRP N321 does not support swappable daughtercards)
• 3 MHz to 6 GHz extended frequency range
• Up to 200 MHz of instantaneous bandwidth per channel
• 2 RX, 2TX in half-wide RU form factor
• RX, TX filter bank
• 14 bit ADC, 16 bit DAC
• Master clock rates: 200, 245.76, and 250 MS/s
• Zynq-7100 SoC
  Dual-core Cortex-A9 800 MHz CPU for ARM

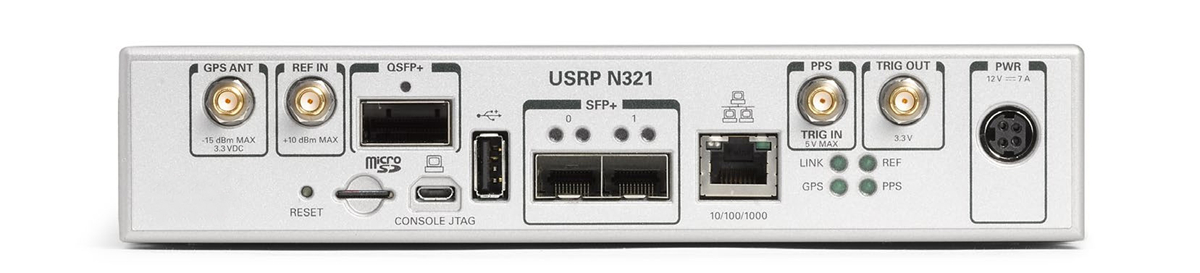

• One QSFP+ port
• Two SFP+ ports (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
• RJ45 (1 GbE) [1]
• Clock reference
• PPS time reference
• External RX, TX LO input ports
• White Rabbit
• Built-in GPSDO
• 1 Type A USB host port
• 1 micro-USB port (serial console, JTAG)
• Trusted Platform Module v1.2 [2]
• Watchdog timer
• For OpenEmbedded Linux
• USRP Hardware Driver™ (UHD) open-source software API version 3.14.0 or later
• RF Network on Chip (RFNoC™) FPGA development framework
• For Vivado 2017.4 Design Suite (license not included)
• GNU Radio support maintained through GR-UHD, an interface to UHD distributed by GNU Radio

[1] The RJ45 port is used for remote management of the device and does not support IQ streaming.

[2] Due to product compliance restrictions on products with TPM (Trusted Platform Module) components to a few countries, the USRP N321 is available in two variants:

• Standard variant with TPM (PN 786504-01)
• Non-TPM variant (PN 786919-01)

Customers in the following regions should select the non-TPM option (PN 786919-01) listed above: People's Republic of China, Hong Kong, Russia, France, and Israel.

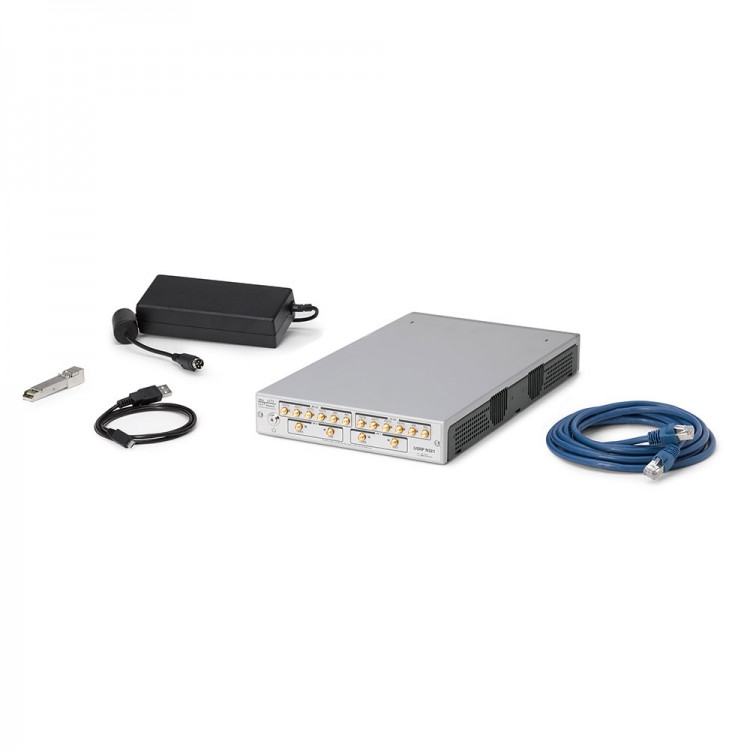

Package Included:
• 1 x USRP N321
• 1 x RJ45 Ethernet Cable
• 1 x SFP+ to RJ45 Adapter
• 1 x Micro-USB cable
• 1 x Imaged microSD Card
• 1 x Power Supply

Recommended Accessories:
• 10 Gigabit Ethernet Card for Desktops
• 10 Gigabit Ethernet Cable with SFP+ termination (1 m)
• Octoclock CDA-2990
• GPIO Expansion Kit
• 3V Active GPS Antenna

Packaging Details:
• Weight: 1kg

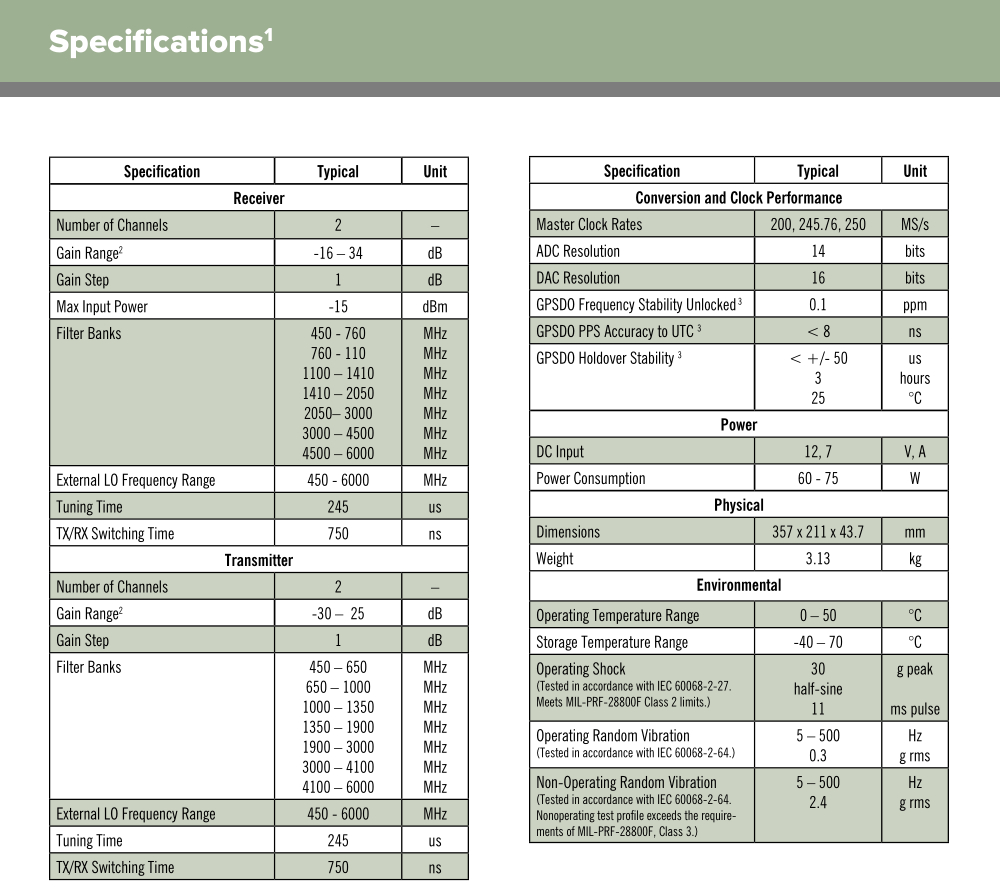

1 All specifications are subject to change without notice. This equipment information is only for product description and is not covered by warranty. Characteristic specifications are unwarranted values that are representative of an average unit operating at room temperature.

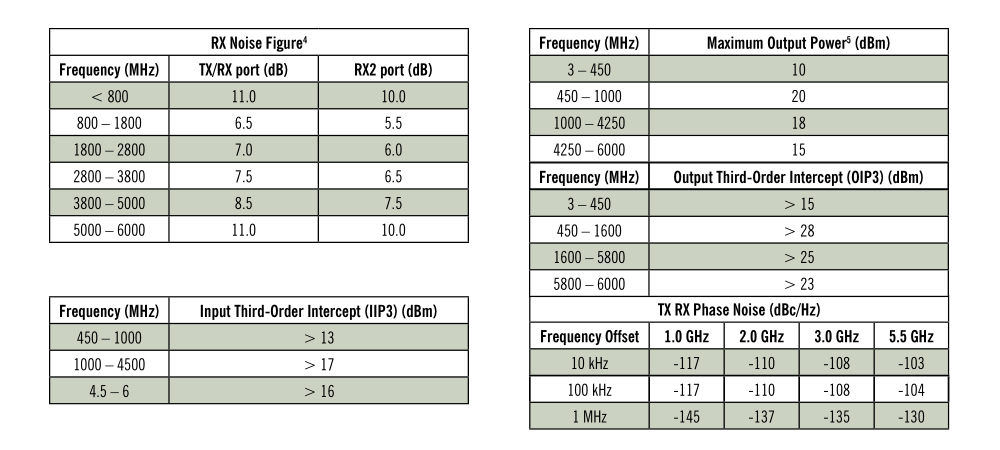

2 RX and TX path gain does not correlate to UHD gain settings. The received signal amplitude and output power resulting from the gain setting varies over the frequency band and among devices.
3 Clock specifications are based on information from the oscillator vendor and are not measured. Visit the USRP N321 hardware resources page. Link for https://kb.ettus.com/N320/N321.

4 Noise figure is measured at maximum gate state on the receive signal path.
5 Maximum output power is achieved when all transmit amplifiers are enabled.
