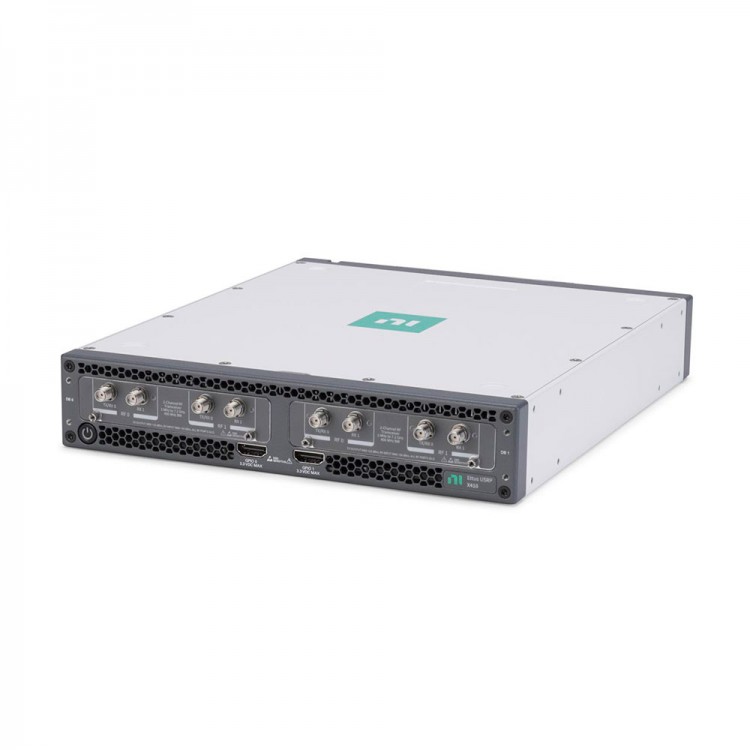

Original USRP X410 1MHz-7.2GHz Software Defined Radio (4 TX/RX Channels 400MHz BW) for NI Ettus

Original USRP X410 1MHz-7.2GHz Software Defined Radio (4 TX/RX Channels 400MHz BW) for NI Ettus

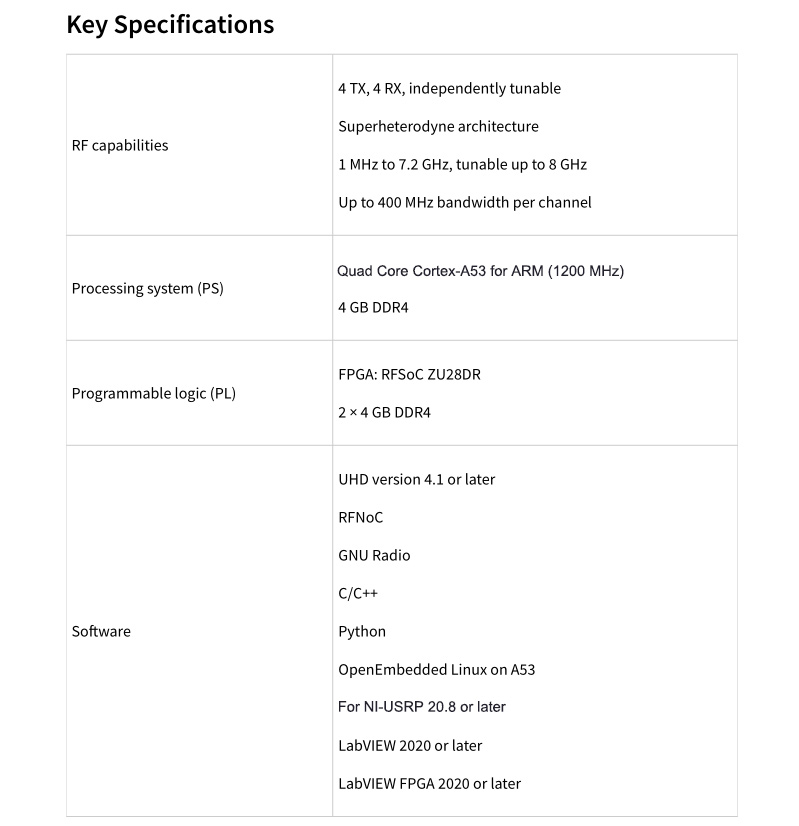

Overview:
The USRP X410 is a high-performance, multi-channel software-defined radio. The SDR is designed for frequencies from 1 MHz to 7.2 GHz, tunable up to 8 GHz and features a two-stage superheterodyne architecture with 4 independent TX and RX channels capable of 400 MHz of instantaneous bandwidth each. Digital interfaces for data offload and control include two QSFP28 interfaces capable of 100 GbE, a PCIe Gen3 x8 [1] interface, as well standard command, control, and debug interfaces: USB-C JTAG, USB-C console, Ethernet 10/100/1000. The USRP X410 is an all-in-one device built on the Zynq Ultrascale + ZU28DR RF System on Chip (RFSoC) with built-in digital up and down conversion and onboard Soft-Decision Forward Error Correction (SD-FEC) IP.

Use the software of your choice
The USRP X410 is fully supported on the popular open-source USRP Hardware Driver (UHD) version 4.1 or later [2]. UHD 4.1 was designed to support the large data movement requirements imposed by the 400 MHz bandwidth and multiple channels onboard. The USRP X410 supports open-source SDR design flows such as C/C++ and GNU Radio, as well as LabVIEW FPGA [1]. Unlike other RFSoC-based systems, the USRP X410 is fully ready to port your previous UHD designs to take advantage of high-performance capabilities with a simple recompile.

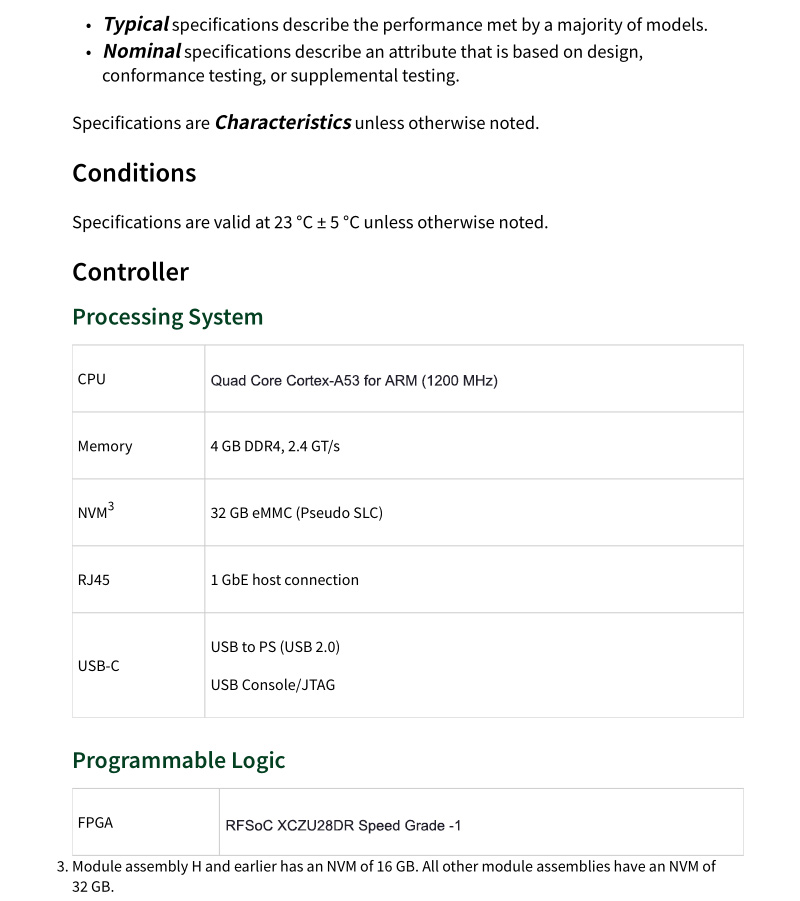

Networked / Stand-Alone Operation
Since the USRP X410 is built on the ZU28DR RF System on Chip (RFSoC) device, it comes equipped with a quad-core Cortex-A53 (for ARM) processing subsystem, clocked up to 1.2 GHz for stand-alone application requirements. Additionally, the RFSoC contains a dual-core Cortex-R5 real-time processing unit (for ARM) for onboard monitoring and control.

Built-In IP
The onboard RFSoC on the USRP X410 contains more than twice the FPGA programmable logic resources than that of the previous generation X-series USRP devices. In addition, the ZU28DR comes with 8 soft-decision forward error correction (SD-FEC) hard IP cores, ideal for wireless communication systems. Given the high-speed nature of the built-in ADCs and DACs to the RFSoC, the Zynq device has 8 digital upconversion and digital down-conversion IP cores allowing for rapid in-band retuning or signal reduction.

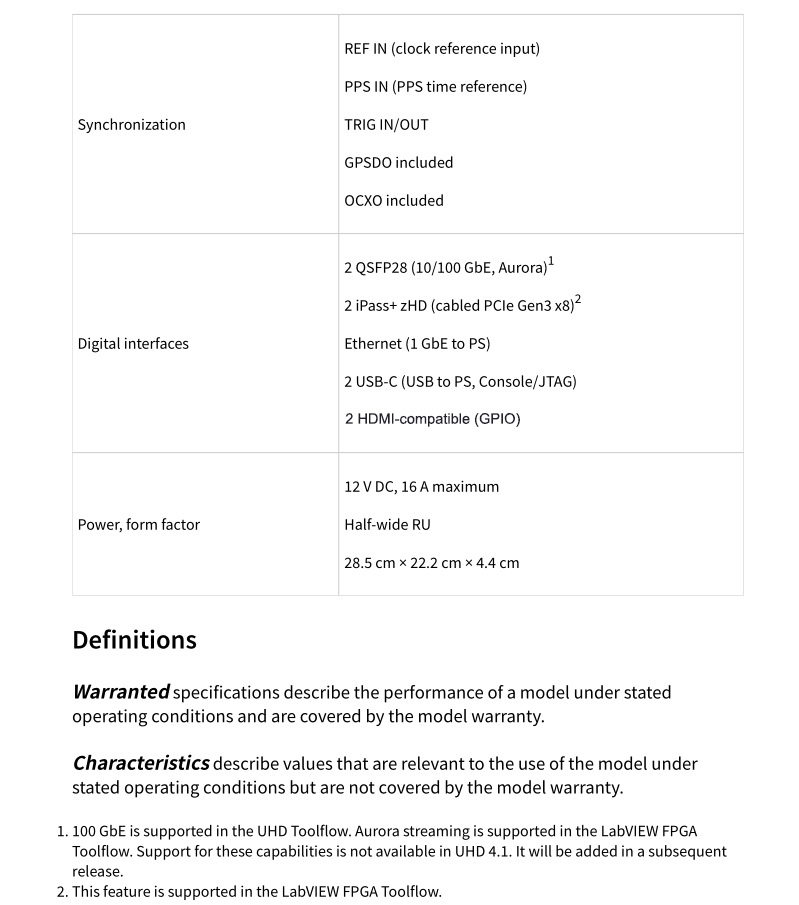

Multi-Radio Synchronization
Multi-radio clocking and timing synchronized operation is possible with the built-in GPSDO (GPS disciplined oscillator) or with the 10 MHz reference and 1 PPS (Pulse Per Second) input signal interfaces. Multi-Radio phase-aligned and phase-coherent operations are not supported, as RF chain LO import and export functionality is not supported on the USRP X410.

[1] PCIe Gen3 x8 is only supported by design flows for NI-USRP and LabVIEW FPGA
[2] 100 GBE supported in UHD 4.2 or later

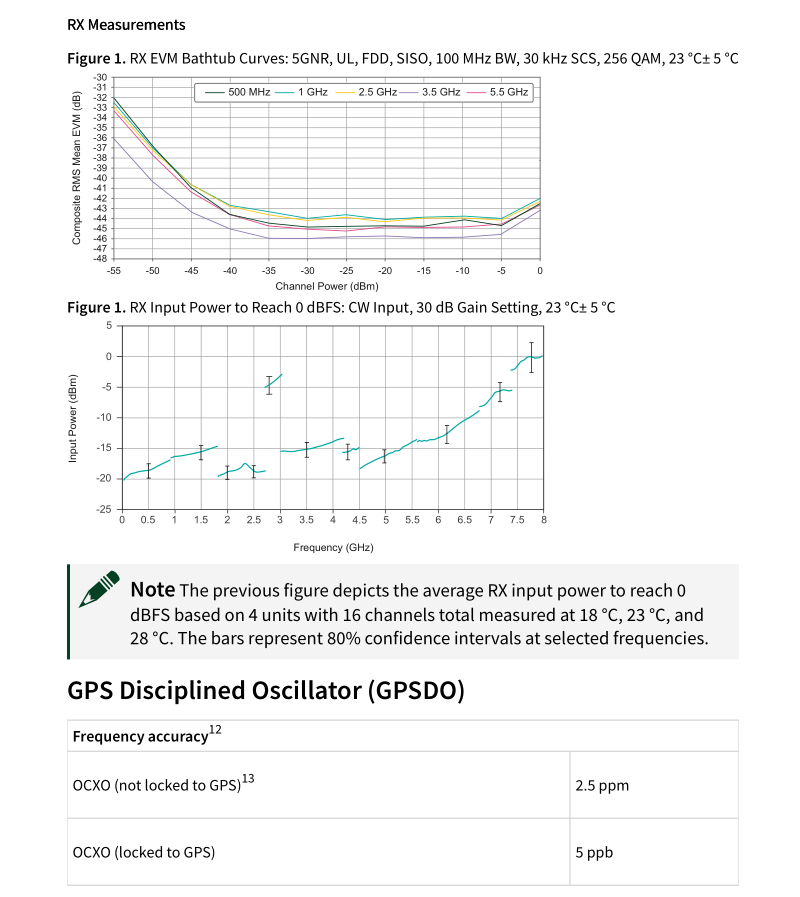

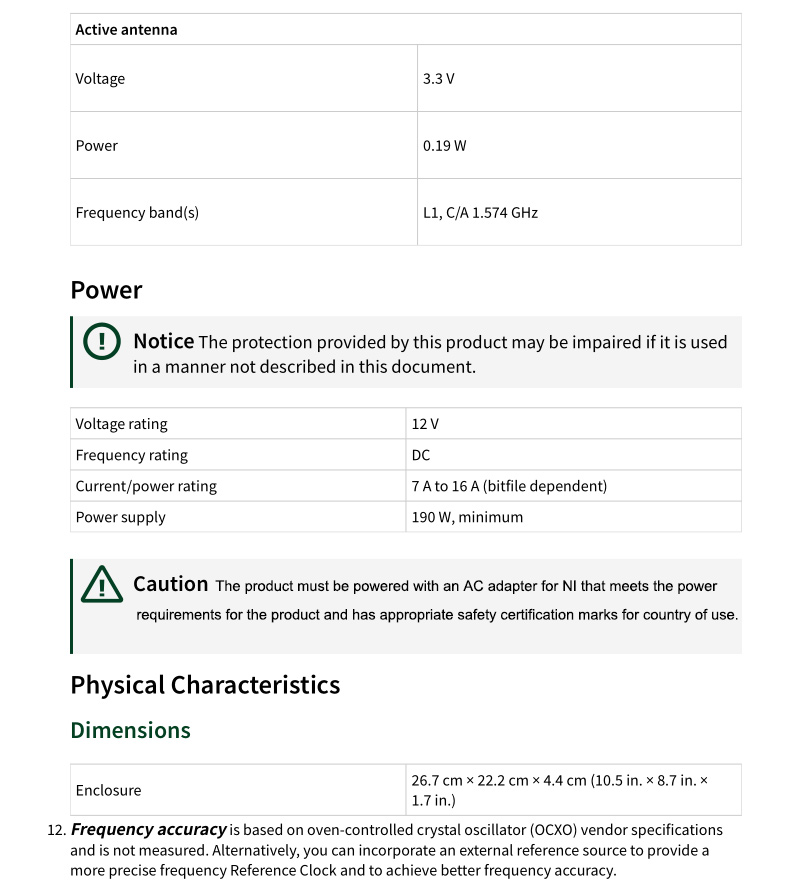

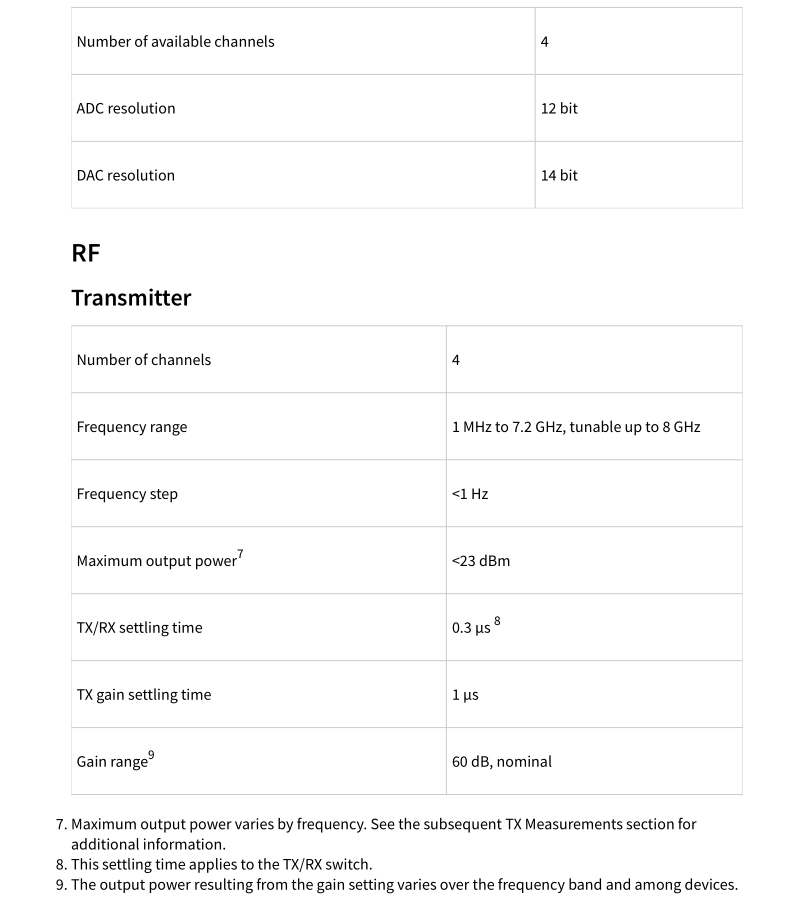

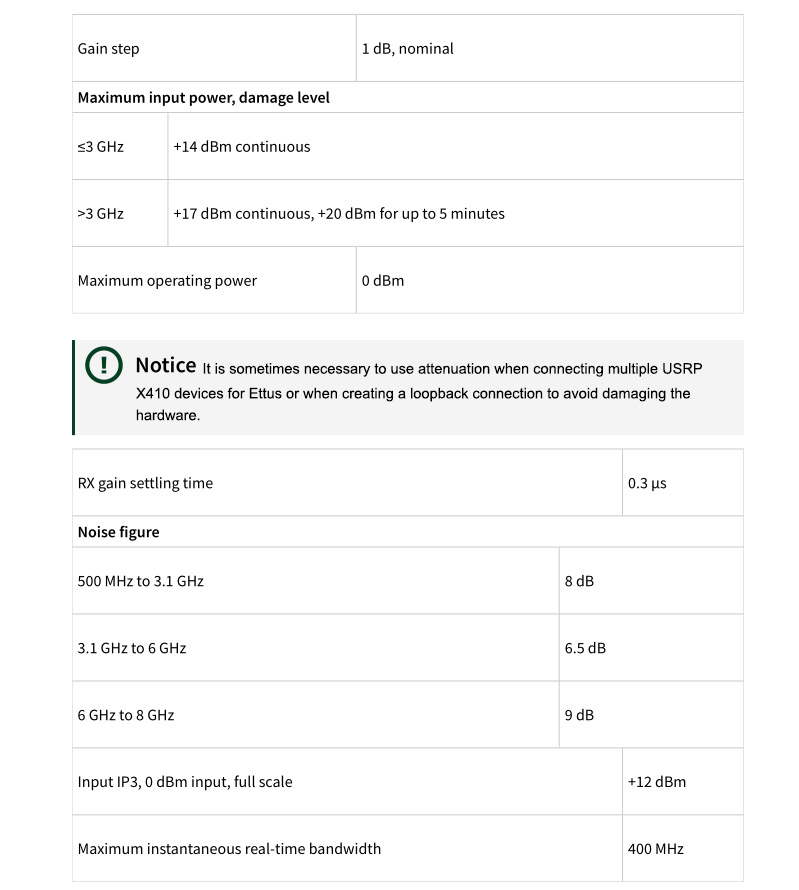

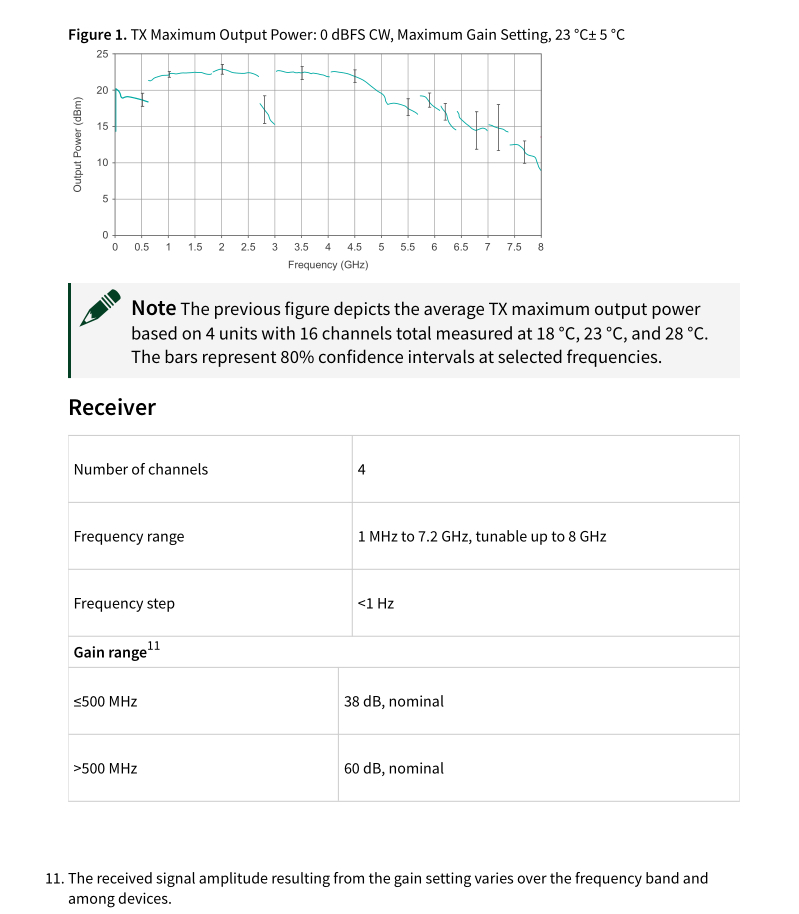

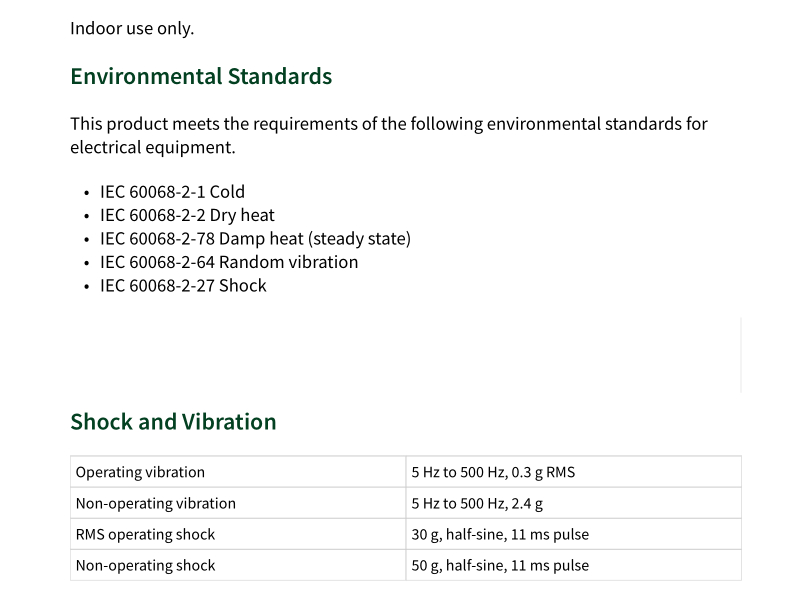

Features:
* High channel density
* Reliable and fault-tolerant deployment
* Stand-alone (embedded) or host-based (network streaming) operation
* Fully integrated and assembled (the USRP X410 does not support swappable daughtercards)
* 1 MHz to 7.2 GHz frequency range (tunable up to 8GHz)
* Up to 400 MHz of instantaneous bandwidth per channel
* 4 RX, 4 TX in half-wide RU form factor
* Zynq-Ultrascale+ ZU28DR RFSoC
   12 bit ADC, 14 bit DAC
    IQ Sample Clock rates up to 500 MS/s
    Onboard SD-FEC, DDC, DUC
    Quad-core Cortex-A53 (for ARM) up to 1.2 GHz CPU
    Dual-core Cortex-A5 MPCore (for ARM) up to 500 MHz

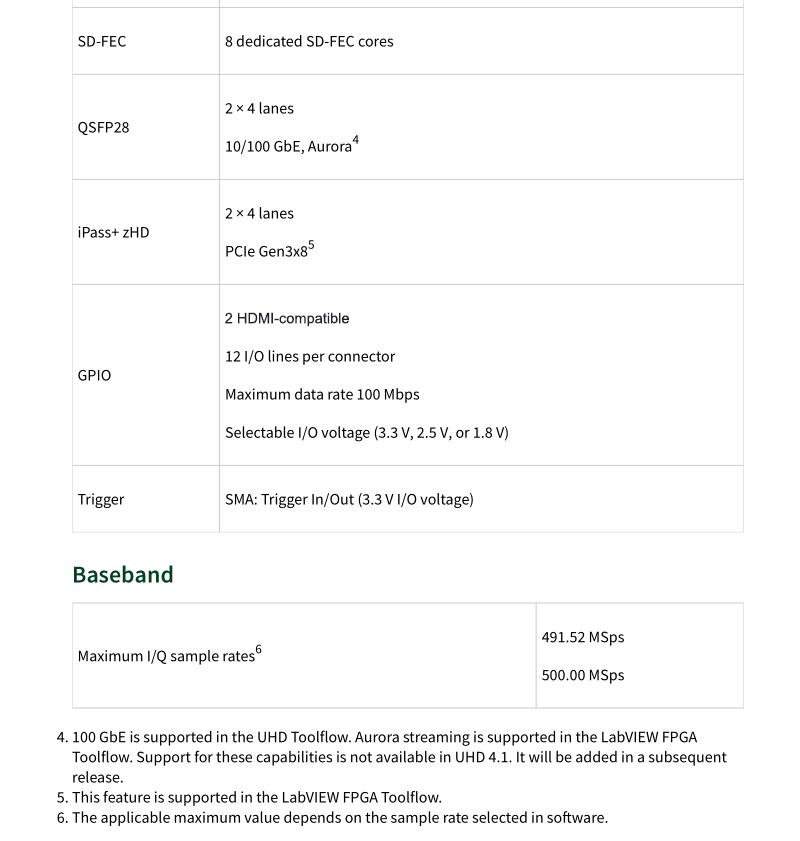

* Two QSFP28 ports (10 Gigabit Ethernet, 100 Gigabit Ethernet, Aurora)
* Two iPass+™ for zHD® Interfaces (PCIe Gen3 x 8)
* RJ45 (1 GbE) [1]
* 10 MHz Clock reference
* PPS time reference
* Trig In/Out Interface
* Built-in GPSDO
* Two FPGA Programmable GPIO Interfaces (HDMI-compatible)
* 1 Type C USB host port
* 1 Type C USB port (serial console, JTAG)
* Watchdog timer
* For OpenEmbedded Linux
* USRP Hardware Driver™ (UHD) open-source software API version 4.1.0 or later
* RF Network on Chip (RFNoC™) FPGA development framework
* For Vivado® 2019.1 Design Suite (license not included)
* GNU Radio support is maintained through GR-UHD, an interface to UHD distributed by GNU Radio

[1] The RJ45 port is used for remote management of the device and does not support IQ streaming.

Package Included:
* 1 x USRP X410 SDR

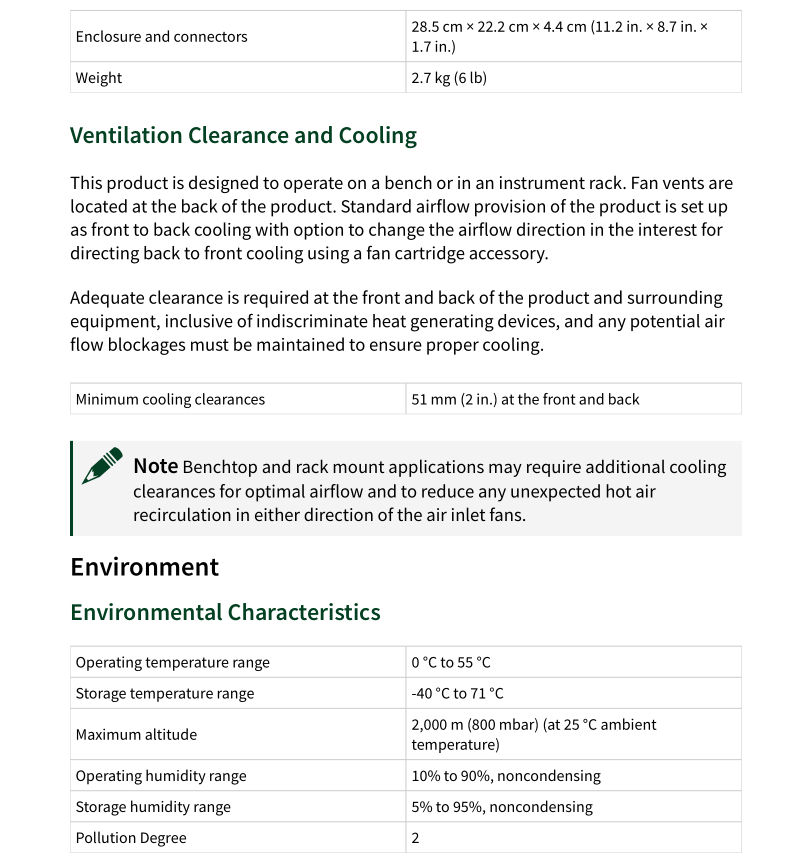

Packaging Details:
* Weight: 3kg
