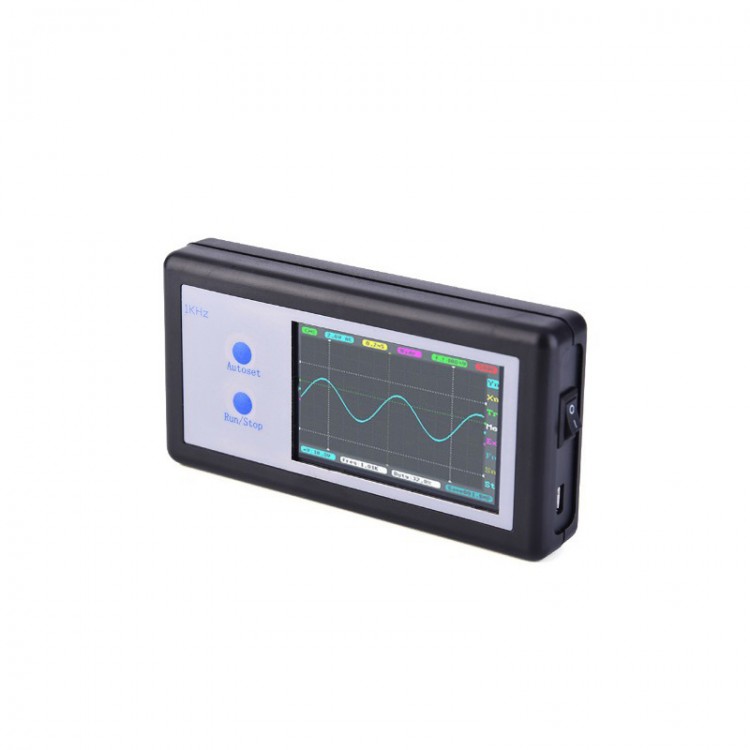

Oscilloscope Portable D602 200 KHz 2 Ch Mini Digital Oscilloscope
Features:
- Big TFT screen, 3.2 inch LCD, 240*400 pixel.
- Bandwidth 200KHz, 1MHz sample rate.
- Double channel input, enable/disable channel.
- Touch panel.
- Small but multi function.
- 12 bit ADC.
- 1Khz square wave output
- Language: Chinese/English select on menu.
Specifications:
- Bandwidth: 200Khz.
- Input voltage with X1:±10V
- Input voltage with X10:±100V
- Input style: AC/DC
- ADC sample rate: 1MHz
- Power: DC9V
- Waveform output: DC5V 1KHz
- Attachment:
20MHz probe 2
Dso601 1
DC9V 500mA 1
- Color optional: Black, White
ON/OFF
Before machine on, make sure power input is DC9V, if right then can on the machine.
Matters need attention:
Machine on later, work interface will display, catch double probe, short probe input with the clamp. Make sure waveform display align with triangle indication, if align then can continue work, else not align check zero.
The probe have a switch on probe head, can switch X1,X10, when on X1, input resistor is 1M ohm, if X10, input resistor is 10M ohm, x1 input cannot over 10V, X10 input cannot over100V.
Zero check
First join probe input with clamp, then select menu to check.
Click the start button.System will auto check value. Please wait system check finish.
Package Included:
1 x Mini Oscilloscope
1 x Oscilloscope Probe
1 x Power Charger
