OTDR Optical Time Domain Reflectometer Optical Power Meter Red Light Source 1310nm & 1550nm CY190Pro
Description:
CY190Pro is a professional OTDR optical time domain reflectometer in the industry. It integrates powerful analysis software, which can quickly detect location, type and loss value of fiber optic cable fault points, and can display and store fiber test curve data. The ultra-short event blind zone is more suitable for fiber-to-the-home environments. It solves the installation and maintenance of optical fibers for the next few hundred meters for users. It comes with an optical power meter and a high-power red light source, which is extremely convenient for users. Output standard SOR format file, can quickly print forms. Widely used in engineering construction, maintenance testing and emergency repair of optical fiber communication systems, development and production testing of optical fiber cables.
Features:
- Dual wavelength 1310nm & 1550nm
- Maximum measurement distance of 60 kilometers, 3 meters ultra-short event dead zone
- More than 500 SOR data format storage
- OTDR, power meter, red light source are highly integrated
- Built-in 10km red light source
- HD color LCD
- Lightweight, small size, light weight and easy to carry
- Reliable performance and good repeatability
- Can easily test optic fiber link node length, loss value and fault location
- The integrated visual fault location system can easily detect the fault location of optical fiber in the blind zone
- It can identify whether there is an optical communication signal in use in the optical fiber
- Long working time, more environmentally friendly and suitable for long field work
- Can accurately measure instrument with FC/PC, FC/APC connectors
- Suitable for fault location in engineering construction and maintenance based on FTTx and access network
- Data output: Connect the instrument and a computer with a USB cable. When the instrument is turned on, the computer will display a removable disk. You can export the data like a USB flash drive without installing a driver.
Product Parameters:
- Model: CY190Pro
- Dynamic range: 24dB/26dB
- Fiber type: single-mode fiber
- Wavelength: 1550nm ± 20nm & 1310nm ± 20nm
- Optical interface: SC/UPC or FC/UPC
- Test range: 60KM
- Pulse width: 10ns ~ 10us
- Attenuation dead zone: 10m
- Event dead zone: 3m
- Sampling point: 40000
- Data storage: 500 (internal)
- Communication interface: USB
- VFL: 650nm, 10mW
- Operating temperature: 0 to 50 ℃
- Storage temperature: -20 to 70 ℃
- Relative humidity: <90% without condensation

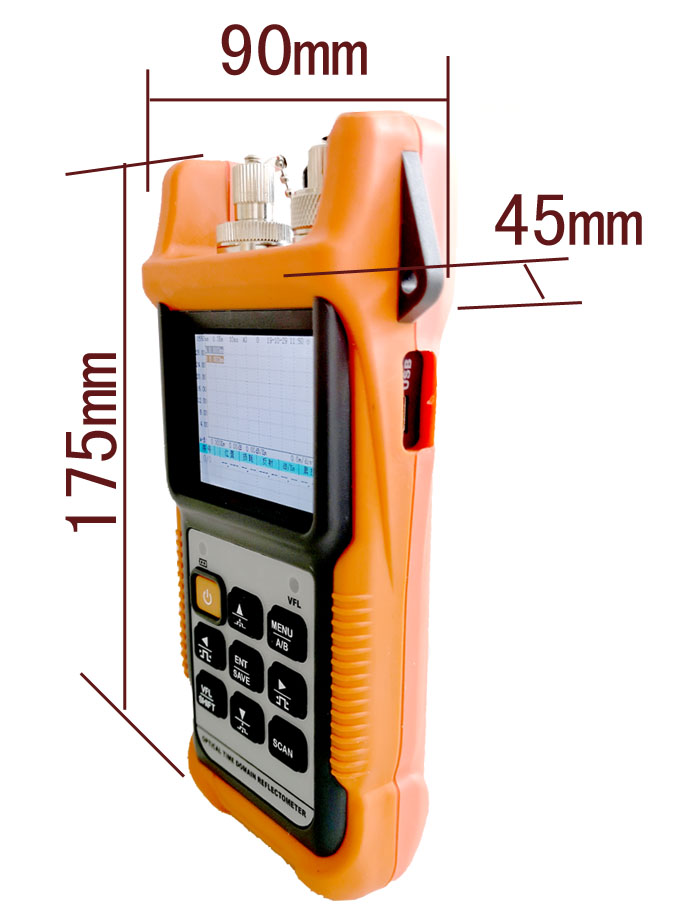

- Product Size: 175 x 90 x 45mm
- Weight: 300g

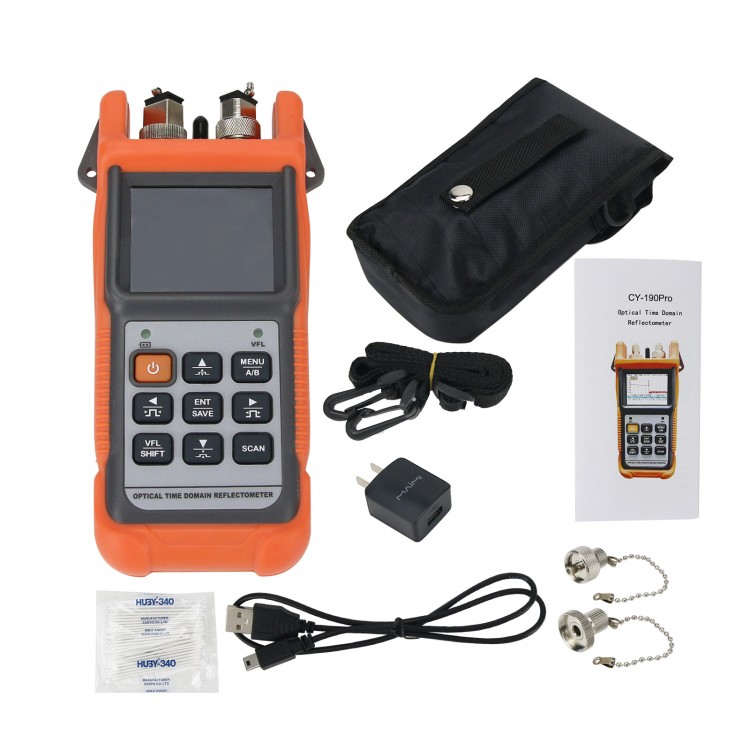

Package Included:
- 1 x Set of OTDR
